Self Recovery PPTC Resettable Electronic Fuse 600v Series Long Lifespan
Self recovery fuse reset PTC electronic element protection 600v series
◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer
insulating material meets UL 94V-0
requirements
◆ ADSL,PBX,MDF,VOIp,IAN,WAN,T1/E1
| P/N | IH, | IT, | Vmax, | Imax, | Vmax, | Time to Trip | Pd typ, | R min | R max | R1 max | |
| (A) | (A) | (V) | (A) | (V) | (A) | (Sec.) | (W) | (Ω) | (Ω) | (Ω) | |
| TRG006 | 0.06 | 0.12 | 250 | 3 | 600 | 0.5 | 2 | 1 | 20 | 35 | 63 |
| TRG011 | 0.11 | 0.22 | 250 | 3 | 600 | 1 | 4 | 1 | 7 | 14 | 26 |
| TRG015 | 0.15 | 0.3 | 250 | 3 | 600 | 1 | 5 | 1 | 6 | 12 | 22 |
| TRG016 | 0.16 | 0.32 | 250 | 3 | 600 | 1 | 7.5 | 1.7 | 4 | 10 | 18 |
| TRG020 | 0.2 | 0.4 | 250 | 3 | 600 | 1 | 15 | 1.7 | 2.5 | 6.5 | 10.5 |
| TRG025 | 0.25 | 0.5 | 250 | 3 | 600 | 1 | 20 | 1.7 | 2 | 4.5 | 7.2 |

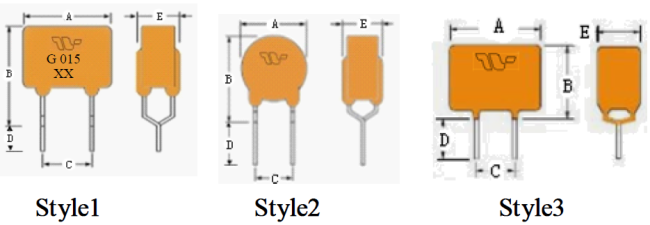

| P/N | A | B | C | D | E | Physical Characteristics | ||
| Max. | Max. | Typ. | Min. | Max. | Style | Lead Φ mm | Material | |
| TRG006 | 8 | 12 | 5.1 | 7.6 | 4.6 | 2 | 0.6 | CU |
| TRG011 | 9 | 13 | 5.1 | 7.6 | 4.6 | 1 | 0.6 | CU |
| TRG015 | 9 | 13 | 5.1 | 7.6 | 4.6 | 1 | 0.6 | CU |
| TRG016 | 9 | 13 | 5.1 | 7.6 | 4.6 | 1 | 0.6 | CU |
| TRG020 | 13 | 18 | 5.1 | 7.6 | 4.6 | 1 | 0.6 | CU |
| TRG025 | 13 | 18 | 5.1 | 7.6 | 4.6 | 1 | 0.6 | CU |
Q: Are you trading company or manufacturer ?
A: We are a fuse and fuse holder factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
