Large Size Automotive Blade Type Fuse 32v 60a Fast Break For Vehicle
Automotive Blade Fuses32V 60A Fast-Break Blade Automotive Fuse Large-Size Vehicle Fuses
| Specification |
MAXI (Silver Plated) |
MAXI Sn (Tin Plated) |
| Interrupting Rating | 1000A @ 32 VDC | 1000A @ 32 VDC |
| Voltage Rating | 32 VDC | 32 VDC |
| Component Level Temperature Range | -40˚C to +125˚C | -40˚C to +105˚C |
| System Level Temperature Range | -40˚C to +105˚C | -40˚C to +85˚C |
| 105°C and 85°C are typical system level temperature requirements.Terminals | Ag plated zinc alloy | Sn plated zinc alloy |
| Housing Material | PA66 | PA66 |
| Complies with | SAE J 1888, SAE 2576, ISO 8820-3:2002(E) | SAE J 1888, SAE 2576, ISO 8820-3:2002(E) |
Ordering Information
| Part Number | Package Size |
| 0299xxx.ZXNV | 1200 |
| 0299xxx.L | 50 |
| 0299xxx.TXN | 10 |
Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) |
| 100 | 360,000 s / – |
| 135 | 60 s / 1,800 s |
| 200 | 2 s / 60 s |
| 350 | 0.20 s / 7 s |
| 600 | 0.040 s / 1 s |
Ratings
| Part Number | Current Rating (A) | Typ. Voltage Drop (mV) | Cold Resistance (mΩ) | I 2 t (A²s) |
| 0299060._ | 60 | 77 | 0.89 | 15300 |

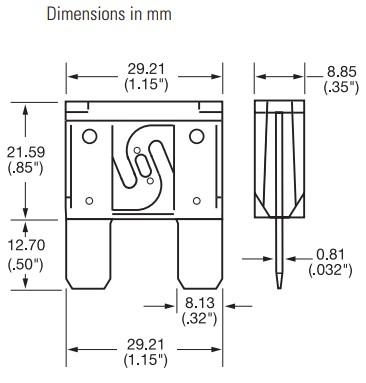

Dimensions
1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the very beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
