PTC A16 Series 10a Resettable Fuse Current Overload Protection Pollymer Material
PTC A16 Series 10a Resettable Fuse Current Overload Protection Pollymer Material
A16 Series Radial Leaded PTCs are designed to provide resettable overcurrent protection serving a wide range of electronics applications. With maximum 16 volts and maximum 100-ampere short circuit rating, they offer an ideal solution for USB protection.
100A short circuit rating
16V Operating voltages
Fast time–to–trip
Meets all USB protection requirements
RoHS compliant, Lead-Free and Halogen-Free*
| Model | V max | Imax | I hold | I trip | Pd | Maximum Time To Trip | Resistance | |||
| Current | Time | Rimin | Rimax | R1max | ||||||
| (Vdc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (Ω) | (Ω) | (Ω) | |
|
A16-030
|
16
|
40
|
0.30
|
0.60
|
0.30
|
1.50
|
1.0
|
0.030
|
0.90
|
1.30
|
|
A16-050
|
16
|
40
|
0.50
|
1.00
|
0.40
|
2.50
|
1.1
|
0.20
|
0.50
|
0.76
|
|
A16-065
|
16
|
40
|
0.65
|
1.30
|
0.60
|
3.25
|
5.0
|
0.12
|
0.48
|
0.65
|
|
A16-075
|
16
|
40
|
0.75
|
1.50
|
0.30
|
3.75
|
4.8
|
0.10
|
0.32
|
0.40
|
| A16-090 | 16 | 40 | 0.90 | 1.80 | 0.60 | 4.50 | 1.2 | 0.09 | 0.18 | 0.25 |
| A16-110 | 16 | 40 | 1.10 | 2.20 | 0.70 | 5.50 | 2.3 | 0.06 | 0.15 | 0.24 |
|
A16-120
|
16
|
40
|
1.20
|
2.40
|
0.60
|
6.00
|
5.5
|
0.05
|
0.18
|
0.24
|
|
A16-135
|
16
|
40
|
1.35
|
2.70
|
0.80
|
6.75
|
4.5
|
0.04
|
0.13
|
0.19
|
|
A16-160
|
16
|
40
|
1.60
|
3.20
|
0.90
|
8.00
|
9.0
|
0.03
|
0.11
|
0.20
|
|
A16-185
|
16
|
40
|
1.85
|
3.70
|
1.00
|
9.25
|
10.0
|
0.03
|
0.10
|
0.16
|
| A16-250 | 16 | 40 | 2.50 | 5.00 | 1.30 | 12.50 | 10.0 | 0.02 | 0.07 | 0.12 |
| A16-300 | 16 | 40 | 3.00 | 6.00 | 2.30 | 15.00 | 2.0 | 0.02 | 0.07 | 0.11 |
| A16-400 | 16 | 40 | 4.00 | 8.00 | 2.40 | 20.00 | 3.5 | 0.02 | 0.04 | 0.08 |
| A16-500 | 16 | 40 | 5.00 | 10.0 | 2.60 | 25.00 | 3.6 | 0.014 | 0.025 | 0.033 |
| A16-600 | 16 | 40 | 6.00 | 12.0 | 2.80 | 30.00 | 5.8 | 0.001 | 0.021 | 0.031 |
| A16-700 | 16 | 40 | 7.00 | 14.0 | 3.00 | 35.00 | 8.0 | 0.008 | 0.015 | 0.022 |
| A16-800 | 16 | 40 | 8.00 | 16.0 | 3.00 | 40.00 | 9.0 | 0.006 | 0.013 | 0.021 |
| A16-900 | 16 | 40 | 9.00 | 18.0 | 3.30 | 45.00 | 12.0 | 0.004 | 0.012 | 0.018 |
| A16-1000 | 16 | 40 | 10.00 | 20.0 | 3.60 | 50.00 | 12.5 | 0.004 | 0.011 | 0.015 |
| A16-1100 | 16 | 40 | 11.00 | 22.0 | 3.70 | 55.00 | 13.5 | 0.003 | 0.009 | 0.013 |
| A16-1200 | 16 | 40 | 12.00 | 24.0 | 4.20 | 60.00 | 16.0 | 0.003 | 0.008 | 0.012 |
|
A16-1400
|
16
|
100
|
14.00
|
28.0 |
4.60
|
70.00
|
20.0
|
0.003
|
0.007
|
0.011
|

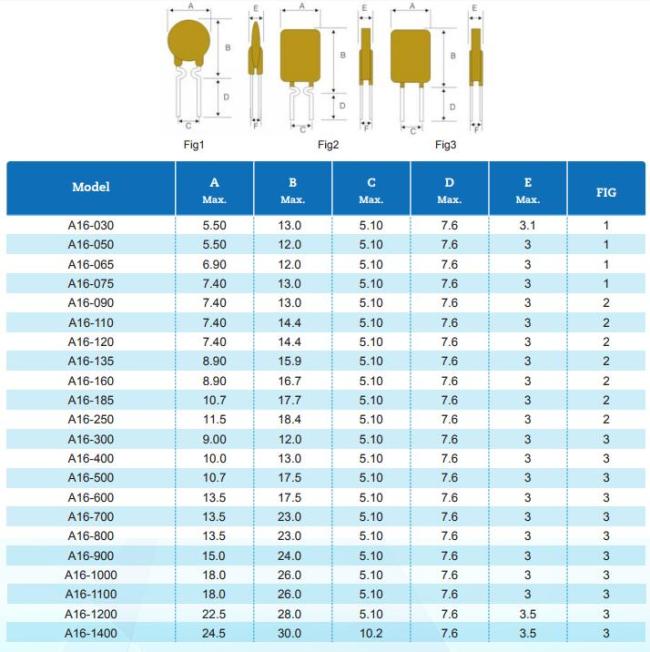

I hold = Hold Current. Maximum current device will not trip in 25°C still air.
I trip = Trip Current. Minimum current at which the device will always trip in 25°C still air.
V max = Maximum operating voltage device can withstand without damage at rated current (Imax).
I max = Maximum fault current device can withstand without damage at rated voltage (V max).
Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage.
Ri min/max = Minimum/Maximum device resistance prior to tripping at 25°C.
R1max = Maximum device resistance is measured one hour post reflow.
CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame.
