High Current Circuit Protection Mini Auto Fuse MEGA 32V Series Automotive Bolted Fuse
High Current Circuit Protection Mini Auto Fuse , MEGA 32V Series Automotive Bolted Fuse
Interrupting Rating: 2000A @ 32 VDC
Voltage Rating: 32 VDC
Operating Temperature Range: -40˚C to + 125˚C
Housing Material: PPA-GF30FR
Terminals: Copper

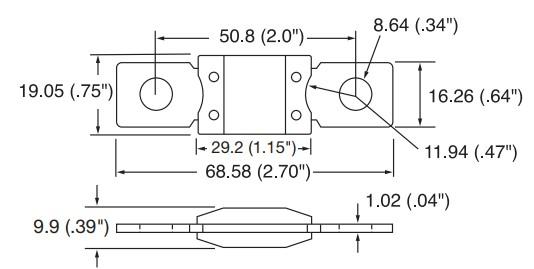

M8 bolts holes
Mounting Torque: 12-18 Nm M8
Complies with: ISO 8820-5 ,UL 248 Special Purpose Fuses
| % of Rating | Opening Time Min / Max (s) |
| 80A-175A | |
| 75 | – / – |
| 100 | 14,400 s / – |
| 135 | 120 s / 1800 s |
| 200 | 1 s / 15 s |
| 350 | 0.300 s / 5 s |
| 500 | – / – |
| 600 | 0.100 s / 1 s |
| Part Number |
Current Rating |
Typ. Voltage Drop |
I2t |
| 0298080 | 80 | 87 | 21500 |
| 0298100 | 100 | 87 | 31100 |
| 0298125 | 125 | 80 | 57800 |
| 0298150 | 150 | 92 | 100000 |
| 0298175 | 175 | 62 | 168000 |
Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately
but please send the broken product to us .you don't have to worry about the carriage charge we will
pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most
competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details
drawings so that we can provide us our professional & best service to you.
