881 Series 75V Electronic Circuit Board Fuses High Current Subminiature Chip
881 Series 75V Electronic Circuit Board Fuses High Current Subminiature Chip
This high-current SMD fuse is a small, square, surface mount fuse that is designed as supplemental overcurrent protection for high-current circuits in various applications.
Features

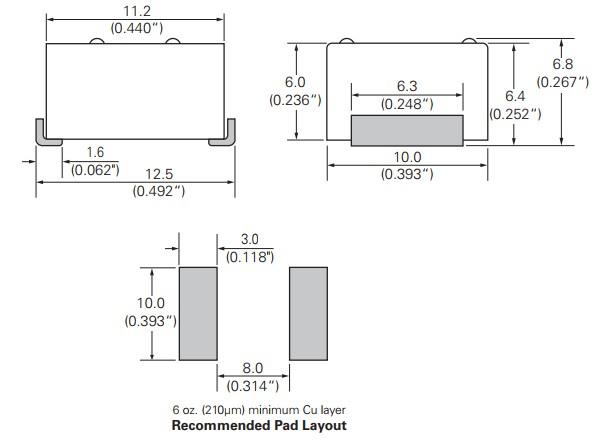

• Surface mount package: 12.5mm x 10.0mm
• Suitable for reflow soldering • 60A to 100A ratings
• Lead-free and RoHS compliant
Applications
• Blade Servers • Routers • High-power Battery Systems • Power Factor Correction (PFC) in high wattage power supplies • Power Distribution Units (PDUs)
| % of Ampere Rating | Opening Time |
| 100% | 1 Hour, Min. |
| 200% | 60 Seconds, Max |
| Ampere Rating | Amp Code | Max Voltage Rating | Interrupting Rating | Nominal Cold Resistance | Nominal Voltage Drop * | Nominal Melting ** |
| 60 | 60 | 75Vdc | 1500A @75Vdc | 0.81 | 75 | 1050 |
| 70 | 70 | 0.74 | 85 | 1250 | ||
| 80 | 80 | 0.56 | 80 | 3300 | ||
| 90 | 90 | 0.54 | 85 | 4300 | ||
| 100 | 100 | 0.45 | 80 | 6900 |
| Ampere Rating | Typical Case Temperature Rise (°C) * | ||
| @ 50%In | @ 75%In | @ 100%In | |
| 60 | 14 | 35 | 60 |
| 70 | 15 | 37 | 70 |
| 80 | 16 | 39 | 85 |
| 90 | 19 | 49 | 105 |
| 100 | 23 | 53 | 120 |
