GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor
GL Series - Subminiature Glass Probe Thermistor (0.070" Diameter) NTC Thermal Resistor
High temperature glass probe thermistors feature superior long-term stability and fast thermal response. Their small size and glass encapsulation makes them especially suitable for temperature measurement and control where space is limited and where extreme temperatures, corrosive atmospheres and/or harsh environments are encountered. glass probe thermistors have a wide range of applications within the HVAC/R, Industrial, Medical, Consumer Electronics, Alternative Energy, Telecommunications, Medical and Environmental Systems and Controls markets.
Options
• Non-standard resistance values and tolerances
• Two glass body lengths (.500” and 1.000”)
Features
• High temperature capability to +300°C
• High reliability
• Excellent long-term stability
• Solderable lead wires
• Fast thermal response time

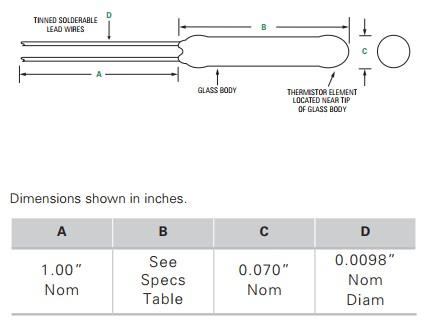

| Part Number | Resistance Ohms @25°C | *Resistance Tol. ± % @ 25°C | R-T Curve | Temperature Coefficient (% / °C) @ 25°C | Beta (K) 25-85°C | Dim “B” | Temperature Rating (°C) |
| GL102E5J | 1000 | 5 | E | -3.67 | 3348 | 0.5 0 0” | -55 to +300 |
| GL102E9J | 1000 | 5 | E | -3.67 | 3348 | 1.000” | -55 to +300 |
| GL122E5J | 1200 | 5 | E | -3.67 | 3348 | 0.500” | -55 to +300 |
| GL122E9J | 1200 | 5 | E | -3.86 | 3348 | 1.000” | -55 to +300 |
| GL202F5J | 2000 | 5 | F | -3.86 | 3499 | 0.500” | -55 to +300 |
| GL202F9J | 2000 | 5 | F | -3.86 | 3499 | 1.000” | -55 to +300 |
| GL502F5J | 5000 | 5 | F | -3.86 | 3499 | 0.500” | -55 to +300 |
| GL502F9J | 5000 | 5 | F | -3.86 | 3499 | 1.000” | -55 to +300 |
| GL103J5J | 10000 | 5 | J | -4.4 | 3977 | 0.500” | -55 to +300 |
| GL103J9J | 10000 | 5 | J | -4.4 | 3977 | 1.000” | -55 to +300 |
| GL104R5J | 100000 | 5 | R | -4.68 | 4263 | 0.500” | -55 to +300 |
| GL104R9J | 100000 | 5 | R | -4.68 | 4263 | 1.000” | -55 to +300 |
1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c
like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the very
beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most
competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details
drawings so that we can provide us our professional & best service to you.
