250VAC Ceramic Tube Time Lag Miniature Fuse For Lighting Industry
Operating Temperature -55°C To +125°C Time-Lag Miniature Fuse
Products Details Description
| Item | 1A 1.25A 2A 3.15A 6.3A 10A 125V 250V Lead Wire Ceramic Fuse |
| Voltage | 125V 250V |
| Aperes | 100mA, 125mA,160mA, 200mA, 250mA, 315mA, 400mA, 500mA, 630mA, 800mA, 1A, 1.25A 1.6A, 2A 2.5A,3.15A 4A, 5A, 6.3A, 8A, 10A, 12.5A, 16A, 20A, 25A, 31.5A |
| Color | white |
| Material | Body: Ceramic; Wire:Tin-Plated Copper; Fuse element: Alloy; Cap: Nickel Plated Brass |
| Accessories | cap, lead wire. |
| Application | industrial of Lighting, Power supply and Adapter applications,Switching Power Supply, charger, Transformers, Computers, Telephones, Household Household Appliances, Communications Products, Toy Products,etc. |
| Certification | CCC, VDE, PSE |
| Warranty | 1 years |
| Service | OEM & ODM can be accepted |
| Packing | 200pcs/bag, then into paper carton |
| MOQ | 500 piece |
| Loading Ports | Dongguan China |

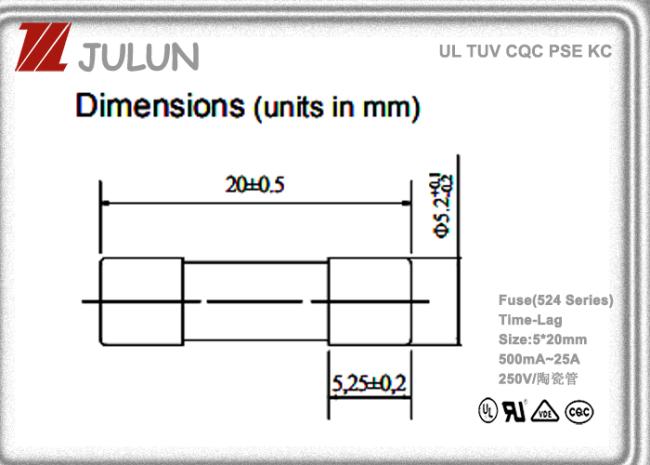

Main Characteristics
Cartridge miniature fuse; Time-Lag (T)
Materials
Tube: Ceramic
End caps: Nickel-plated brass Axial leads:Nickel-plated caps
Tin-plated copper wires
Operating Temperature
-55°C to +125°C Storage Conditions
+10°C to +60°C
Relative humidity:≤75% yearly average without dew, maximum 30 days at 95%
Vibration Resistance
24 cycles at 15 min. each (60068-6) 10-60Hz at 0.75mm amplitude 60-2000Hz at 10g acceleration
Soldering Parameters
260°C.≤5 sec (Wave Soldering) 350°C.≤3 sec (Hand Soldering) Soldering Peak:
260°C. 10 sec. (IEC 60068-20)
Time vs Current Characteristics: UL 248-14
| Rated Current | 100% | 110% | 115% | 135% | 200% | 210% | 275% | 400% | 1000% |
| 500mA~20A | >4h | / | / | <1h | <10s | / | / | / | / |
| 12.5A/16A(IEC) | / | / | >1h | / | / | <60s | 20ms~3s | 8ms~1s | ≤150ms |
| 15A/20A/25A(PSE) | / | >1.5h | / | <1h | <120s | / | / | / | / |
| Amp Code |
Rated Current |
Max. Voltage |
Nominal Melting I²t(A²sec) |
Breaking Capacity |
| 0500 | 500mA | 250V AC | 0.49 | 10kA@125V AC 35A@250V AC 50-60Hz Cosφ=0.7-0.8 |
| 0630 | 630mA | 0.81 | ||
| 0800 | 800mA | 1.21 | ||
| 1100 | 1.00A | 1.00 | 10kA@125V AC 100A@250V AC 50-60Hz Cosφ=0.7-0.8 |
|
| 1125 | 1.25A | 1.44 | ||
| 1150 | 1.50A | 2.1 | ||
| 1160 | 1.60A | 4.84 | ||
| 1200 | 2.00A | 7.29 | ||
| 1250 | 2.50A | 11.2 | ||
| 1300 | 3.00A | 24 | ||
| 1315 | 3.15A | 26.1 | 10kA@125V AC 200A@250V AC 50-60Hz Cosφ=0.7-0.8 |
|
| 1350 | 3.50A | 34.81 | ||
| 1400 | 4.00A | 49 | ||
| 1500 | 5.00A | 81 | ||
| 1600 | 6.00A | 121 | ||
| 1700 | 7.00A | 156 | ||
| 1800 | 8.00A | 219 | ||
| 2100 | 10.00A | 324 | ||
| 2120 | 12.00A | 729 | ||
| 2125 | 12.50A | 767 | ||
| 2150 | 15.00A | 1936 | ||
| 2160 | 16.00A | 2025 | ||
| 2200 | 20.00A | 3600 |
Note: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)
(2) The cURus and cULus certification by 125V and 250V; the CQC certification by 250V;
the PSE certification by 125V
