Wound Resistance RF Fuse Resistance NKNP Anti Surge Wire Wound Resistance Sourc0207 0309 2.2R 3.3R 10R 4.7R 100R No Lead
Price:
Negotiable
MOQ:
1000
Delivery Time:
Negotiable
Brand:
JULUN
Product Description
Wound resistance RF fuse resistance NKNP anti surge wire wound resistance sourc0207 0309 2.2R 3.3R 10R 4.7R 100R No lead
Applicable Scope
Applicable Scope: This benchmark is the supply of chargers, power supply, and other
energy-saving lamps used in the coating are incombustibility wound resistor type of specifications
Rated power
Rated power is the value of Max load voltage specified at the ambient temperature of 70℃ and shall
meet the functions of electrical and mechanical performance. When the ambient temp.surpasses
above Mentioned temperature. The value declines as following
![]()
REQUIRENTS IN USE
REQUIRENTS IN USE
IN THE HIGH HUMIDITY SITUATION, IT WILL MAKE THE SOLDER ABILITY
WORST. PLEASE PRESERVE THE RESISTORS IN 40℃ ,70 RH BELOW
PLEASE DON`T OPEN THE MINE PACKAGE WHEN YOU PRESERVE IT

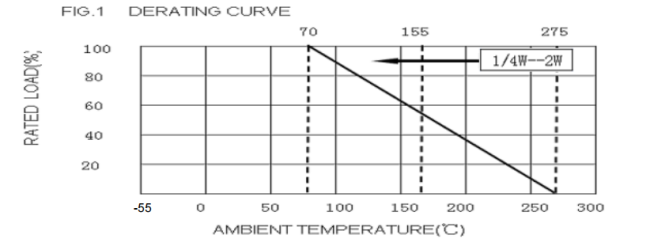

WHEN IN THE HIGH TEMPERATURE SITUATION, PLEASE ACCORD TO THE
PICTURE OF “POWER DERATING CURVE” REDUCE THE USE OF POWER RATING
YOU SHOULD AVOID THE CONNECTOR OF RESISATNCE REPLACED BY LATGE
VOLTAGE AND POWER
AS THE PAINT IS NOT SUBJECT TO EXTERNAL SHOCKS INCOMBUSTIBILITY LESS,
IT SHOULD BE DISPOSED OF IN A VARIETY OF REDUCING THE BODY'S RESISTANCE
COLLISION
