PV-NH series PV DC screen fuse

The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.

Product Presentation

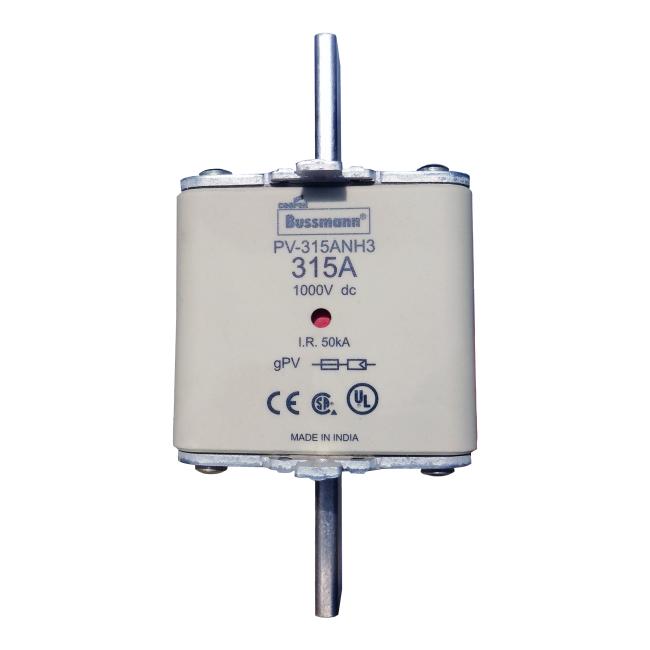

Stock Model:PV-160ANH1;PV-200ANH1;PV-32ANH1;PV-63ANH1;PV-80ANH1;PV-315ANH3
Rated voltage:1000Vdc
Rated current:50 - 160A
Rated breaking capacity:50kA
Package:10pcs/box
Time constant:1-3ms

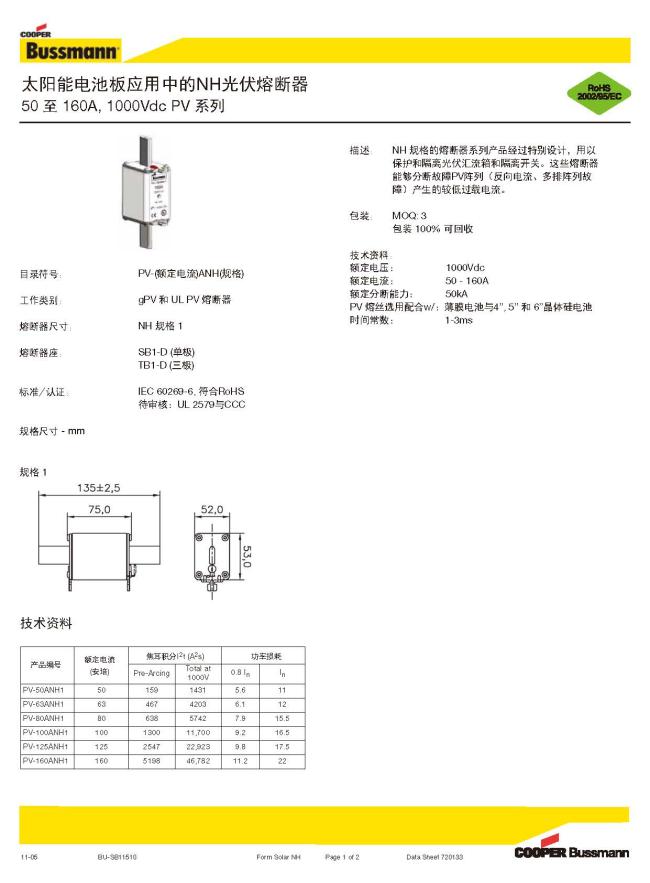

The NH size fuse series is specially designed to protect and isolate PV busbars and disconnect switches. These fuses are capable of breaking the lower overload currents generated by faulty PV arrays (reverse current, multi-row array failure).
PV fuses are selected to match w/: thin film cells and 4", 5" and 6" crystalline silicon cells
