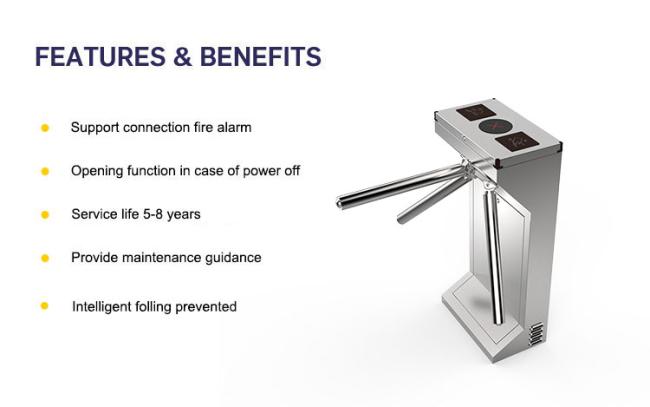

Three Arm Tripod Turnstile Barrier Gate , Pedestrian Waist High Turnstile
Features and Benefits
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
• Display has been in use for statistics and numbers
• A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.
Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer
Product description for TCPIP And RFID Support Tripod Turnstile For University Dormitory
| Technical Data | Unit | EL128 |
| Passage width | mm | <550 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 480X280X960 |
| Net weight including bars | Kg | 33 |
