Automatic Fingerprint Pedestrian Flap Barrier Turnstile Waist High PC Acrylic
240V Temperature Detection and Alcohol Disinfection and Face Recognition Flap Barrier Turnstile against Corona Virus
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
| Model Number: | D242 |

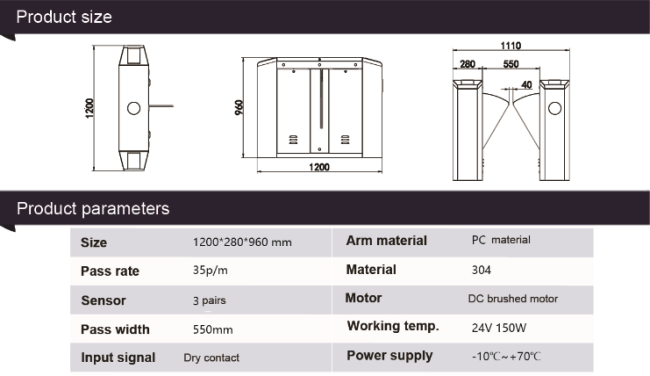

| Product Size: | 1200*280*960mm |
| Pass Width: | <=550mm |
| Net Weight: | 80kg |
| Thickness: | 1.0mm |
| Material: | SUS304D,Hairline 400# |
| Top cover Material: | 1.0mm SUS304 |
| Arm Material: | PC |
| Driver: | Brushed Motor+Germany Belt |
| Infrared Sensor: | 3 pairs |
| Pass rate: | 30-35p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000 cycles |
OPERATING MODES:
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
Application

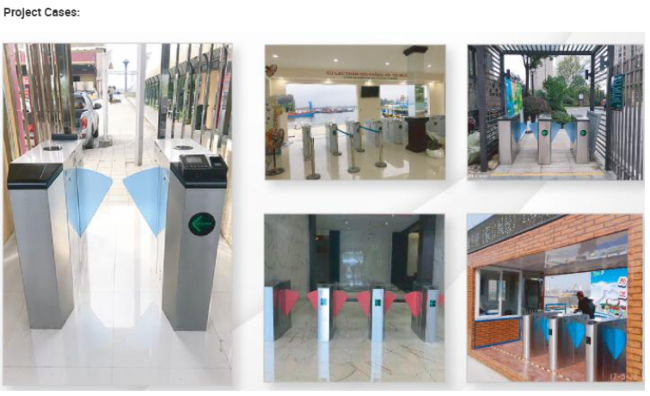

High class communities, intelligent buildings, hotels, subway station, metro station, etc.
