Miniature one way clutch OWC1019GXRZ Powder metallurgy one way bearing
Introduction:
Powder metallurgy one-way bearing adopts the technology of forming and sintering to make metal powder (or mixture of metal powder and non-metal powder) into products. Based on the study of the characteristics of the powder and the process change characteristics, the corresponding technological process is adopted to change the shape, performance and their organizational structure of the powder to become the bearing products that adapt to different needs.
Features of Powder Metallurgy Bearings
OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,andmake the structure more compact as well as higher performance.
make the structure more compact as well as higher performance.
Material of Powder Metallurgy Bearings
Outer ring: is made by sintered metal F4 Powder Metallurgy
Spring: is made by stainless steel
Needle:Gcr15
| Product name | Powder Metallurgy one way Bearings |
| Model | OWC1019GXLZ (Left direction) |
| Material | SMf 5030,F4 Powder Metallurgy |
| Precision | P6 |
| Shaft diameter | 10mm |
| Outer diameter | 19mm |
| Weight | 8.5g |
| Application | Fishing machinery, ATM, Counting machine, Printer, copier, etc |
| Operating Characteristics | High tempeture |

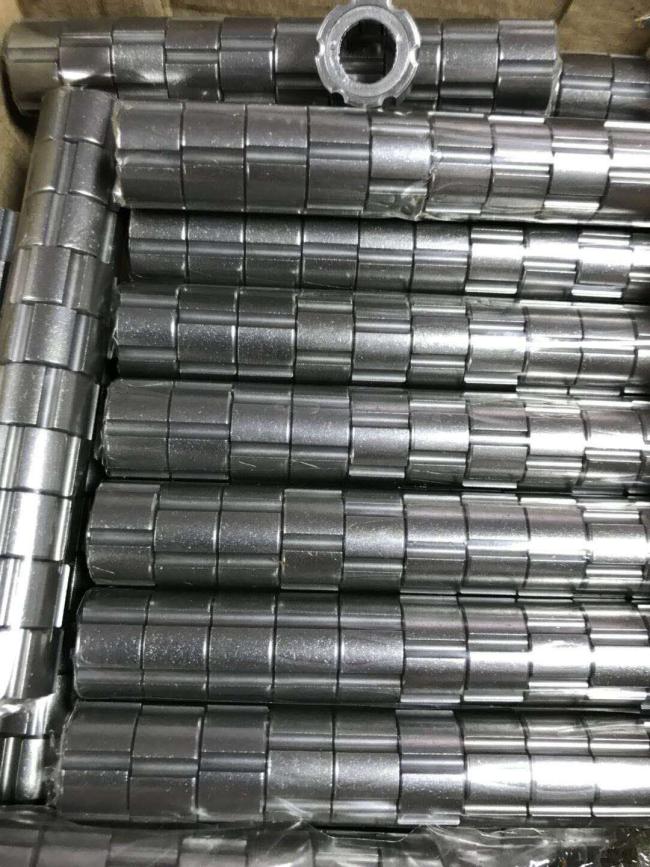

| Package | Roll pack + Carton Box / Wooden box |
| Delivery time | 2-4 days for the sample, 7 days for big order |

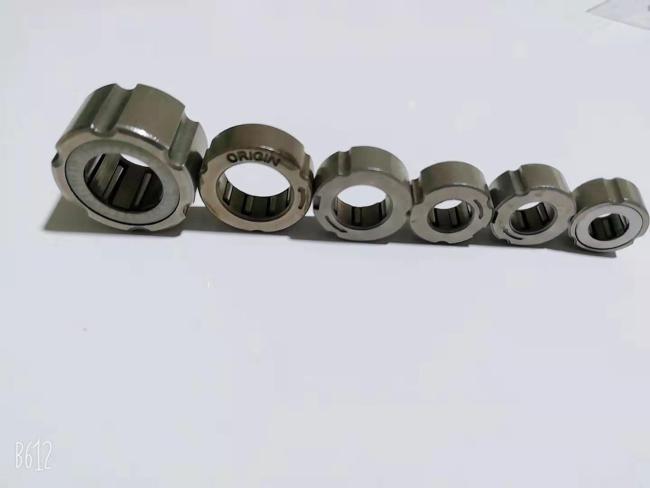

Catalogue of Powder Metallurgy Bearings for your choice
GXRZ series are clockwise rotation
GXLZ series are anticlockwise rotation
| Model | Weight | DIMENSION (mm) | Driving Torque | ||
| g | Inner Dia. | Outer Dia. | Height | ( Nm ) | |
| OWC406GXRZ | 1.6 | 4 | 8 | 6.0 | 2.5 |
| OWC406GXRZ | |||||
| OWC408GXRZ | 1.8 | 4 | 8 | 8.0 | 3.1 |
| OWC408GXLZ | |||||
| OWC410GXRZ | 1.8 | 4 | 10 | 5.4 | 2.8 |
| OWC410GXLZ | |||||
| OWC511GXRZ | 2 | 5 | 11 | 5.4 | 3.5 |
| OWC511GXLZ | |||||
| OWC610GXRZ | 2.38 | 6 | 10.2 | 8.0 | 4.6 |
| OWC610GXLZ | |||||
| OWC612GXRZ | 2.3 | 6 | 12 | 5.4 | 5.2 |
| OWC612GXLZ | |||||
| OWC612GXRZ-8.4 | 2.3 | 6 | 12 | 8.4 | 5.2 |
| OWC612GXLZ-8.4 | |||||
| OWC812GXRZ | 2.8 | 8 | 12 |
5.0 |
5.8 |
| OWC812GXLZ | |||||
| OWC814GXRZ | 2.8 | 8 | 14 | 5.4 | 6.1 |
| OWC814GXLZ | |||||
| OWC814GXRZ-8.4 | 2.8 | 8 | 14.3 | 8.4 | 6.1 |
| OWC814GXLZ-8.4 | |||||
| OWC1016GXRZ | 3 | 10 | 16 | 5.4 | 9.5 |
| OWC1016GXLZ | |||||
| OWC1019GXRZ | 8.5 | 10 | 19 | 11.0 | 19.8 |
| OWC1019GXLZ | |||||
| OWC173512 | 22.5 | 17 | 35 | 12.0 | 78 |
| OWC173516 | 25.5 | 17 | 35 | 16.0 | 95 |
| OWC203216 | 23 | 20 | 32 | 16.0 | 108 |
