High Tensile 65mn 45# Manganese Steel Iron Wire Woven Quarry Vibrating Screen Mesh
High Tensile 65mn 45# Manganese Steel Iron Wire Woven Quarry Vibrating Screen Mesh
For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high-quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
1. Material:
High carbon steel wire, low carbon steel wire, galvanized wire, stainless steel wire and other metal wires.
2. Feature:
It has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.
3.Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth
4.Application:
Screening in mine, coal factory, construction and other industries.used as window
screening, safety guards in machinery enclosures, also used in filtering liquid and gas, sieving grain.
Please contact us as soon as possible if you are interested in our products. We'll try our best to supply the best service to you!
|
Name |
Custom Stone Crusher Vibrating Screen Mesh crimped wire mesh |
|||
|
High carbon steel |
Manganese steel,high carbon steel 65Mn |
|||
|
Wire diameter |
0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm . |
|||
|
Aperture/Opening |
2mm to 100mm,tolerance +-3% |
|||
Specification:
| No | Steel Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 |
0.50-0.80
|
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| Mesh/inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100square foot | ||
| Inch | MM | Inch | MM | |||
| 2x2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 |
| 3x3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
| 4x4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 5x5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
| 6x6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
| 8x8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
| 10x10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12x12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 14x14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
| 16x16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 |
| 18x18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
| 20x20 | 0.02 | 0.058 | 0.03 | 0.76 | 36 | 55.2 |
| 24x24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | 31.8 |
| 30x30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 |
| 35x35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29 |
| 40x40 | 0.1 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
| 50x50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 |
| 60x60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
| 70x70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 |
| 80x80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 |
| 90x90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
| 100x100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 110x110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 |
12.4 |
Carbon Steel Parameter:
Photo:

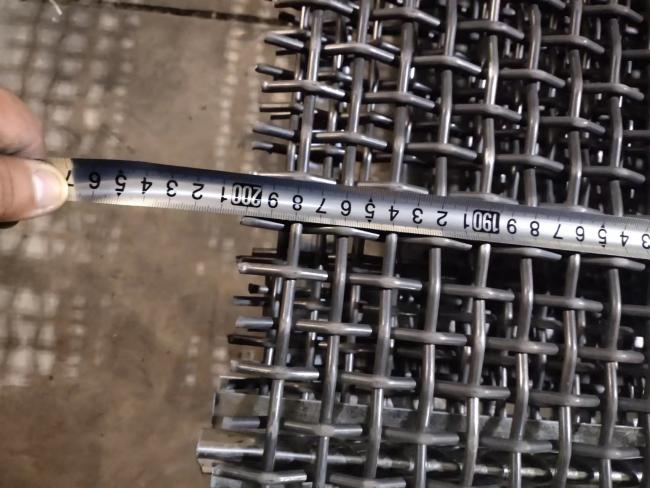

vibrating screen mesh

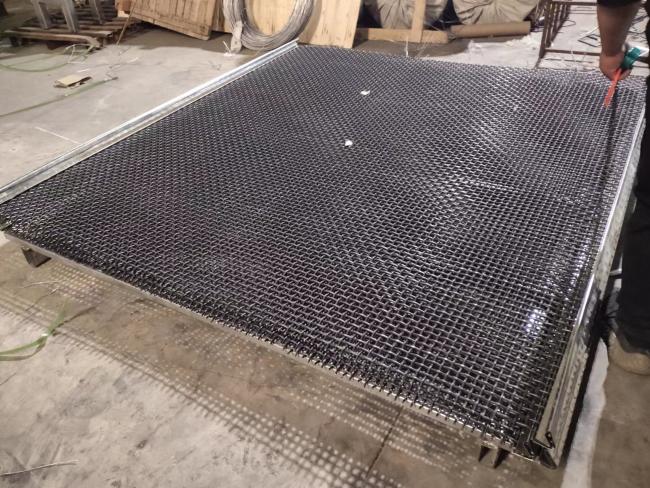

vibrating screen mesh
anti-clog vibrating screen mesh
anti-clog vibrating screen mesh
