65mn 45# High Tensile Manganese Steel Iron Square Hole Crimped Wire Mesh

High Tensile 65Mn 45# Manganese Steel Iron Wire Woven Quarry Rock Square Hole Crimped Wire​

The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,

flat mesh, etc.).

1. Material:
1) Stinless steel wire(201, 202, 302, 304, 304L, 310, 316, 316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, Mn steel wire, black wire.
3) Galvanized iron wire, galvanized steel wire
Aluminum wire, copper wire, non-ferrous metal wire, Other materials are available on request.

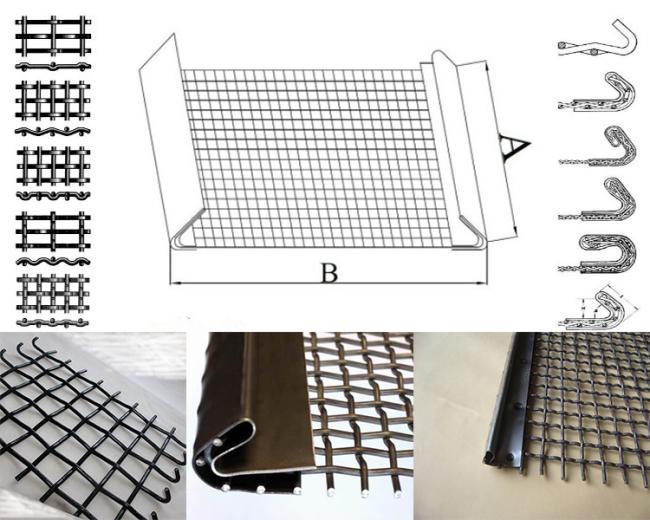

2. Crimp methods: Plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3. Features: Even mesh, strong structure
4. Specifications:
Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: As request
Length: As request
5. Hook: 60-180 degree, C hook available
Hook Covered edge: Galvanized metal or others
6. Application: It is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc

Crimped wire mesh, Square wire mesh, mining screen wire mesh Feature:

* wearable

* high temperature-proof.

* Good toughness, shake-proof and draw-proof

* keep-distance, better rate filter than sheet iron screen.

packing of vibrating screen mesh

Characteristics:

Wires are pre-crimped on one side only, leaving the other side

flat. This minimizes friction on delicate sieve material.Improves material flow with a much smoother,flatter surfaces than other weaves. Wear is equal over the whole upper surface of the screen.It is generally used with coarse material.
