50x150mm Decorative 3D Curved Welded Wire Mesh Fence Panels Rodent Proof
Price:
Negotiable
MOQ:
200pcs
Delivery Time:
15-25days
Brand:
XMESH
Product Description
Cheap Price Decorative 3D Curved Welded Wire Mesh Fence Panels
Welded Wire Fencing the panel use high quality low carbon steel wire and welded by computer controlled machine.Welded point have high tensile strength.and better planeness. Making V-beam that can enhanced the anti wallop. The panel became solid .The fence surface after PVC or Powder coating will be brightness and comfortable.
3d curved welded wire mesh fence is a type of welded wire mesh which has V-shaped strengthen bending curves. It is made of high quality low carbon steel wire, galvanized steel wire,metal column connected. The surface treatment of Triangle bend fence includes: hot-dipped galvanized, PVC coated, powder coated, polyester coated.
We provide high quality fence with affordable price, as well as provide trade assurance to ensure that your order be no risk.The fence panels are fully welded and 100% hot dip galvanized offering great strength, protection against corrosion and an increadibly long product life.The folded panels are hot dipped galvanized and powder/PVC coated any color to provide you with a stylish , and exceptionally long lasting fence.
|
Panel height
|
Panel length
|
Wire diameter
|
Mesh size
|
Curves
|
|
0.63m
|
2.0m
2.5m 3.0m |
Galvanized+PVC painted 3.85mm/4.0mm 4.85mm/5.0mm Galvanized+PVC coated 3.0mm/4.0mm 4.0mm/5.0mm |
50*150mm 50*200mm 55*100mm 55*200mm |
2
|
|
1.03m
|
2
|
|||
|
1.23m
|
2
|
|||
|
1.5m
|
3
|
|||
|
1.53m
|
3
|
|||
|
1.7m
|
3
|
|||
|
1.73m
|
3
|
|||
|
1.8m
|
4
|
|||
|
1.83m
|
4
|
|||
|
2.0m
|
4
|
|||
|
2.03m
|
4
|

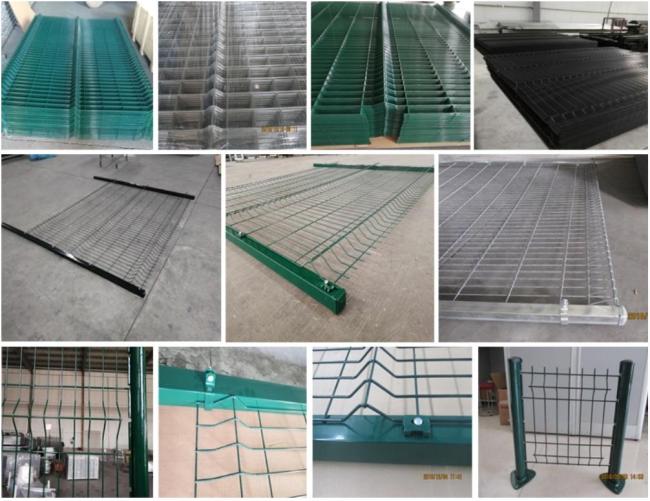

Panels
- The welded mesh panels have a length of 2000 mm,2200mm,2500mm and are available in a range of heights from 630 till 2430 mm.
- The panels have vertical barbs of 30 mm that can be placed at the top or at the bottom.
- Mesh sizes are 100 x 50 mm ,200x50mm, 75x100mm
- Wire diameter: Horizontal 3,4,5 mm, Vertical 4,0 mm
Coating
- hot dipped galvanized
- PVC-coating,
- hot dipped ,then pvc coated.
Colours
- Green RAL 6005 standard. RAL series colour is available on request.

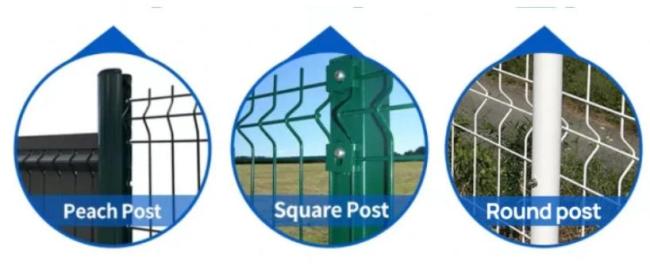

Posts:
1. peach -shaped post: 100x70mm
2. square post: 60x60mm, 60x40mm
3. round post: 48mm, 60mm.

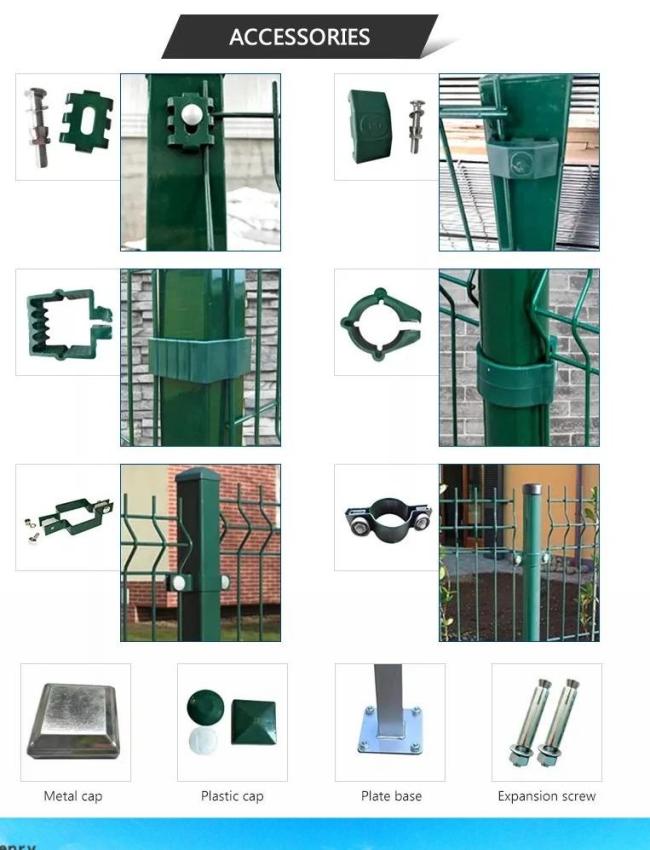

3. fittings
1) steel clips or plastic clips
2) plastic anti-rain caps
3) base plate if need.
3. fence post
| Square Post | ||
| Post OD. | Wall Thickness | Post Length |
| 40x60mm | 1.2mm |
L=2.0m L=2.2m L=2.4m L=2.5m |
| 40x60mm | 1.5mm | |
| 40x60mm | 2.0mm | |
| 60x60mm | 1.2mm | |
| 60x60mm | 1.5mm | |
| 60x60mm | 2.0mm | |
|
|||||||||||||||
| Peach Post | ||
| Post OD. | Wall Thickness | Post Length |
| 50x70mm | 1.0mm |
L=2.0m L=2.2m L=2.4m L=2.5m |
| 50x70mm | 1.2mm | |
| 70x100mm | 1.0mm | |
| 70x100mm | 1.2mm | |
Fence posts
- Material: high grade steel for maximum strength and rigidity.
- Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
- Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
- Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
- Colors: Green RAL 6005, or Black RAL 9005.
- Post cap: metal caps or plastic cap.
- Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

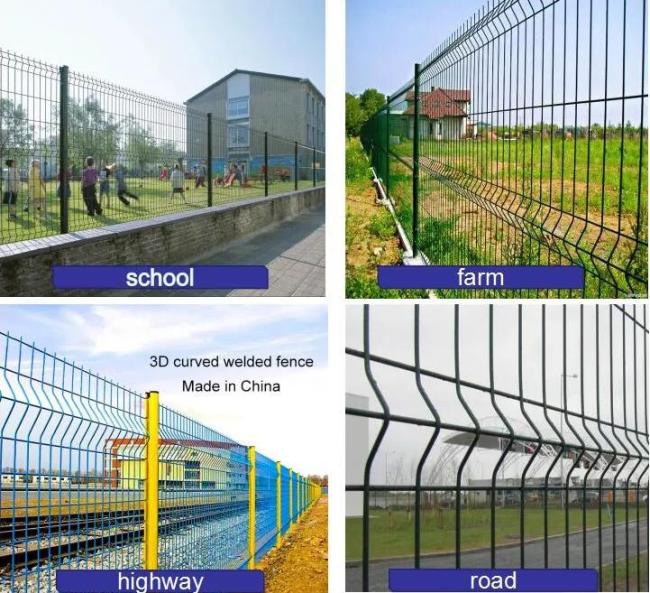

Application:
