Stainless Steel Crimped Wire 65mm Sand Mesh Vibrating Screen 1.5m X 1.95m
Crimped Wire Mesh 65mm Sand Vibrating Screen China Manufacturer and Suppliers
Heavy Type Crimped Wire Mesh is available in different wire diameters, mesh opening and open area.

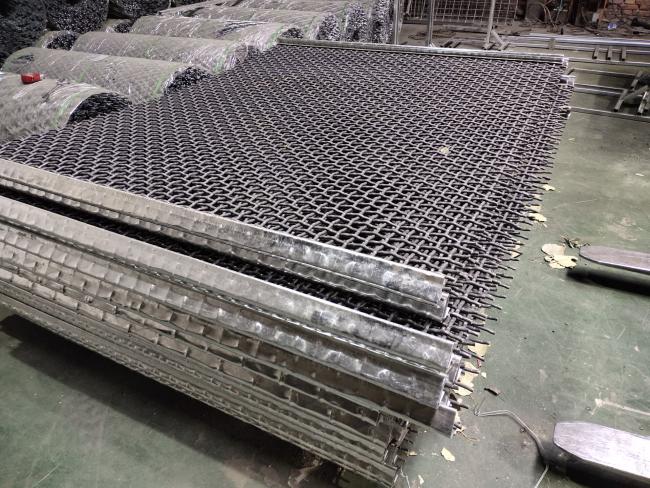

Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.
Stainless steel wire mesh, specifically Type 304, 316 stainless steel, are the most popular material
for producing woven wire mesh products.
Material: stainless steel wire 301, 302, 304, 304L, 316, 316L, 321, galvanized wire.
It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.
The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.
| Material | Black wire, spring steel wire, manganese steel wire and stainless steel wire, as your request |
| Surface treatment | Galvanized or painted |
| Wire diameter | 0.71mm - 12.5mm |
| Mesh size | 1mm - 100mm |
| Hole type | Square, rectangular and long slot |
| Weaving type | Plain weave, Pre-crimped, Flat top, Intermediate crimped, Lock crimped |

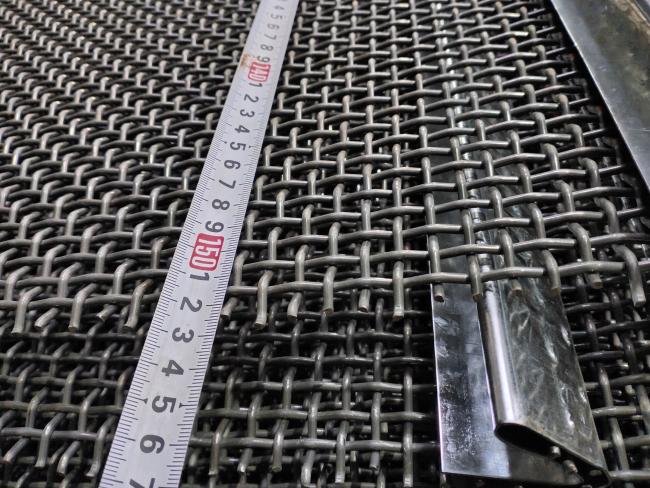

| Connection/Hook type | Bending,Welding,Metal sheet hook (C type or U type) |
| Wire Dia(mm) | Opening(mm) | Mesh | Weight(kg/m2) |
| 4.0 | 30 | 0.75 | 6 |
| 3.2 | 20 | 1.1 | 5.6 |
| 2.6 | 15 | 1.44 | 5.7 |
| 2.0 | 10 | 2.12 | 4.2 |
| 2.0 | 8 | 2.54 | 5.1 |
| 1.8 | 6 | 3.25 | 5.3 |
| 1.6 | 3 | 5.5 | 7.1 |
| 1.4 | 4 | 4.7 | 4.6 |
| 1.2 | 7 | 3.1 | 2.2 |
| 1.2 | 6 | 3.5 | 2.5 |
| 1.2 | 3 | 6 | 4.4 |
| 1.0 | 2.18 | 8 | 4 |
| 0.8 | 1.72 | 10 | 3.2 |
| 0.7 | 1.84 | 10 | 2.5 |
| 0.6 | 1.21 | 14 | 2.6 |
| 0.5 | 0.9 | 18 | 2.3 |
| 0.5 | 0.77 | 20 | 2.5 |
| Other specifications can be customized, can be made into rolls or sheets, the width can be up to 4m | |||
Crimped wire mesh, Square wire mesh, mining screen wire mesh Feature:
All types of high-quality Screen Mesh can be manufactured, kindly let us know your request.
1. Mesh type
2. Material
3. Aperture
4. Length and Width
5. Quantity
6. Your other requests
Talk with me you do not need to pay money. I am happy to add value, even if we never work together. You tell me what works for you. I'll make it happen. Simple as that.
Advantages:
1) High mechanical strength, large carrying capability
2) High abrasion and chemical corrosion resistance
3) Excellent vibration and impact resistance
4) Large screening area
5) long service life
Our woven wire mesh is manufactured with a stringent wire opening tolerance of ±3%.Wire diameter is available in the industrys largest variety of wire diameters from .047 inches(1.2mm) to .750 inches(19 mm) and open size from .125 inches (3.18mm)to 5 inches (127mm).
The weaving process is also crucial .Each screen is woven with an extremely tight tolerance to any type of movenment within the crimp or weave, preventing the wires from rubbing against each other and wearing prematurely during use.Thus a tight weave is produced every time,and the tighter the weave,the more durable the woven wire. So you get the strongest screen media possible every time you order.
Application:
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.
