Contemporary 3d Curved Wire Mesh Fence Hot Dip Galvanized Pvc Coated

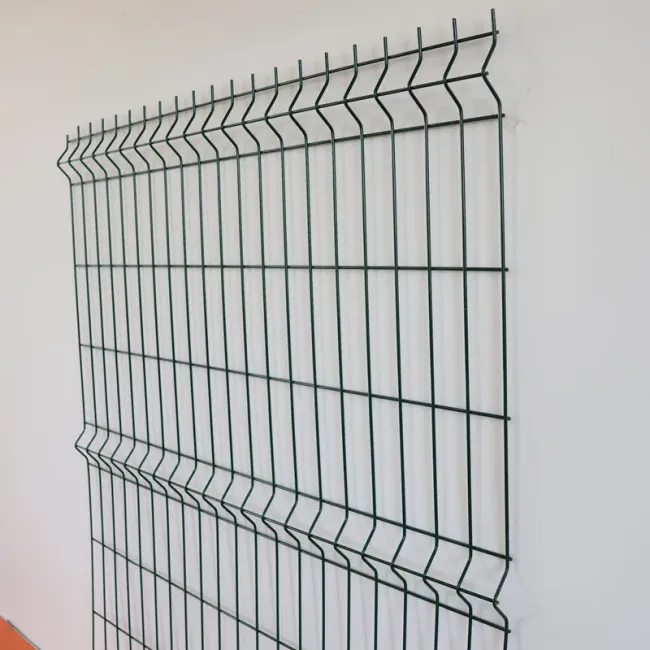

3d fence panel plastic coated 3d curved fence installed on wall
| 3D Panel Fence ( Galvanized + Powder Coated ) | |||||
| Panel Height | Panel Length | Wire Dia. | Mesh Size | Folds No. | |
| H=1.03m | L=2.5m | 4.0mm/5.0mm | 50x200mm | 2 | |
| H=1.23m | L=2.5m | 4.0mm/5.0mm | 50x200mm | 2 | |
| H=1.53m | L=2.5m | 4.0mm/5.0mm | 50x200mm | 3 | |
| H=1.73m | L=2.5m | 4.0mm/5.0mm | 50x200mm | 3 | |
| H=2.03m | L=2.5m | 4.0mm/5.0mm | 50x200mm | 4 | |
| Fence Post | Type | Rectangle post/Peach post/Round post |
| Material | Q195-Q235 | |
| Surface Treatment | Hot-dipped Galvanized Hot-dipped Galvanized then Powder coating |
|
| Fence Accessories | Clips/Clamps | Metal Clips and Plastic Clips |
| Rainhat or caps | Metal caps or plastic caps | |
| Application | Used as fencing, decoration or protection for various facilities in industry, agriculture, transport,etc. | |
Welded Wire Fence Panel Options
Flat mesh panel welded wire mesh fence

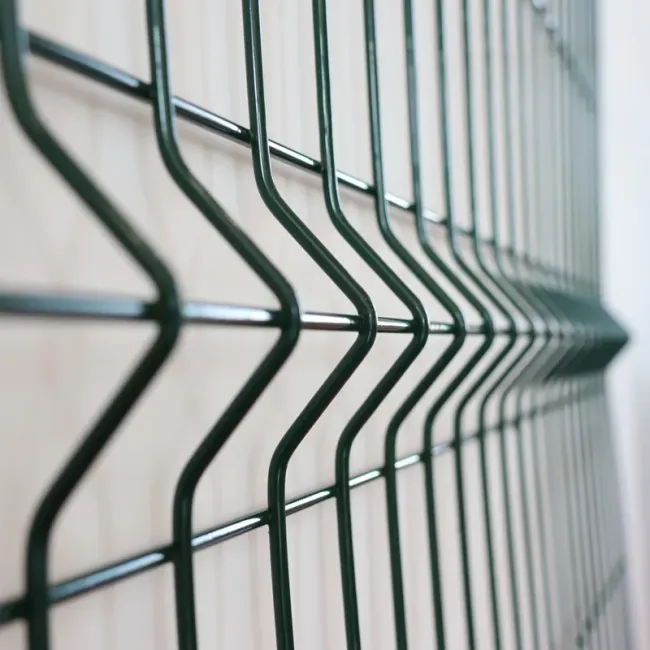

V mesh panel welded wire mesh fence(with curves)
Surface finishing:galvanized, heavy hot dipped galvanized, powder coated, PVC coated
Welded Wire Fence Post options
Round post
Square post
Anti-thief post
Surface finishing: heavy hot dipped galvanized, powder coated.
Fence panel Specification
| Panel height | Panle Length | Wire Diameter | Mesh Size | Folds No. |
| 1030mm |
2000mm 3000mm |
3.0mm/4.0mm 3.85mm/4.0mm 4.0mm/5.0mm 4.85mm/5.0mm 5.0mm/6.0mm 5.85mm/6.0mm |
50*200mm 55*200mm 50*100mm 50*150mm 70*200mm 70*150mm |
2 |
| 1230mm | 2 | |||
| 1500mm | 2/3 | |||
| 1530mm | 2/3 | |||
| 1700mm | 3 | |||
| 1800mm | 3 | |||
| 2000mm | 4 | |||
| 2030mm | 4 | |||
| 2430mm | 4 |
Fence post Specification
| Item | Section-1 | Section-2 | Thickness | Installation-1 | Installation-2 |
| SHS Post | 60x60 mm | 80x80 mm | 2.0mm or 2.5mm | Post depth in the Ground with Concrete |
Screw Pile Or Welding with Flange Plate |
| RHS Post | 40x60 mm | 60x80 mm | 2.0mm or 2.5mm | ||
| Peach Post | 50x70 mm | 70x100 mm | 1.2mm or 1.5mm | ||
| I type Post | 70x44 mm | 100x55 mm | 1.5mm or 2.0mm | ||
| CHS Post | ø60 mm | ø76 mm | 2.0mm or 2.5mm |

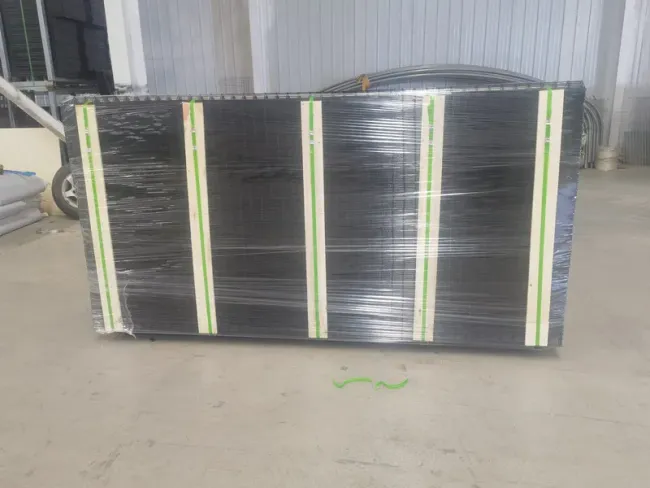

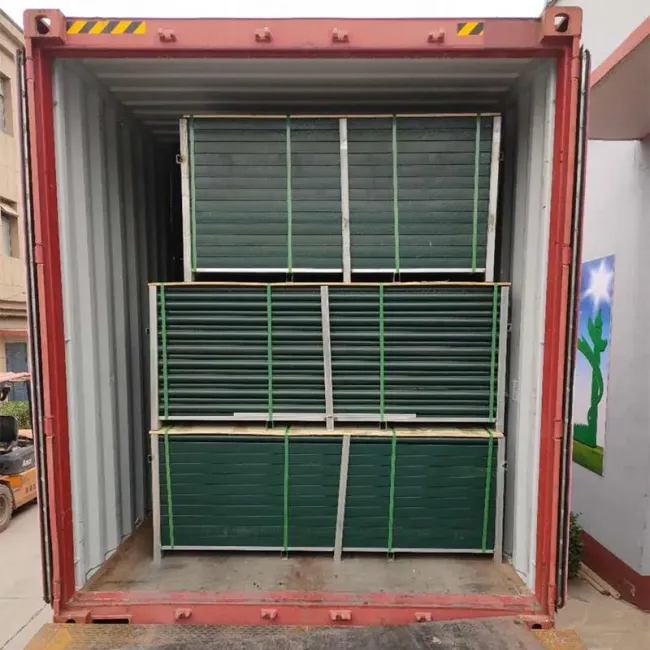

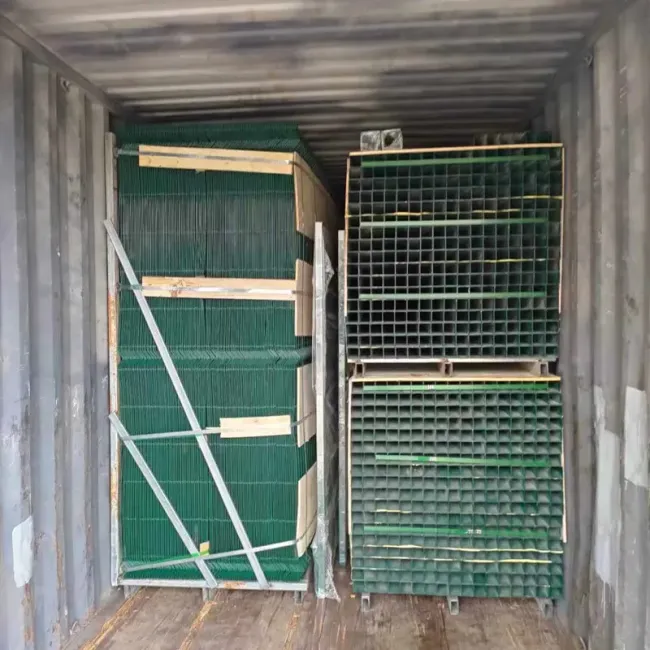

Fence panel:
Plastic film at the bottom to avoid the panel be destroyed
Metal corners to ensure the panel strong and uniform
Wood plate at the top of pallet to keep the under panel
Pallet tube size:40*80mm tubes at the botom vertical position

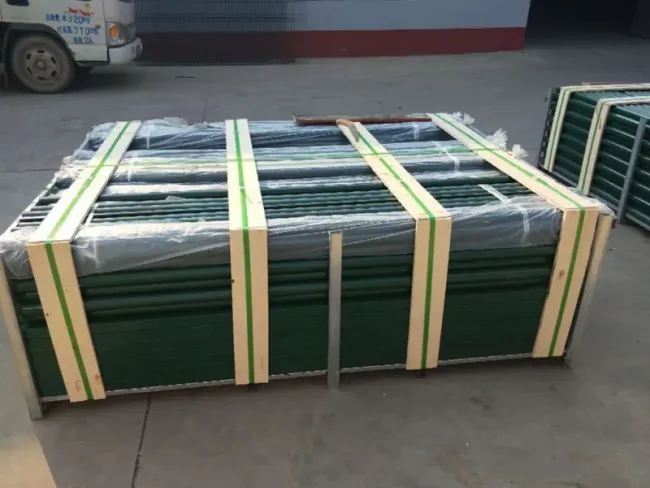

Fence post
plastic cap cover onto the post
plastic film +metal pallet for fence pot
