Duplex Quality Stainless Steel Hexagonal Perforated Metal Plate Aquaculture And Saltwater
Price:
Negotiable
MOQ:
200pcs
Delivery Time:
15-25days
Brand:
XMESH
Product Description
Duplex Quality Stainless Steel Hexagonal Perforated Metal Plate
Product Description

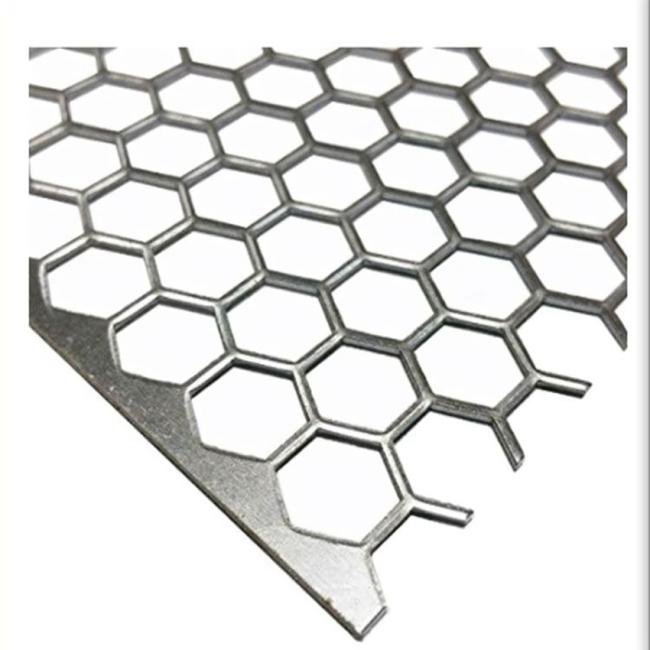

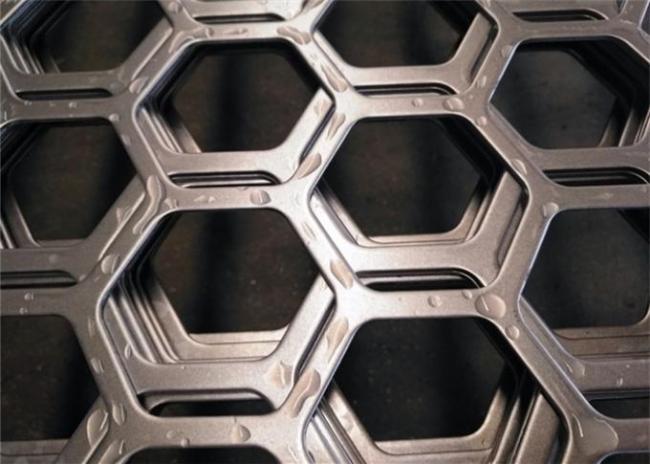

Hexagonal perforated metal is a sheet of material that contains holes punched by a hexagon die. Hexagonal perforated metal is available in a variety of gauges, patterns and materials.
Perforated Metal Mesh Punching mesh refers to making holes of different shapes in different materials to suit different needs. Most of the raw materials used in punching net are: stainless steel plate, low carbon steel plate, galvanized plate, PVC plate, cold rolled coil, hot rolled plate, aluminum plate copper plate and so on.
Punching net main specifications are rectangular hole, square hole, diamond hole, round hole, long round hole, hexagonal hole, cross hole, triangle hole, long waist hole, plus-shaped hole, fish scale hole, pattern hole, eight mesh, herringbone hole, five-pointed star hole, irregular hole, drum hole, special-shaped hole, shutter hole, etc..
Punching net main specifications are rectangular hole, square hole, diamond hole, round hole, long round hole, hexagonal hole, cross hole, triangle hole, long waist hole, plus-shaped hole, fish scale hole, pattern hole, eight mesh, herringbone hole, five-pointed star hole, irregular hole, drum hole, special-shaped hole, shutter hole, etc..
Specification
|
Hole Type
|
Hexagonal Staggered
|
|
Hole Size
|
1/2"
|
|
Thickness
|
14 Gauge (.0800")
|
|
Hole Centers
|
9/16"
|
|
Application
|
Safety Guards● Filtration● Screening● Trash Receptacles● Benches● Drain Covers"
|
|
Bar Width
|
1/16"
|
|
Hole Arrangement
|
60°
|
|
Open Area
|
79%
|
Common Specifications

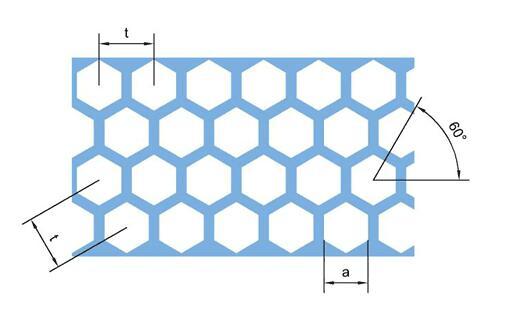

Here are some common ordering specifications of the hexagonal hole perforated metal.
-
Hexagonal Hole Item a (mm) t (mm) P (%) Sv 8-10.5 8 10.5 58.1 Sv 8-12 8 12 44.4 Sv 10-15 10 15 44.4 Sv 10-18 10 18 30.9 Sv 10-28 10 28 12.8 Sv 12-16 12 16 56.3 Sv 14-21 14 21 44.4 Sv 16-21 16 21 58.1 Sv 16-34 16 34 22.1 Sv 18-25 18 25 51.8 Sv 20-26 20 26 59.2 Sv 20-28 20 28 51.0 Sv 22-30 22 30 53.8 Sv 25-35 25 35 51.0 Sv 30-44 30 44 46.5 Sv 32-40 32 40 64.0 Sv 35-48 35 48 53.2 Sv 36-48 36 48 56.3 Sv 50-65 50 65 59.2
Some of our Perforated Metal features:
- Highest percentages of open area
- High strength-to-weight ratio
- Economical
- Versatile
- Aesthetically appealing
- Allows for passage of air, light, sound, and gases
- Pressure equalization or control
- Provides security
Application
Our hexagonal perforated metal can provide a substantial open area and is primarily used for high airflow and architectural applications. We carry hexagonal perforated metal in a variety of gauges, hole sizes, patterns, and materials to suit any perforated metal project. The holes in hexagonal perforated metal not only provide an aesthetic appeal, but also add security.
Not only are there many features of our hexagonal perforated metal, there are also many applications for hexagonal perforated metal, including:
- Perforated metal screens
- Perforated metal guards
- Perforated metal diffusers
- Perforated metal privacy panels
- Perforated metal facades
- Perforated metal in-fill panels
- Perforated metal trash receptacles
- Perforated metal benches
- Perforated metal drain covers
- Perforated metal filters

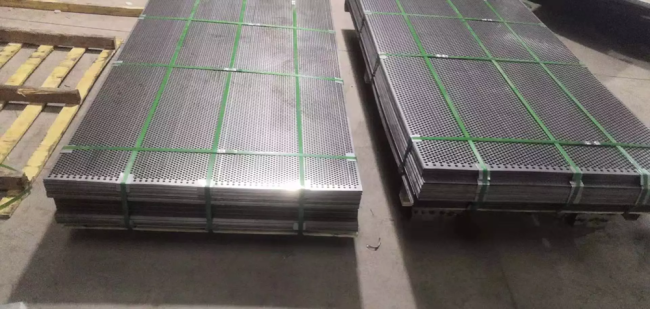

Packing & Delivery
