Stainless Steel Chain Link Fence for Commercial & Industrial Uses
Stainless steel chain link fence is durable and firm.
Stainless steel chain link fence is regard as the most durable type among all metal chain link fences. It can be divided into 304, 316, 316 L materials according to the AISI standard.
Stainless steel chain link fence is relatively more expensive than the galvanized, vinyl coated and aluminum coated chain link fence, but it can supply the longest service life even in high temperature, and harshest environments.
Stainless steel chain link fence is recommended for high grade enclosures or barriers such as in airports, highways or other applications where high-level protection is needed.

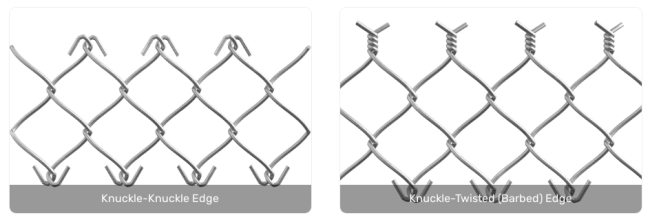

Selvage
Most of stainless steel chain link fences with a 2" or smaller mesh and 60" or less in height adopt knuckled edge at the both selvedge.
For chain link fencing higher than 72", the selvedge is knuckled at one edge and twisted (barbed) at the other edge.
Mesh Apertures & Diameters
| Recommended use | Mesh sizes available (inch) | Nominal coated wire size (gauge) | Height of fence fabric (inch) |
|---|---|---|---|
| Industrial/commercial | 2" | 6 | 36" – 144" |
| 2" | 9 | 36" – 144" | |
| 2" | 10 | 36" – 144" | |
| 2" | 11 | 36" – 144" | |
| Industrial/security | 1" | 6 | 36" – 144" |
| 1" | 9 | 36" – 144" | |
| Security | 1" | 9 | 36" – 144" |
| 1" | 11 | 36" – 144" | |
| 3/4" | 9 | 36" – 144" | |
| 3/4" | 11 | 36" – 144" | |
| 5/8" | 9 | 36" – 144" | |
| 5/8" | 11 | 36" – 144" | |
| 1/2" | 9 | 36" – 144" | |
| 1/2" | 11 | 36" – 144" | |
| 3/8" | 10 | 36" – 144" | |
| 3/8" | 11 | 36" – 144" | |
| Tennis Court | 1-3/4" | 9 | 36" – 144" |
| 1-3/4" | 11 | 36" – 144" |
Features
- The best alkali and acid resistance performance.
- High temperature and salt water resistance
- It will not bend, sag or break, and can keep its shape over long periods of time.
- Fully recycled when it is replaced.
- Flexible wire gauges and mesh apertures options.
Applications
- Airports.
- Highways.
- Railroads.
- Solar plant.
- Maritime operations.
- Leisure sports field.
