Weathering Metal Sheet Resistant Bridge ASTM A242 09cup A588 Corten Steel Plate
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
15-18days
Brand:
mild steel plate
Product Description

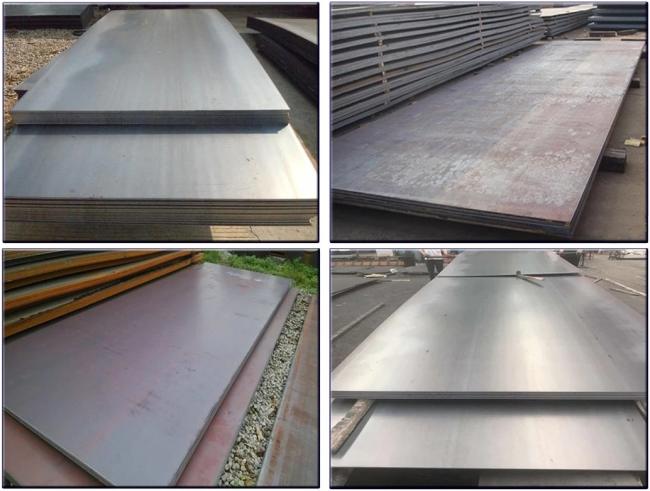

Weathering Metal Sheet Resistant Bridge ASTM A242 09cup A588 Corten Steel Plate
Our main products cover corten plate, wear resistant steel plate, boiler plate and ship plate. We can also offer the services of cutting and punching.
"15 years of steel production experience! Because professional, trustworthy!
| Products | Corten Steel Plate |
| Standard grade |
ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W; |
| EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W; |
|
| JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P; |
|
| JIS G3125: SPA-H; SPA-C; | |
| GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH; Q415NH; Q460NH; 1500NH; Q550NH; |
|
| TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi; | |
| Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR; | |
| Thickness | Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer requirement |
| Process | Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required |
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS. |
| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | |
| Trade term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Application | Widely used in a variety of architectural and engineering structures,such as |
| 1.) metal constructions such as buildings,bridges,ships; | |
| 2.) transmission tower, reaction tower; | |
| 3.) lifting transportation machinery; | |
| 4.) industrial furnace;boilers | |
| 5.) container frame, warehouse goods shelves, etc |
| Corten Steel Plate Chemical Composition and Mechanical Properties | ||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu |
| CORTEN A | ≤0.12 | 0.25-0.75 | 0.20-0.50 | 0.07-0.15 | ≤0.030 | 0.50-1.25 | ≤0.65 | 0.25-0.55 |
| CORTEN B | ≤0.16 | 0.30-0.50 | 0.80-1.25 | 0.03 | ≤0.030 | 0.40-0.65 | 0.4 | 0.25-0.40 |
| Yield Strength MPA | Tensile Strength MPA | Elongation % | ||||||
| Grade | ||||||||
| CORTEN A | ≥355 | 470-630 | ≥20 | |||||
| CORTEN B | ≥345 | 470-630 | ≥20 | |||||
| Grade | C | Mn | Cr | Si | N | S | Cu | P | Ni | V |
| A588GrA | ≤0.19 | 0.80-1.25 | 0.40-0.65 | 0.30-0.65 | ≤0.010 | 0.05 | 0.25-0.40 | 0.04 | ≤0.40 | 0.01-0.10 |
| A588GrB | ≤0.20 | 0.75-1.35 | 0.40-0.70 | 0.15-0.50 | ≤0.010 | 0.05 | 0.20-0.40 | 0.04 | ≤0.50 | 0.01-0.10 |
| A588GrC | ≤0.15 | 0.80-1.35 | 0.30-0.50 | 0.15-0.30 | ≤0.010 | 0.05 | 0.20-0.50 | 0.04 | 0.25-0.50 | 0.01-0.10 |
