Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
15-18days
Brand:
QIJIE
Product Description
Square Mesh 20*20*40 Fiberglass/FRP Molded Grating with High Strength Corrosion Resistant
Fiberglass Grating is a lightweight and sound alternative to Steel or Aluminum Gratings
The color of molded FRP grating is made by color pigment which is compatible to the resin, so its color is not superficial, thus keeping the gratings overall color lasting longer time. Abrightly colored FRP grating can improve your production environment, changing the constant grayness of a corrosive environment and adding color to a modern factory.Sinogrates molded FRP grating is high strength, impact resistant, corrosion resistant, fire retardant, anti-slip and anti-aging.It meets or passes ASTM E-84 fire retardant, Anti-slip R13 (AS4586-2013), DNV, ABS, EU REACH SVHC environmental testing or certification.

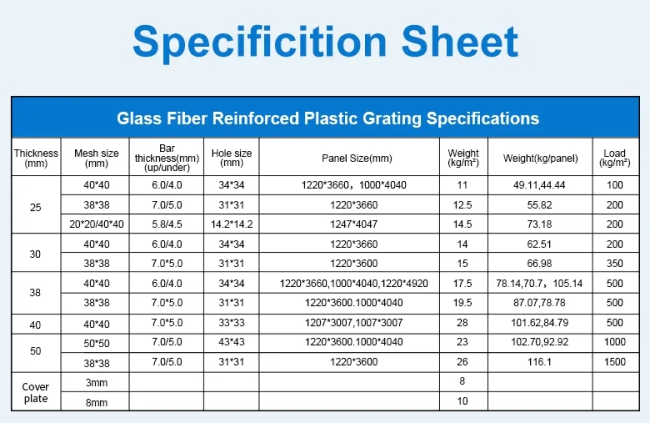

MOULDS SPECIFICATION TABLE
PRODUCTION DETAILS
RESINS OPTIONS GUIDE
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application
 |
Resin Type | Resin option | Properties | Fire retardant (ASTME84) | MAX ºC |
| Type P | phenolic | lower smoke and superior fire resistance | class 1,5 or less | 150 ºC | |
| Type V | vinyl ester | superior corrosion resistance and fire retaddant | class 1,25 or less | 95 ºC | |
| Type I | isophthalic polyester | industrial grade corrosion resistance and fire retardant | class 1,25 or less | 85ºC | |
| Type O | ortho | moderate corrosion resistance and fire retardant | class 1,25 or less | 85 ºC | |
| Type F | lsophthalic polyester | Moderate Corrosion Resistanceand Fire Retardant | class 1,25 or less | 85 ºC | |
| Type E | EроXy | Excellent corrosion resistanceand fire retardant | class 1,25 or less | 180 ºC |
Producting proceed
 |
 |
 |
Clip Fastening & Installation Methods
To ensure ease of installation, please review all relevant technical documentation.
Take care when fasteningand seek assistance if required. For further info regarding installation please contact .
The section below illustrates standard installation methods that can be applied to moulded grating.
Clip and fastening selections should be made according to the substrate material in use.
 |
 |
FRP Grating Applications
Sinogrates has high-performance gratings that are suitable for use in specific areas with higher technical requirements.In particular,Sinogrates offers a line of gratings with high chemical resistance, which are suitable for use in chemically aggressive environments such as chemical, galvanic, extraction, manufacturing industry (tanneries, paper mills, etc.) and waste treatment. This line is characterized by the use of pure isophthalic or vinylester resin, which is free of additives, and the use of a higher amount of resin compared to the standard grating in order to ensure total coverage of fibreglass.
