1.5mm Diameter DIN 3055 90% Light Transmission Stainless Steel Wire Rope Mesh for Architectural Features
Price:
Discuss
MOQ:
100 square meters
Delivery Time:
15-25 days
Brand:
QiJie
Product Description
60x1.5mm Dia X-tend 316 Stainless Steel Wire Rope

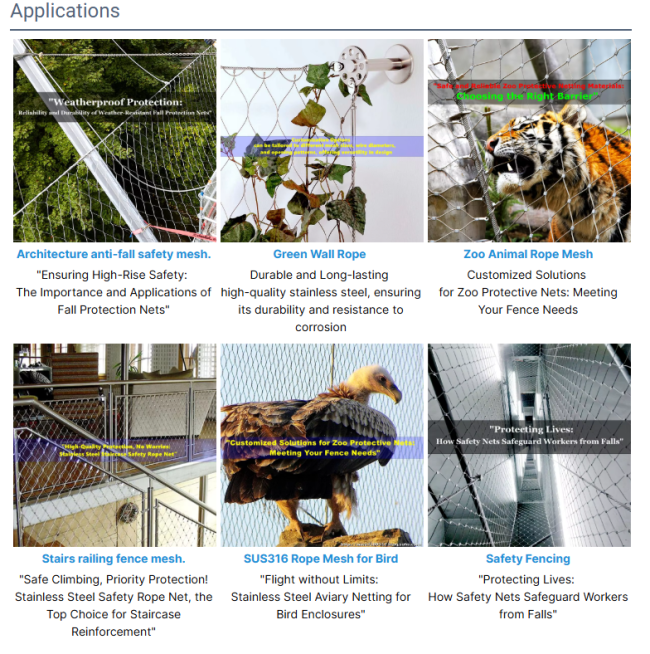

This high-quality stainless steel wire rope mesh is engineered for strength, durability, and visual appeal. Its 7x7 construction and AISI316 material grade make it ideal for demanding applications including zoo enclosures, architectural features, and industrial safety barriers.
| Product Type | STAINLESS STEEL WIRE ROPE MESH |
|---|---|
| Flexibility | FLEXIBLE |

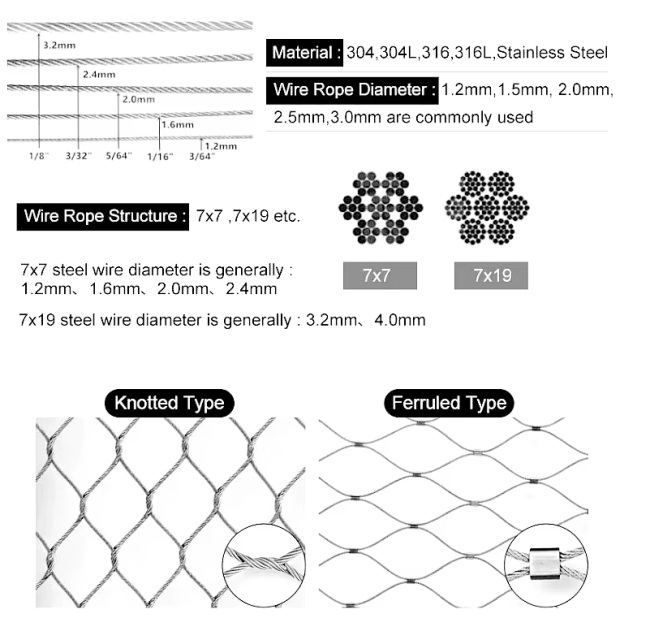

| Wire Rope Construction | 7x7 |
| Material | STAINLESS STEEL |
| Material Type | AISI316 |
| Specification | DIN 3055 |
| Finish | ULTRASONIC BATH |
| Nominal Diameter (Metric) | 1.5mm |
| Approx. Net Weight | 1.22kg/m2 |
| Min. Breaking Load (Wire Rope) | 129kgf or 1.27kN |
| Light Transmission | 90% |

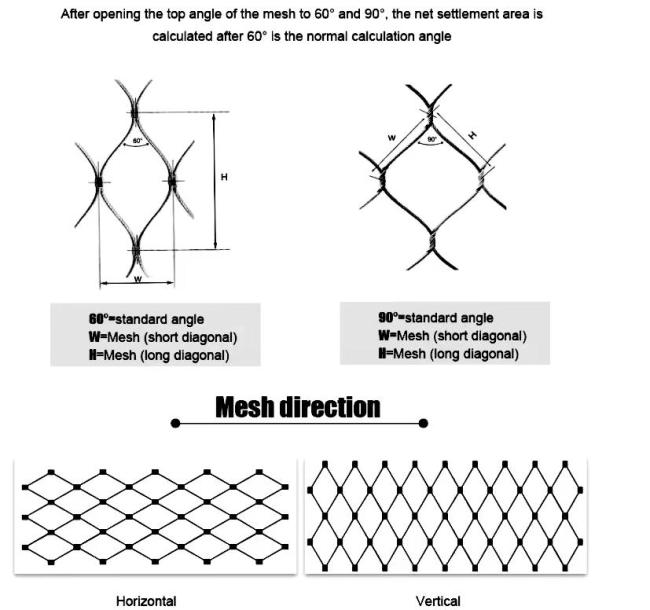

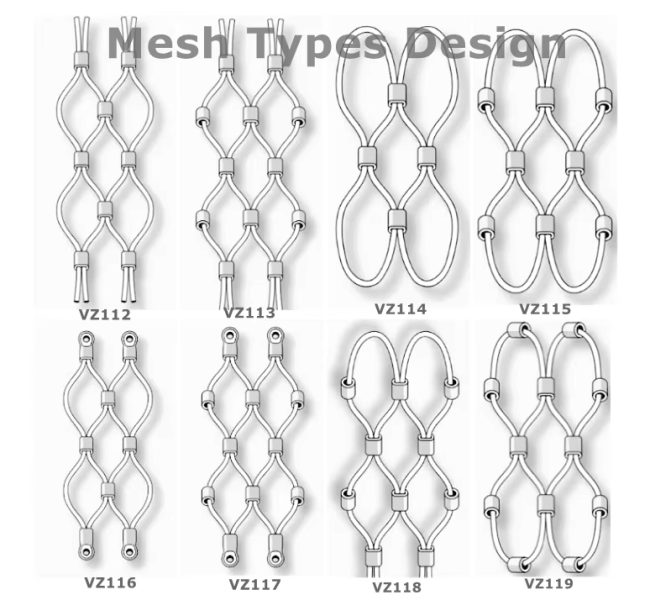

Mesh Types and Configurations
Diamond-Shaped Mesh
The classic diamond pattern offers superior strength and durability, making it ideal for enclosures requiring robust barriers. The intersecting wires create a visually appealing design that blends well with natural environments.
Square-Shaped Mesh
Featuring wires that intersect at right angles, this contemporary design provides a clean, minimalist appearance while maintaining structural integrity.
Material Grades
- 304 Stainless Steel: Offers good corrosion resistance for moderate environments
- 316 Stainless Steel: Provides superior resistance to salt, chlorine, and corrosive substances
Standard Specifications
| ID | Wire Dia. (inch) | Wire dia.(mm) | Mesh (inch) | Mesh(mm) |
|---|---|---|---|---|
| HM32102 | 1/8 | 3.2 | 4 x 4 | 102 x 102 |
| HM24102 | 3/32 | 2.4 | 4 x 4 | 102 x 102 |
| HM20102 | 5/64 | 2.0 | 4 x 4 | 102 x 102 |
| HM16102 | 1/16 | 1.6 | 4 x 4 | 102 x 102 |
| HM12102 | 3/64 | 1.2 | 4 x 4 | 102 x 102 |
| HM3276 | 1/8 | 3.2 | 3 x 3 | 76 x 76 |
| HM2476 | 3/32 | 2.4 | 3 x 3 | 76 x 76 |
| HM2076 | 5/64 | 2.0 | 3 x 3 | 76 x 76 |
| HM1676 | 1/16 | 1.6 | 3 x 3 | 76 x 76 |
| HM1276 | 3/64 | 1.2 | 3 x 3 | 76 x 76 |
Key Benefits
- Exceptional Strength: Withstands significant loads and impact forces
- Corrosion Resistance: Ideal for outdoor and marine environments
- Aesthetic Flexibility: Available in multiple patterns to suit design requirements
- Environmental Durability: Resists weathering and maintains integrity over time
- Low Maintenance: Requires minimal upkeep compared to alternative materials

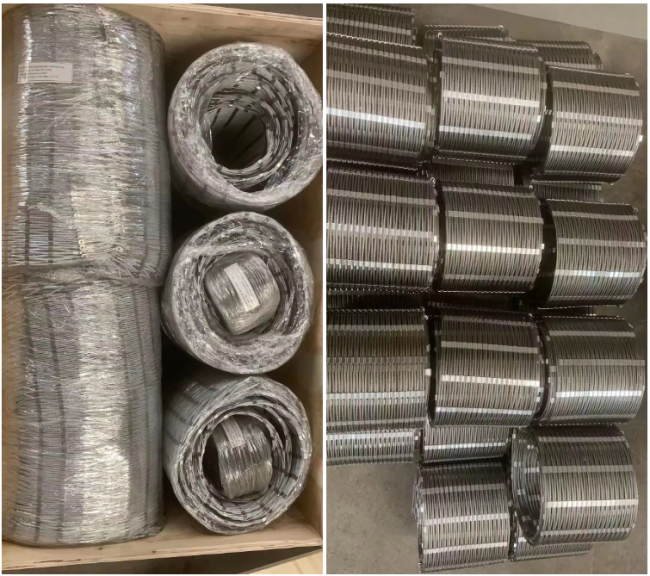

Packing & Delivery
Standard packaging includes OPP bags with carton box protection. Custom logo printing available. Bulk quantities shipped via sea or air freight, while smaller orders are delivered through express couriers (EMS, DHL, UPS, FedEx).
