Crocodile mouth hole anti-skidwalkway/aluminum tread plate
Crocodile mouth hole anti-skidwalkway/aluminum tread plate

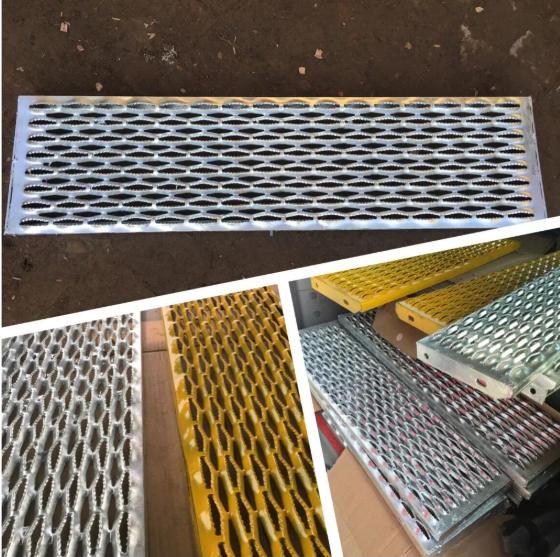

Anti-slip gratings are manufactured as one-piece consructed channels with walking surfaces surfaces consisting of serrated edges on top of diamond shaped openings. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. They can be cut or bending to any size and are ideal for wet or dry conditions where good slip resistance and traction are needed, adapt to different ground and anti-skid requirement.
We can produce full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications and so on. Material:Steel,Aluminum,Stainless Steel
Pattern:Round type,Crocodile mouth type
Widths & Depths
Grip Strut planks are available in a broad range of widths and depths for various applications and load requirements.
Standard widths include:
- 2 Diamond (4 ¾” wide)
- 3 Diamond (7” wide)
- 4 Diamond (9-1/2” wide)
- 5 Diamond (11-3/4” wide)
- 8 Diamond (18-3/4” wide)
- 10 Diamond (24” wide)
Standard channel depths include 1-1/2”, 2”, 2-1/2”, and 3”.
Stock lengths of 10’ and 12’ are readily available and custom lengths are available on special order.
Materials
Grip Strut planks are available in the following materials:
- Pre-galvanized steel, ASTM A924 G90, 14 or 12 gauge
- HRPO uncoated steel, ASTM A1011, 14 or 12 gauge
- 5052-H32 aluminum, ASTM B209, 12 gauge (.080) or 10 gauge (.100)
- 304 or 316L stainless steel, 16 gauge
Additional Grip Strut Products
In addition to plank grating, the distinct benefits of the Grip Strut surface are also available in OSHA compliant walkway channels, stair treads, ladder rungs, floor resurfacing materials, and Heavy Duty Grip Strut. For further details, please see related products below.
1. The top wall of the building object can be used for the ceiling, filter plate and cavity plate.
2. Used for building
balconies, environmental tables and chairs.
3. Protective cover plate, punch net and round hole plate for mechanical
equipment
4. Used for grain, feed sieve plate, sieve sheet, microporous plate.
5. Used for the shelf mesh decoration of the shopping mall display table hole plate, porous plate, perforated plate.
|
Structure
|
Plank thickness
|
Width
|
Channel height
|
Clear span
|
|
2-diamond |
14G
|
4-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
3-diamond |
14G
|
7"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
4-diamond |
14G
|
9-1/2"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
5-diamond |
14G
|
11-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
8-diamond |
14G
|
18-3/4"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
||
|
10-diamond |
14G
|
24"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
