Walkway Platform Anti-Slip Safety Plank Grating/Perforated Stainless Steel Stairs Grip Strut
Walkway Platform Anti-Slip Safety Plank Grating/Perforated Stainless Steel Stairs Grip Strut

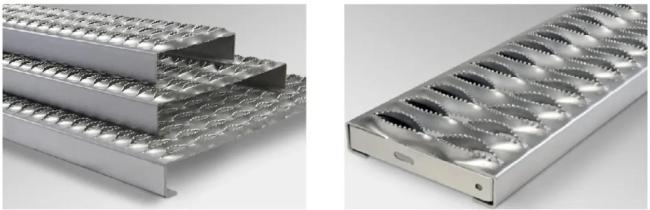

Plank Grating is a kind of anti slip one-piece safety steel grating with raised diamond or dimple design allowing for the drainage of fluids, mud, chips, debris through the floor or treads while retaining anti skidding surface.
We supply galvanized steel plank gratings in a wide variety of standard widths and channel heights, non-standard shapes and sizes also available for construction of non-slippery walkways, safety flooring and stair tread in various industries.
Widths & Depths
Grip Strut planks are available in a broad range of widths and depths for various applications and load requirements.
Standard widths include:
- 2 Diamond (4 ¾” wide)
- 3 Diamond (7” wide)
- 4 Diamond (9-1/2” wide)
- 5 Diamond (11-3/4” wide)
- 8 Diamond (18-3/4” wide)
- 10 Diamond (24” wide)
| Material | Low carbon steel ,Stainless steel sheet, Galvanized steel ,Aluminum metal | |||
| Thickness | 0.2mm--20mm | |||
| Aperture | 0.5--200mm | |||
| Size | 1200*2400mm 1220*2440mm 1000*2000mm Or cut to size | |||
| Hole shape | Rectangular, square, Diamond , round,Triangular,Louver, irregular hole | |||
| Hole arrangement | 90°staggered,45°staggered, 60°staggered , 90°straight | |||
| Surface treatment | Galvanized ,Powder coating, Anodized, Fluorocarbon coating | |||
| Application | Machinery,filtration,enclosure, equipment,handicrafts production, Stair and Floor | |||
Materials
Grip Strut planks are available in the following materials:
- Pre-galvanized steel, ASTM A924 G90, 14 or 12 gauge
- HRPO uncoated steel, ASTM A1011, 14 or 12 gauge
- 5052-H32 aluminum, ASTM B209, 12 gauge (.080) or 10 gauge (.100)
- 304 or 316L stainless steel, 16 gauge
Features:
Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.

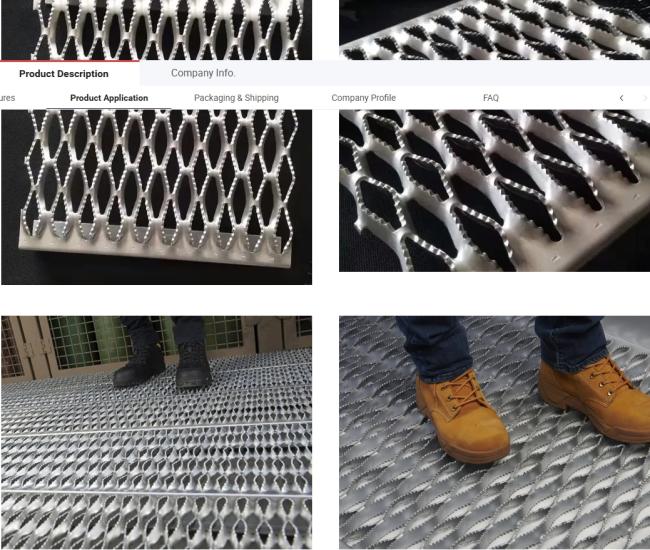

Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.
|

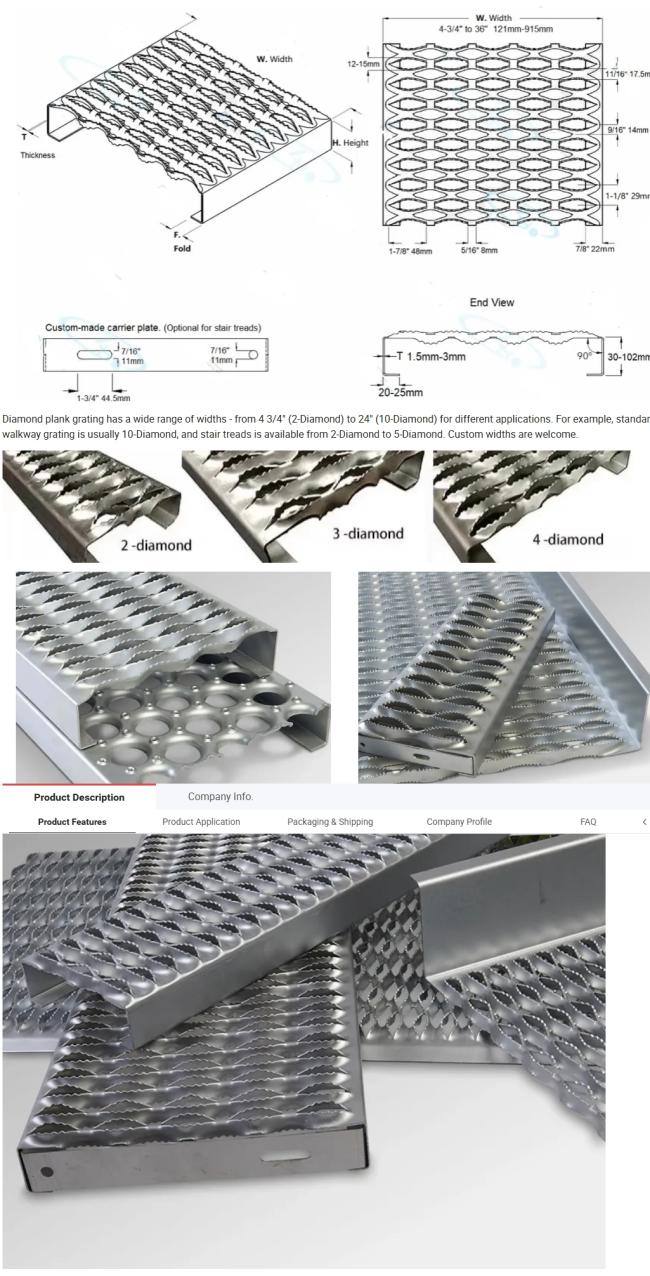

Structure
|
Plank thickness
|
Width
|
Channel height
|
Clear span
|
|
2-diamond |
14G
|
4-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
3-diamond |
14G
|
7"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
4-diamond |
14G
|
9-1/2"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
5-diamond |
14G
|
11-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
8-diamond |
14G
|
18-3/4"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
||
|
10-diamond |
14G
|
24"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
