Hot Sale Flexible Stainless Steel Rope Mesh Wire Rope Mesh
Price:
Negotiable
MOQ:
10 square meters
Delivery Time:
10-15 working days
Brand:
QIJIE
Product Description
Hot Sale Flexible Stainless Steel Rope Mesh Wire Rope Mesh
We can customize various stainless steel rope nets according to different needs of customers! Applicable to zoo fence, plant green wall net, railing fence net, complete anti-fall net, etc
The stainless steel rope mesh is made of stainless steel wire. The material of the wire is stainless steel: 201.304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh
Buckle type

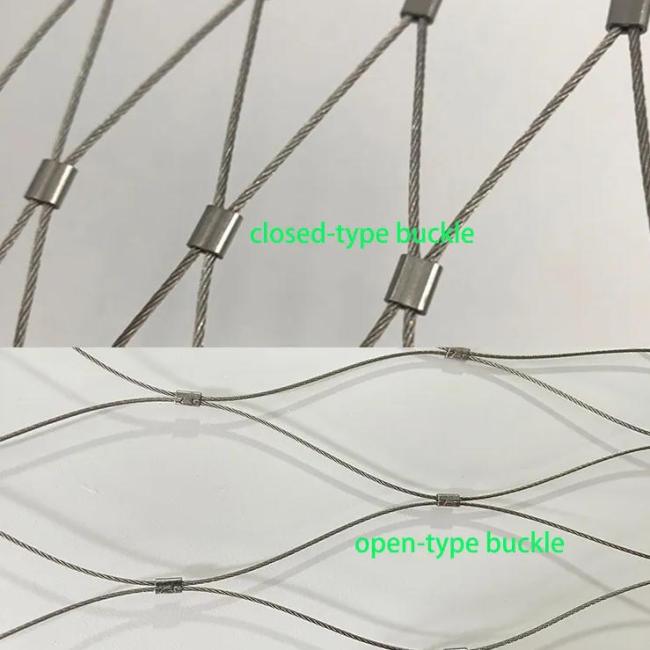

Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
Woven type
The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generallyfor animal enclosures in zoo applications because it is easier to see through it when viewing the animals
model | Steel wire mesh structure | Breaking force (KN) | Wire rope diameter (mm) | Mesh size (mm) |
BN32120 | 7*19 | 7.38 | 3.2 | 120*208 |
BN2470 | 7*7 | 4.18 | 2.4 | 70*102 |
BN20100 | 7*7 | 3.17 | 2.0 | 100*173 |
BN1680 | 7*7 | 2.17 | 1.6 | 80*140 |

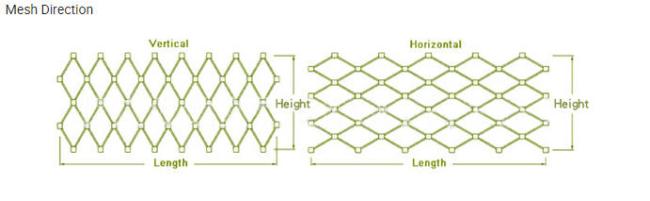

mesh direction-rope mesh

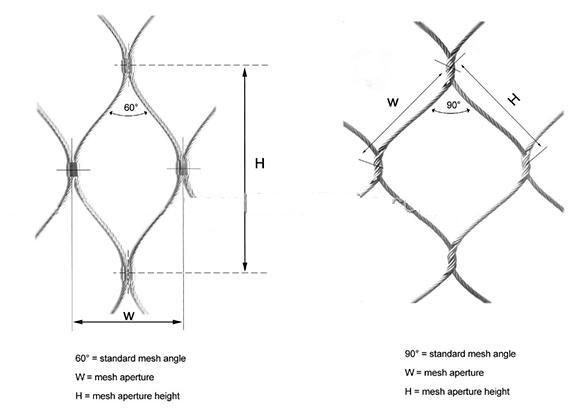

60°=stand mesn angle
90°=stand mesn angle
W=mesh aperture
H=mesh aperture height

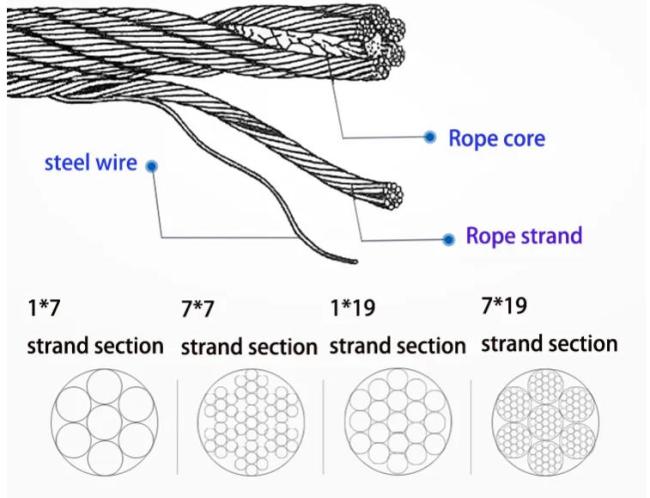

steel wire twisted into rope It is formed by tightening a plurality of rope strands around the rope core

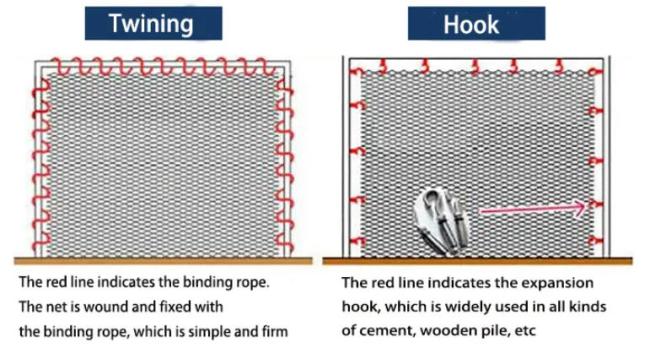

Installation diagram
