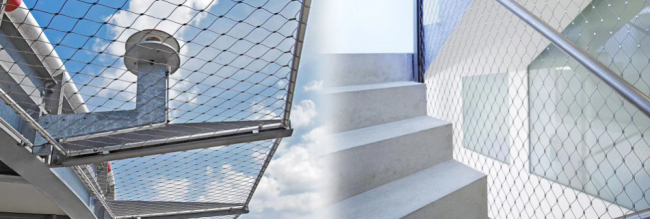

Flexible Stainless Steel Cable Mesh 304 316 Metal Wire Rope Mesh for Stair Railing
Price:
Negotiable
MOQ:
10 square meters
Delivery Time:
10-15 working days
Brand:
QIJIE
Product Description
Flexible Stainless Steel Cable Mesh 304 316 Metal Wire Rope Mesh for Stair Railing
Stainless Steel Rope Mesh

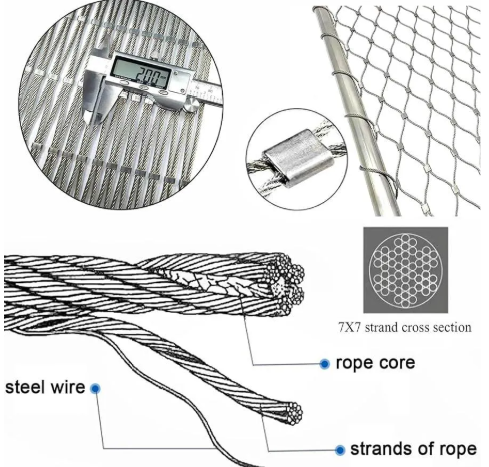

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.
Product Description
|
Product Name
|
Decoration Rope Wire Mesh
|
|
Material
|
304, 304L, 316, 316L
|
|
Wire diameter
|
1.0mm-3.0mm
|
|
Structure
|
7*7,7*19.
|
|
Mesh opening size
|
1"*1",2"*2",3"*3",4"*4".
|
|
Feature
|
Handle Made
Environmental Protection Extensive Use Premium Quality Direct from Factory Product Life Cycle Lifetime Support |
|
Packing
|
The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.
|
Weaving Method

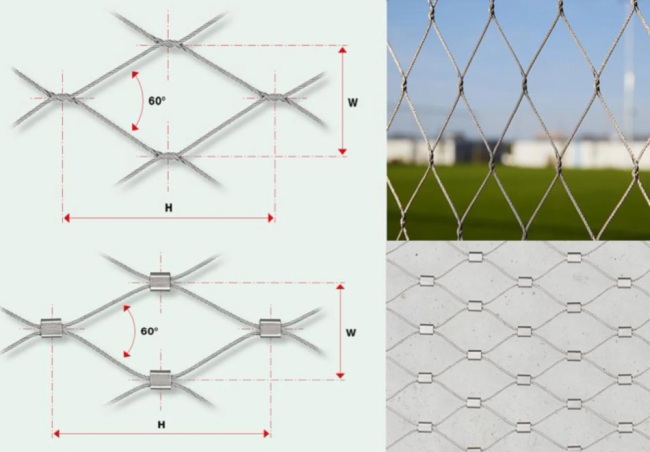

Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.
|
Code
|
Rope Construction
|
Rope Diameter
|
Opening Size
|
Breaking Force
|
||
|
Inch
|
mm
|
Inch
|
mm
|
KN
|
||
|
BR-01
|
7 × 19
|
1/8
|
3.2
|
4.7" × 4.7"
|
120 × 120
|
7.38
|
|
BR-02
|
7 × 19
|
1/8
|
3.2
|
4" × 4"
|
102 × 102
|
7.38
|
|
BR-03
|
7 × 19
|
1/8
|
3.2
|
3.6" × 3.6"
|
90 × 90
|
7.38
|
|
BR-04
|
7 × 19
|
1/8
|
3.2
|
3" × 3"
|
76 × 76
|
7.38
|
|
BR-05
|
7 × 19
|
1/8
|
3.2
|
2" × 2"
|
51 × 51
|
7.38
|
|
BR-06
|
7 × 7
|
3/32
|
2.4
|
4" × 4"
|
102 × 102
|
4.18
|
|
BR-07
|
7 × 7
|
3/32
|
2.4
|
3.6" × 3.6"
|
90 × 90
|
4.18
|
|
BR-08
|
7 × 7
|
3/32
|
2.4
|
3" × 3"
|
76 × 76
|
4.18
|
|
BR-09
|
7 × 7
|
3/32
|
2.4
|
2.4" × 2.4"
|
60 × 60
|
4.18
|
|
BR-10
|
7 × 7
|
3/32
|
2.4
|
2" × 2"
|
51 × 51
|
4.18
|
|
BR-11
|
7 × 7
|
5/64
|
2
|
3" × 3"
|
76 × 76
|
3.17
|
|
BR-12
|
7 × 7
|
5/64
|
2
|
2.4" × 2.4"
|
60 × 60
|
3.17
|
|
BR-13
|
7 × 7
|
5/64
|
2
|
2" × 2"
|
51 × 51
|
3.17
|
|
BR-14
|
7 × 7
|
5/64
|
2
|
1.5" × 1.5"
|
38 × 38
|
3.17
|
|
BR-15
|
7 × 7
|
1/16
|
1.6
|
3" × 3"
|
76 × 76
|
2.17
|
|
BR-16
|
7 × 7
|
1/16
|
1.6
|
2" × 2"
|
51 × 51
|
2.17
|
|
BR-17
|
7 × 7
|
1/16
|
1.6
|
1.5" × 1.5"
|
38 × 38
|
2.17
|
|
BR-18
|
7 × 7
|
1/16
|
1.6
|
1.2" × 1.2"
|
30 × 30
|
2.17
|
Feature
1.High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
5. The mesh size and diameter can be modif
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
5. The mesh size and diameter can be modif
