Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Perforated Anti-skid Grip Strut , Alligator Mouth Hole Checkered Plate made of high quality steel, aluminum and stainless
steel offers the high slip resistant surface. The surface of the plank has diamond-shaped holes with serrated tooth for
grabbing in every direction under practically all conditions. The holes can be different numbers and it provides the enough
air opening to drop the waste. Perforated Anti-skid Grip Strut , Alligator Mouth Hole Checkered Plate is easy and quick to
install, besides, high strength-to- weight performance offers a high load capacity. Perforated Anti-skid Grip Strut , Alligator
Mouth Hole Checkered Plate can lasts a long life and is ideal for oily environment and industry.
Application
1. The top wall of the building object can be used for the ceiling, filter plate and cavity plate.
2. Used for building
balconies, environmental tables and chairs.
3. Protective cover plate, punch net and round hole plate for mechanical
equipment
4. Used for grain, feed sieve plate, sieve sheet, microporous plate.
5. Used for the shelf mesh decoration of the shopping mall display table hole plate, porous plate, perforated plate.
|
Structure
|
Plank thickness
|
Width
|
Channel height
|
Clear span
|
|
2-diamond |
14G
|
4-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
3-diamond |
14G
|
7"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
4-diamond |
14G
|
9-1/2"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
5-diamond |
14G
|
11-3/4"
|
1-1/2"
|
2'; 2'-6"; 3'
|
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
12G
|
1-1/2"
|
2'; 2'-6"; 3'
|
||
|
2"
|
2'; 2'-6"; 3'; 4'
|
|||
|
8-diamond |
14G
|
18-3/4"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|
||
|
10-diamond |
14G
|
24"
|
2"
|
2'; 2'-6"; 3'; 4'
|
|
12G
|
2"
|
2'; 2'-6"; 3'; 4'
|

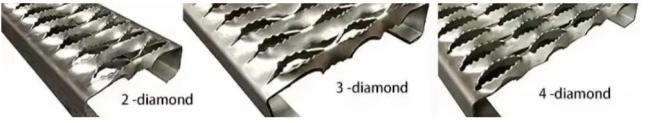

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.
Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.

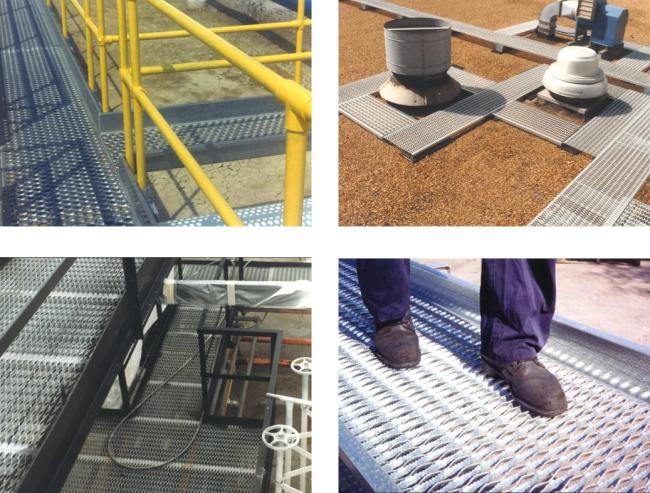

Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways
