High Strength Flexible Birds Aviary Cable Net 304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh

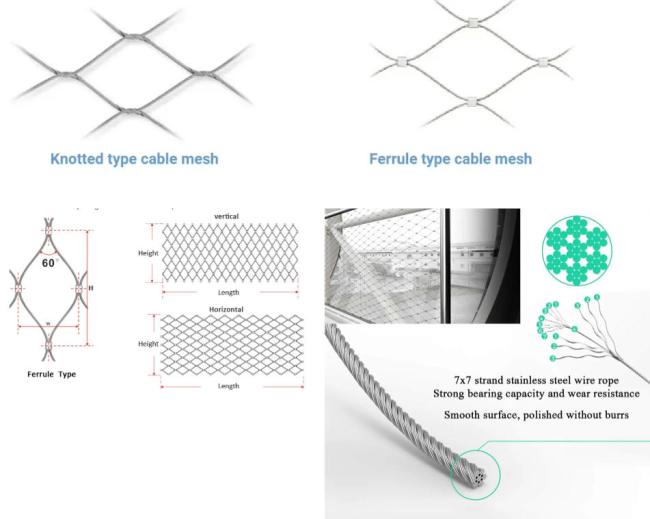

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
Stainless steel rope mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems.
|
Anti-theft 304 stainless steel wire rope mesh
|
SS 316 SS 304 Diamond Flexible Stainless Steel Wire Cable Net for zoo
|
|
Common material
|
SS304, SS316
|
|
Cable strand
|
7*7, 7*19
|
|
Special specification
|
According to clients' requirements
|
|
Feature
|
Flexibility, wear resistance, corrosion resistance.
|
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.

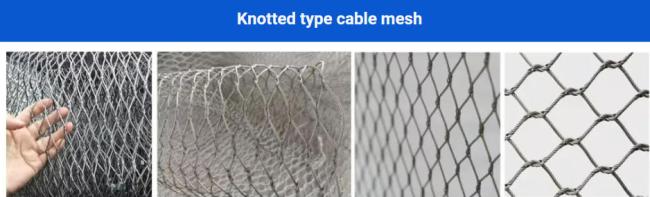

Knotted type cable mesh
Knotted type cable mesh is a type of inter-woven mesh fabricated from high tensile stainless steel cables in construction of 7 × 7 or 7 × 19. Compared with similar products, our range of knotted cable meshes have incomparable advantages in terms of practicability, security, durability, aesthetic property and life span as shown below:
1.Excellent security
2.Superb durability
3.Aesthetic property
4.Wide lifespan over 30 years
5.High versatility

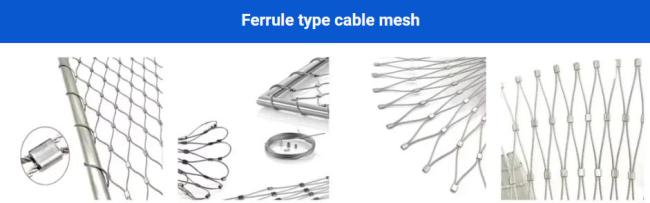

Ferrule type cable mesh
Ferrule type cable mesh has similar physical properties to knotted cable mesh, but different combination style - seamless ferrules that combine cables together to form a resilient metal fabric with rhombus holes. This flexible mesh gracefully adapts to your most challenging 3-D tensile projects and various applications owing to following advantages:
1.High transparency
2.High strength
3.Flexible & impact resistance
4.Non-flammable
5.Anti-climb
6.Easy installation & maintenance-free

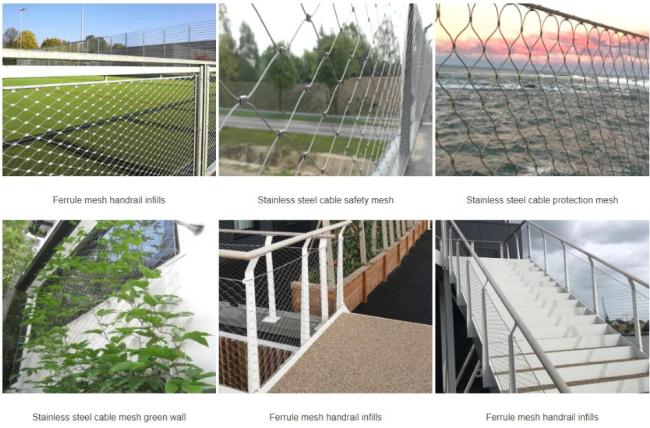

Application
The potential applications for stainless steel rope mesh are exceptionally varied both indoors and outdoors. It is used as balustrade in-fill, plant support, observation platform safety fence, tensile facade, zoo enclosure, divider, horizontal or vertical fall protection.

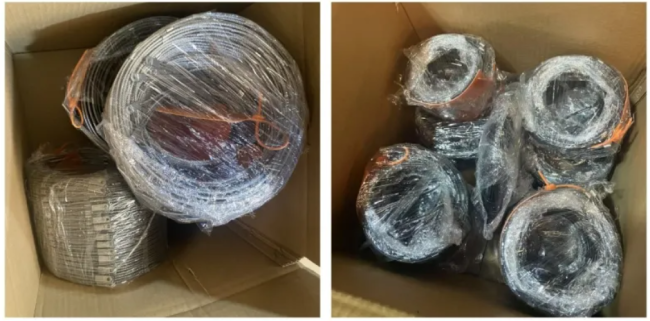

Packaging & Shipping
