Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh





Stainless steel cable netting.

also called X-TEND mesh/Webnet, is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with tinned copper (type CX) or stainless steel (types CXE and CXS) clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. X-TEND keeps its shape indefinitely and stands for long lasting use.
X-TEND is fabricated from high-quality and robust stainless steel cables (material: AISI316). These are linked together by a special method using stainless steel ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. X-TEND keeps its shape indefinitely and requires little maintenance only during its long lifetime.

Standard areas
Rope diameter	Mesh Width
1,0 mm	25 mm - 200 mm
1,5 mm	18 mm - 200 mm
2,0 mm	30 mm - 400 mm
3,0 mm	40 mm - 400 mm

Mesh geometry

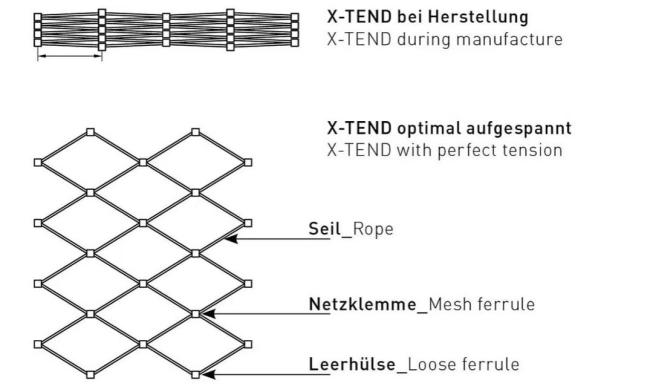

The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.

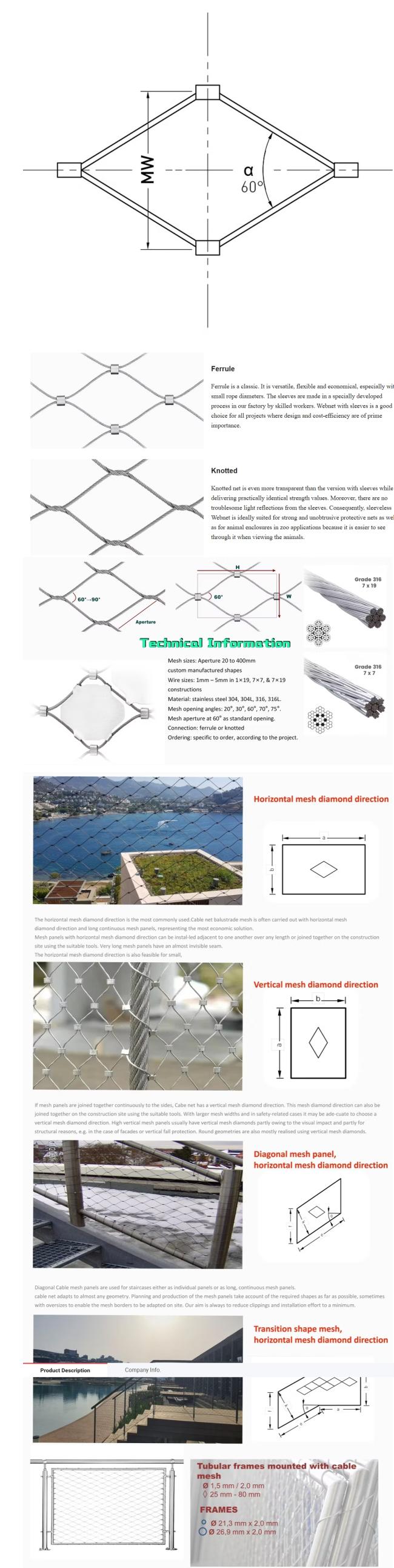

MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °

Main Features:

1. Expertly clipped mesh securely affixed to robust cable.

2. Customizable hole size and diameter to match your precise requirements.
3. Tailored to customer specifications and rigorously statically tested - ideal for sophisticated facade applications.
4. Unmatched strength and toughness with easy handling for free-angle curving, folding, transportation, and installation.
5. Exceptional anti-corrosion properties and rust resistance, designed for repeated use and longevity.
6. Engineered to withstand chewing by rodents and pests, featuring a tensile strength of approximately 100-110,000 PSI.
7. Built to endure heavy snow loads and withstand powerful gale-force winds.
8. Non-toxic materials ensure safety and commitment to environmental protection.

Feature:

• Stainless steel provides the highest corrosion resistance.
• Elegant and robust.
• Light, robust yet transparent.
• UV and weather resistant.
• Flexible and pliable.
• Climb resistant and prevents a secure foothold.
• The minimum visual impact on views.
• Recyclable.
• Good price-benefit-ratio.
• Easy installation and low maintenance.
• Weave opening, meet any exact specification.
