OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine
Price:
Discuss
MOQ:
1pcs
Delivery Time:
15-18days
Brand:
Qijie
Product Description
OEM Size Full Automatic High Speed Double Wires Mesh Chain Link Fence Machine
high-performance Chain Link Fence Machine
Diameter 1.3-4.5mm galvanized wires, PVC coated wires ensure durability.
Raw material tensile strength: 350-800MPA for robust construction.
Efficient weaving powered by a servo motor for precision.
Advanced PLC and touch screen for seamless control.
Automatic twisting or knuckling edge, automatic mesh rolling.
Ideal for airport, playground, highway, and railway fencing.
Specification
|
The Main Motor is two sets servo motor,the controller is Mitsubishi PLC,CNC touch screen
|
||
|
Function
|
Weave+Lock+Roll
|
|
|
Control Cabinet
|
Mitsubishi PLC 7 Inch touch screen
|
|
|
Lock Edge
|
Both Knuckle and twist
|
|
|
Wire Diameter
|
1.5mm to 4.5mm Wire work with reasonable opening
|
|
|
Mesh opening
|
25mm-100mm 40mm-150mm Customized Open work with reasonalble wire
|
|
|
Materials of Wires
|
GI wire, Hot-dipped Wire,PVC wire, Stainless Wire
|
|
|
Production Capacity eg.2M wide ot fence
|
30mmx30mm 40-60m2/h
|
40mmx40mm 40-60m2/h
|
|
40mmx40mm 80-100m2/h
|
40mmx40mm 80-100m2/h
|
|
|
50mmx50mm 120-160m2/h
|
50mmx50mm 120-160m2/h
|
|
|
60mmx60mm 150-180m2/h
|
60mmx60mm 150-180m2/h
|
|
|
75mmx75mm 180-200m2/h
|
75mmx75mm 180-200m2/h
|
|
|
100mmx100mm 200-260m2/h
|
100mmx100mm 200-260m2/h
|
|
Model: A134 for superior performance.
Wire diameter range: 1.6-4.5mm for versatile applications.
Mesh opening size: 25mm-100mm for flexible design.
Mesh width: 500-6000mm for extensive coverage.
Voltage: 380V/50HZ for optimal operation.
Raw material: Galvanized wire, PVC coated wire, etc.

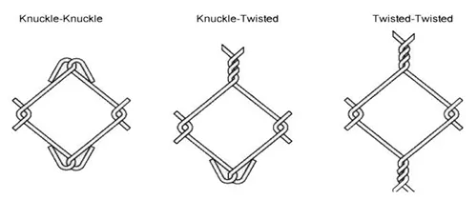

Mesh side options: Knuckled and twisted, knuckle, or twisted.
Machine output: H40mm/70-80, 50mm/100-120, 60mm/150-180, 75mm/180-200, 100mm/260-300
OPERATING PRINCIPLE:
Utilizes double molds, two wires weave together for efficient mesh production.
Innovative design integrates dual and single wire strengths for increased output.
Innovative design integrates dual and single wire strengths for increased output.
Flexible Mesh Dimensions:
Produces mesh widths from 500-3000mm and lengths up to 30m or customized specifications
Efficient Roll Formation:
Automated rolling system creates compact, easy-to-handle mesh rolls
Specification
|
TECHNICAL PARAMETERS
|
|||
|
Netting Width Specification
|
2M
|
3M
|
4M
|
|
No. Of Input Wires
|
1
|
||
|
Capacity(Based On Mesh Size 50mm*50mm)
|
60-70M2/H
|
||
|
Power Supply
|
380V 50Hz (Other Requirements Can Be Custom-Made)
|
||
|
Speed Of The Axle Of The Shaped Knife
|
200-700RPM
|
||
|
Suitable Wire To The Machine
|
Galvanized Wire, PVC Wire, Steel Wire
|
||
|
Diameter Of Wire
|
1.6-4.0Mm(Depend On The Mesh Size)
|
||
|
Power Consumption
|
7.17Kw, 5 Motors(Based on 4M, It relates to the Dia. of wire, and the power can be custom-made.)
|
||
|
Mesh Size
|
25*25mm-100*100mm (if the mesh size is 25*25mm, the steel wire should be all soft)
|
||
|
Weight Of Equipment
|
2.2T
|
2.5T
|
3.0T
|
|
Main Machine Outer Size
|
4.8M*1.1M*2.3M
|
5.5M*1.1M*2.3M
|
6.5M*1.1M*2.3M
|
|
Auxiliary Machine Outer Size
|
2.5M*1.5M*1.1M
|
4M*1.5M*1.1M
|
4.5M*1.5M*1.1M
|
|
The Color Of The Machine
|
Can Be Custom-Made
|
||
|
Max. Winding Capacity
|
30 Meters Per Roll
|
||
INTELLIGENT PRODUCTION CONTROL
Automated Wire Joining:
A Sophisticated joining mechanism ensures a seamless connection between wire segments
Transportation & Storage Optimization:
Mesh Compacting System: Integrated shrinking machine reduces mesh volume for cost-effective transportation and storage
COMPREHENSIVE INDUSTRIAL APPLICATIONS
Airport Perimeter Fencing:
High-security applications requiring robust, reliable barrier solutions
Railway Security Systems:
Durable fencing for transportation infrastructure protection
Highway Safety Barriers:
Weather-resistant fencing for roadway safety and boundary demarcation
Commercial & Industrial Security:
Professional-grade fencing for factories, warehouses, and commercial properties
