Nail Manufacturing Machine Suppliers, Steel Nail Making Machine Price
Wide Usage Full Automatic Steel Nail Making Machine
SUMMARY:
1.Certify by CE and ISO 9001
2.Nail making machine main parts(shaft,cam,gear) are made of high grade steel with professional heatreatment,so as to ensure longer working life and less time maintance.
3.Each model machine could make different kinds size nail,the nail length could adjust on machine and nail diameter need feed with related diameter coil wire
4.Each nail making machine supply related nail mould ,nail knife and punch pin ect spare parts
MACHINE SPECIFICATION:
| parameter | unit | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Dia of nail max | mm | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | mm | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 150 | 100 | 80 | 50 | 25 |
| Length of nail min | mm | 80 | 50 | 30 | 16 | 9 |
| Dsigned out put | pcs/min | 200 | 260 | 320 | 350 | 450 |
| Moter power | kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 2500 | 2000 | 1400 | 1200 | 560 |
| Overall dimensions | mm | 2800x1800x1800 | 2200x1600x1650 | 2000x1400x1400 | 1700x1300x1400 | 1500x1300x1200 |
Process flow of making mails: Wire rod -- wire drawing ---nail making-nail polishing-finished nails.

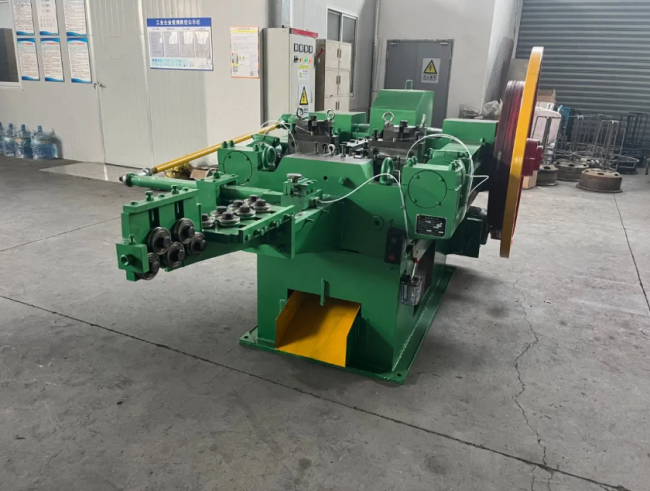

Nail Making Machine Z94-4C
This new generation Z94-4C nail making Machine can make nail length 2"-4" and nail diameter 4.5mm-2.8mm.
It adopts plunger type structure to ensure the high speed, low noise, less blunt acoustic.It has advanced
design, compact structure, beautiful appearance, easy operation, safety and other features.
It is popular among our customers, with stable quality and reasonable price
| Model: | Z94-4C |
| Diameter of Nail | 4.5-2.8mm |
| Length of Nail | 2"-4" |
| Designed Capacity | 280pcs/min |
| Motor Power | 4kw |
| Weight | 2000kg |
| Overall Size | 212x154x159cm |
