High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield
High Zinc Galvanized Steel Wire Mesh Putanka Anti Tank Barrier Battlefield
Discreet yet highly effective, this security barrier is widely used for border protection and defense.
|

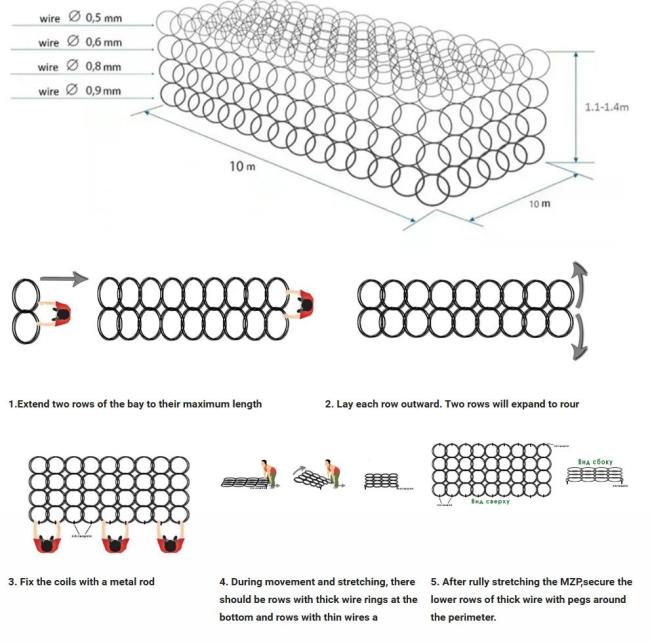

Specifications of Anti Tank Wire Mesh
|
|
|
Unfolded Size After Installation
|
10x10x1.4m
|
|
Wire diameter
|
0.5, 0.6, 0.8, 0.9 mm for 5689 type
0.5, 0.5, 0.8, 0.8 mm for 5588 type |
|
Folded dimensions
|
1200 mm x 500 mm x 200 mm
|
|
Package weight without rings and peg
|
15 KGS / 30 KGS, 12.5 KGS / 25 KGS
|
|
Accessories For Installation
|
40 pcs of metal rings and 40 pcs of metal pegs
|
|
Loading Capacity
|
800 packs loaded in each 40ft HC Container
|
Technical barriers are designed for
※ Stopping the advance of the attacker;
※ Slowing down his maneuver;
※ Causing him losses in life and equipment;
※ Creating mainly good conditions for the security forces to detain or eliminate the violator.
Technical characteristics of an inconspicuous wire network (mess):
| Parameter | Meaning |
| Unfolded dimensions | 10x5x1.4 m |
| Wire diameter / number of garlands; | 0.9 mm / 20 pieces 0.8 mm / 20 pieces 0.6 mm / 20 pieces 0.5 mm / 20 pieces twist - 0.8 mm |
| Folded dimensions | 1.2x0.6x0.8 m |
| Package weight without rings and peg | 12 kg |
| Complete set of the MZP package with rings and pegs | 40 pieces |
How much space does PZP Putanka take in a car body?
Here are the measurements of the batch of MZP Putanka (20 sets):
| MZP 20 sets | Rings and pegs | |
| Length, m | 0.98 | 0.2 |
| Width, m | 0.68 | 0.4 |
| Height, m | 0.75 | 0.4 |
| Volume, m 3 | 0.4998 | 0.032 |
20 sets will take up a volume of 0.5318 m3 (0.026 m3/set).
The appearance of the fence, pegs and rings may differ from that on the site, depending on the equipment on which this batch is produced.
If you need to buy an inconspicuous obstacle of a specific appearance, then give written requirements for the type of confusion.
The main advantages of invisible wire obstacle:
※ Inconspicuous in the territory;
※ Several types of installation are possible: in the plane of the territory, in the fence, in the wall and also on the roof of the structure;
※ Considered an insurmountable obstacle in the line of movement of persons, wheeled as well as crawler and wheeled equipment;
※ Guarantees operational formation within the protection boundary;
※ Low cost of the package.
