Galvanized/PVC Coated Construction Filter Aviary Welded Mesh Direct Factory

Price Negotiable
Price: USD9.90-USD45.90
MOQ: 50 rolls
Delivery Time: 10-25days
Brand: QiJie
Product Description

Galvanized/PVC Coated Construction Filter Aviary Welded Mesh Direct Factory​



Product Description:

Welded wire mesh have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster, the mesh does not come loose even if cut in parts or being exerted force on parts, Compared with general iron wire, welded mesh are better in respects of anti-corrosive and anti-rust.

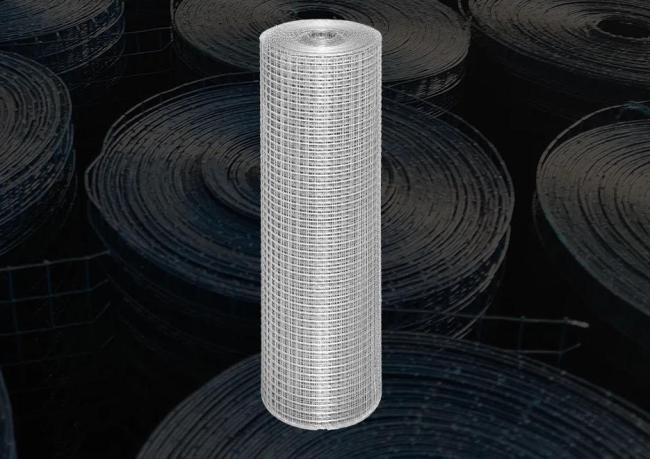

Welded Wire Plaster Wall Mesh

Applications:

Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.





Product Parameters

Specification of Welded Wire Mesh
Hole Size Wire
Diameter
Wide

Electric galvanized before welded,

Electric galvanized after welded,

Hot dipped galvanized before welded,

Hot dipped galvanized after welded,

PVC coated,

Stainless steel wire
(SUS304,SUS316,SUS316L);
In inch In metric unit
1/4''X1/4'' 6.4mmX6.4mm BWG24-22 0.3-2.5m
1/4''X1/2'' 6.4mmX12.7mm BWG24-22 0.3-2.5m
1/4''X1'' 6.4mmX25.4mm BWG24-22 0.3-2.5m
1/3''X1/3'' 8.5mmX8.5mm BWG24-18 0.3-2.5m
3/8''X3/8'' 9.5mmX9.5mm BWG22-19 0.3-2.5m
1/2''X1/2'' 12.7mmX12.7mm BWG23-16 0.3-2.5m
3/4''X3/4'' 19.1mmX19.1mm BWG21-16 0.3-2.5m
1/2''X1'' 12.7mmX25.4mm BWG21-16 0.3-2.5m
1-1/2''X1-1/2'' 38mmX38mm BWG19-14 0.3-2.5m
1''X1'' 25.4mmX25.4mm BWG19-14 0.3-2.5m
2''X2'' 50.8mmX50.8mm BWG15-12 0.3-2.5m
4''X4'' 101.6mmX101.6mm BWG15-12 0.3-2.5m
Note: Special specification can be made according to customer's requires.

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Specification
Opening
Wire Diameter










Width 0.4-2m
Length 5-50m








electric galvanized before welded,
electric galvanized after welded,
hot-dipped galvanized before welded,
hot-dipped galvanized after welded,
PVC coated,
Stainless steel wire
Inch
Metric Unit
1/4"x1/4"
6.4mmx6.4mm
BWG24-22
3/8"x3/8"
10.6mmx10.6mm
BWG22-19
1/2"x1/2"
12.7mmx12.7mm
BWG23-16
5/8"x5/8"
16mmx16mm
BWG21-18
3/4"x3/4"
19.1mmx19.1mm
BWG21-16
1"x1/2"
25.4mmx25.4mm
BWG21-16
1-1/2"x1 1/2"
38mmx38mm
BWG19-14
1"x2"
25.4mmx12.7mm
BWG16-14
2"x2"
50.8mmx50.8mm
BWG15-12
2"x4"
101.6mmx101.6mm
BWG15-12
4"x4"
101.6mmx152.4mm
BWG15-12
4"x6"
101.6mmx152.4mm
BWG15-12
6"x6"
152.4mmx152.4mm
BWG15-12
6"x8"
15.4mmx203.2mm
BWG14-12
Note:Special specification can be made according to customers requires



SURFACE TREATMENT

1.Electrical zinc coating mesh

First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

2.Pre Galvanized mesh

Use the hot dip gal. wire direct do the welding,cutting the edge of the panel which can make sure the edge is smooth and not hurt your hands,packing

3.Hot dip galvanized mesh

First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

4.PVC coated welded wire mesh
Black wire + PVC coated
Galvanized wire+PVC coated

Welded Wire Plaster Wall Mesh

Feature of plastering welded wire mesh:

1. economic and good looking

2. anti-corrosion and long service life

3. wide scope of using

Welded Wire Mesh Welding style:

Hot dipped galvanized after or before welding

Electro galvanized after or before welding

Weaving and characteristics:

Hot dipped galvanizing after welding

Welding with hot dipped galvanized iron wire

Electric galvanizing after welding

Welding with electric galvanized iron wire

PVC coated welded wire mesh

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Welded Wire Plaster Wall Mesh Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
