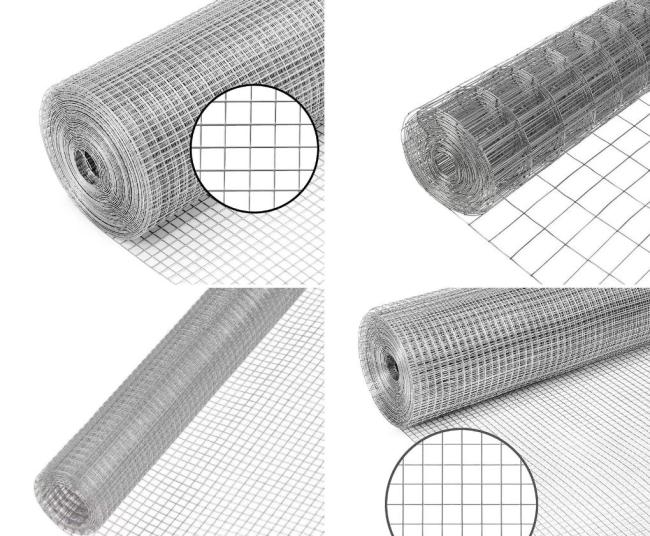

ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh
ASTM 1/8-4 Inches Galvanized PVC Coated Stainless Steel Welded Wire Mesh
Product Description:

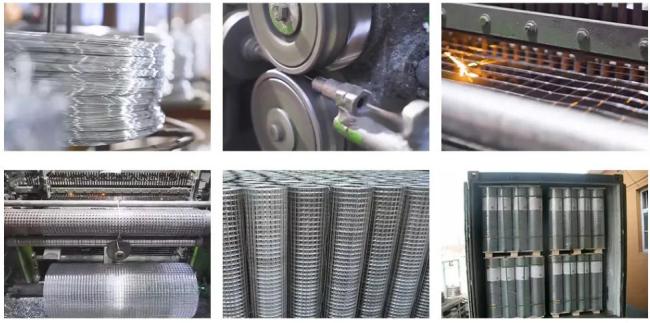

Another type galvanized welded wire mesh is electro galvanized welded wire mesh. Different from hot-dipped galvanized welded wire mesh, electro galvanized welded wire mesh is made of low carbon steel wire through automatic digital controlled welding equipments. It is welded with plain steel wire, then electric galvanized after welding. The finished products are level and flat with sturdy structure.
Mostly they are electro galvanized after welding (GAW), it can offer superior corrosion resistance compared to low carbon steel without the expense of stainless steel. This type of welded wire mesh is designed for building fencing and in other infrastructural purposes. It is a corrosion resistant wire mesh that is largely used in structural building. It is also available in different forms like rolls and panels for industrial uses.
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
| Mesh size | Wire gauge diameter | ||
|---|---|---|---|
| in mm | in inch | BWG No. | mm |
| 6.4 | 1/4 | 24-22 | 0.56- 0.71 |
| 9.5 | 3/8 | 23-19 | 0.64 - 1.07 |
| 12.7 | 1/2 | 22-16 | 0.71 - 1.65 |
| 15.9 | 5/8 | 21-16 | 0.81 - 1.65 |
| 19.1 | 3/4 | 21-16 | 0.81 - 1.65 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81 - 1.65 |
| 25.4 | 1 | 21-14 | 0.81 - 2.11 |
| 38.1 | 1 1/2 | 19-14 | 1.07 - 2.11 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47 - 2.11 |
| 50.8 | 2 | 16-12 | 1.65 - 2.77 |
| 50.8 to 305 | 2 to 12 |
|
Specification
|
||||
|
Opening
|
Wire Diameter
|
Width 0.4-2m
Length 5-50m
|
electric galvanized before welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
|
Inch
|
Metric Unit
|
|||
|
1/4"x1/4"
|
6.4mmx6.4mm
|
BWG24-22
|
||
|
3/8"x3/8"
|
10.6mmx10.6mm
|
BWG22-19
|
||
|
1/2"x1/2"
|
12.7mmx12.7mm
|
BWG23-16
|
||
|
5/8"x5/8"
|
16mmx16mm
|
BWG21-18
|
||
|
3/4"x3/4"
|
19.1mmx19.1mm
|
BWG21-16
|
||
|
1"x1/2"
|
25.4mmx25.4mm
|
BWG21-16
|
||
|
1-1/2"x1 1/2"
|
38mmx38mm
|
BWG19-14
|
||
|
1"x2"
|
25.4mmx12.7mm
|
BWG16-14
|
||
|
2"x2"
|
50.8mmx50.8mm
|
BWG15-12
|
||
|
2"x4"
|
101.6mmx101.6mm
|
BWG15-12
|
||
|
4"x4"
|
101.6mmx152.4mm
|
BWG15-12
|
||
|
4"x6"
|
101.6mmx152.4mm
|
BWG15-12
|
||
|
6"x6"
|
152.4mmx152.4mm
|
BWG15-12
|
||
|
6"x8"
|
15.4mmx203.2mm
|
BWG14-12
|
||
|
Note:Special specification can be made according to customers requires
|
||||
SURFACE TREATMENT
1.Electrical zinc coating mesh
2.Pre Galvanized mesh
3.Hot dip galvanized mesh
4.PVC coated welded wire mesh
Black wire + PVC coated
Galvanized wire+PVC coated
Feature of plastering welded wire mesh:
1. economic and good looking
2. anti-corrosion and long service life
3. wide scope of using
Welded Wire Mesh Welding style:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
Weaving and characteristics:
Hot dipped galvanizing after welding
Welding with hot dipped galvanized iron wire
Electric galvanizing after welding
Welding with electric galvanized iron wire
PVC coated welded wire mesh
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
