1/2", 1.4mm SUS304 Stainless Steels Welded Wire Mesh for Constructionist Chicken Duck Geese Rabbit Cage

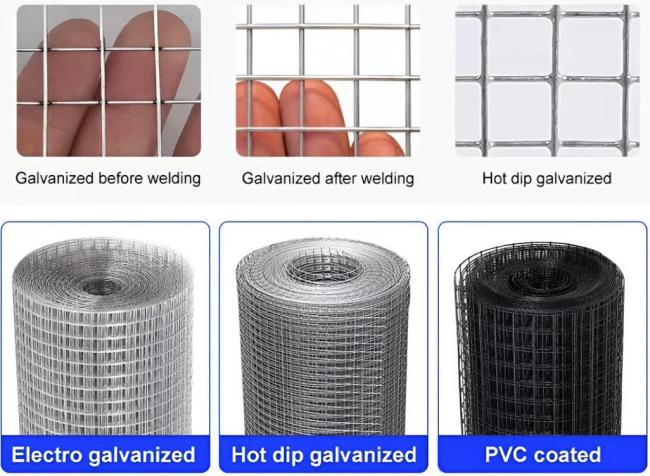

Welded wire mesh panels material: black iron wire, galvanized before welding, galvanized after welding, hot-dipped galvanized welding, PVC coated, PE Coated, Powder coating. Welded wire mesh panels made from galvanized wire or black iron steel wire can also be PVC-coated or powder-coated to shield them from corrosion and rust.
Welded wire mesh panels can be used for a wide range of applications, usage as below: security cages, security fencing, metal fencing, dog fencing, animal enclosures, aviaries, bird cages, pet hutches, cat fences, pond covers or protection, garden fencing, and construction materials.
Welded wire mesh is high-quality low low-carbon steel wire welded row, and then cold plating (electroplating), hot galvanized, PVC-coated surface passivation, and plastics processing. To achieve a smooth surface, uniform mesh, strong joints, local good mechanical properties, stability, corrosion corrosion resistance.
Material:Low carbon steel wire, Stainless steel 302, 304, 304L, 316, 316L, Special materials, specifications can be customized according to customer requirements
|
Specification
|
||
|
Opening
|
Wire Diameter
|
|
|
Inch
|
metric Unit(mm)
|
|
|
1"x1"
|
25mmx25mm
|
2.5mm,2.0mm,1.8mm,1.6mm
|
|
2"x2"
|
50mmx50mm
|
2.5mm,2.0mm,1.8mm,1.6mm
|
|
2"x3"
|
50mmx70mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
|
|
2"x4"
|
50mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
|
|
2"x6"
|
50mmx150mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
2"x8"
|
50mmx200mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
3"x3"
|
75mmx75mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
|
|
3"x4"
|
75mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
|
|
4"x4"
|
100mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
5"x5"
|
125mmx125mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
6"x6"
|
150mmx150mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
Technical Note:
|
||
|
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m
2.Special size available at request |
||
|
Specification of Welded Wire Mesh
|
||||
|
Opening
|
|
0.4-2M Length 5-50m |
electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
|
In inch
|
In metric unit
|
|||
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
||
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
||
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
||
|
5/8" x 5/8"
|
16x 16mm
|
BWG21-18
|
||
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
||
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
||
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
BWG19-14
|
||
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
||
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
||
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
||
|
4" x 4"
|
101.6 x 101.6mm
|
BWG15-12
|
||
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
||
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
||
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
||
|
Note: Special specifications can be made according to customers requires.
|
||||
>low carbon steel wireQ195
>galvanized iron wire
>pvc coated iron wire
>stainless steel wire
> Welded Stainless Steel Wire Mesh Panels
>Hot-dip Zinc Plating Welded Mesh Panels
>PVC coated Welded Mesh Panels
>Galvanized welded wire mesh rolls
>Pvc coated welded wire mesh rolls
> High intensity anti-high temperature.
> Better strength and strong integration
> Flat & even surface and strong structure
> Anti-rust property
>Not easy to loosen even be cut into parts or exerted force on the parts
b>Hot dipped galvanizing after welding
c>Welding with iron wire
d>Electric galvanizing after welding
e>PVC coated welded wire mesh panel
| Welded wire mesh | |
| Material | Galvanized wire |
| surface | Surface passivation of cold plating (electroplating), hot plating, PVC, etc |
| wire diameter | 0.5-14mm |
| Aperture | 6-50mm |
| width | 1-2 meters or customized |
| length | 5-50 meters or customized |
| application | Industry, agriculture, breeding, construction, transportation, mining, etc. |
| Wire Diameter(mm) | Aperture (mm) | Width(m) | Length | |
| Inch | MM | |||
| 2.0mm-3.2mm | 1" | 25.4 | 0.914m-1.83m | commonly under 6 m per piece if loaded in 20', commonly under 12 m per piece if loaded in 40', |
| 2.0mm-4.5mm | 2" | 50.8 | 0.914m-2.75m | |
| 2.0mm-6.0mm | 3" | 70.2 | 0.914m-2.75m | |
| 2.0mm-6.0mm | 4" | 101.6 | 0.914m-2.75m | |
| 2.0mm-6.0mm | 5" | 127 | 0.914m-2.75m | |
| 2.0mm-6.0mm | 6" | 152.4 | 0.914m-2.75m | |
| 2.0mm-6.0mm | 7" | 177.8 | 0.914m-2.75m | |
| 2.0mm-6.0mm | 8" | 203.2 | 0.914m-2.75m | |
5. Welded wire mesh Packing:
>About welded wire mesh panel in wooden or steel pallet,50 to 500 piece per pallet.
>About welded wire mesh roll in water-proof paper.
(customer's packing is available on request.
