High Speed CNC 800ton Punch Machine with Mold for Steel for Sale

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 15-18days

Brand: qijie

Product Description

High Speed CNC 800ton Punch Machine with Mold for Steel for sale.

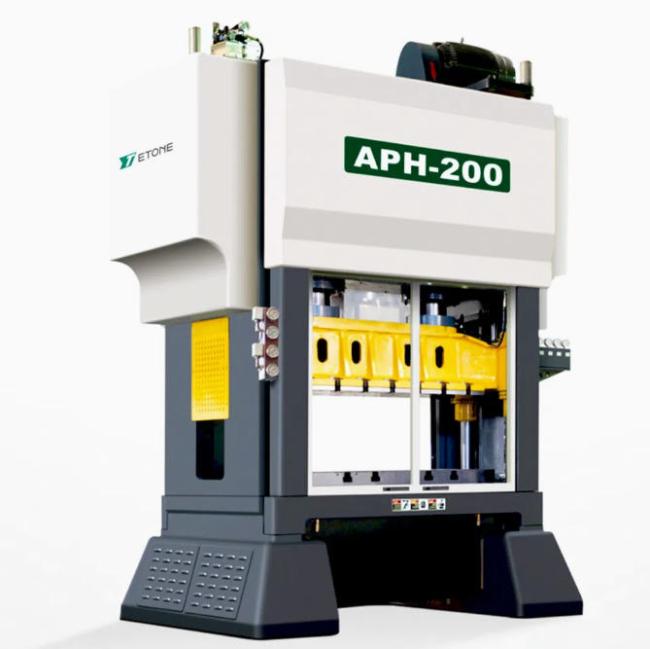

APH SERIAL IS ONE IMPORTANT HIGH SPEED HIGH PRECISION POWER PRESS FROM ETONE, WE DO NOT ONLY PROVIDE POWER PRESS, BUT ALSO OFFER FEEDER,MOLD AND WHOLE PRODUCTION SOLUTIONS BASED ON CLIENTS' REQUESTS.

Straight arm frame, a small amount of symmetrical deformation before and after, most suitable for continuous precision die machining; Get rid of shortcomings of the open throat of the C-type Press frame, saving the maintenance cost of the die

ACCESSORIES

Standard Unit

* High-performance dry clutch & brake
* The standard operating system:
Electronic crank angle led display
Electronic speed-led display
* Operation Mode Selection: Off/inching/safety one stroke/continuous
* Hlydraulie overlaad protector
* Frequency conversion
* Overrun detector
* Portable 2 hand push
* Double solenoid valve
* Automatic slide adjust devices
* Digital die height indicator (unit 0. 1mm)
* Automatic lubrication system
* Total counter, 6 digits
* Preset counter,6 digits
* Maintenance counter, 6 digits
* Life counter, 6 digits
* Electronic rotary can switch (6 spare channels)
* Air ejector/2'one channel
* Air source receptacle/2'two channel
* Missfeed detection circuit
* Power Receptacle

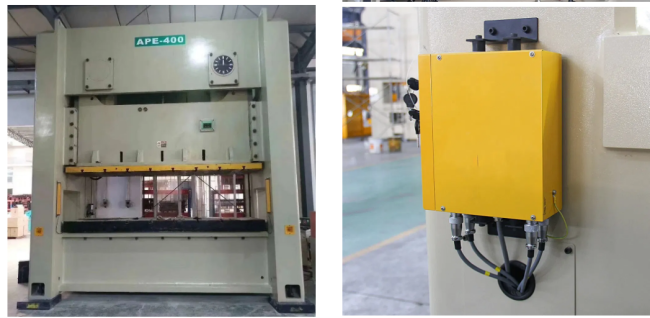

Specification	APE-160		APE-200		APE-250		APE-300		APE-400 APE-500 APE-600
Model	S	H	S	H	S	H	S	H	S	H	S	H	S	H
AA	2590		3000		3700		3700		4100		4300		4700
AB	2240		2700		3350		3350		3750		3900		4250
AC	1800		2200		2500		2500		3200		3300		3500
AD	1880		2290		2800		2800		3300		3450		3650
AE	1600		1850		2100		2100		2800		2900		3100
BA	1400		1750		1800		1800		2100		2300		2550
BB	1200		1550		1450		1450		1940		2050		2200
BC	700		900		900		900		900		1000		1100
BD	2150		2500		2950		2950		3129		3750		3900
HA	800		900		1000		1000		1200		1200		1200
HB	450	400	500	450	550	450	550	450	550	450	580	480	600	500
HC	190	130	250	150	280	170	300	170	300	170	300	180	300	180
HD	3400	3300	3750	3600	4250	4040	4400	4170	5195	4965	5870	5620	6100	5870
HF	900		900		1000		1000		1150		1150		1150
HE	450		600		600		600		600		600		600

	APE-160			APE-200		APE-250		APE-300		APE-400		APE-500		APE-600
Mode		S	H	S	H	S	H	S	H	S	H	S	H	S	H
Capacity	Ton	160		200		250		300		400		500		600
Pated Teneage Point	Mm	6	3	6	3	7	3	7	3	7	3	10	6	10	6
Stroke	Min	180	130	250	150	280	170	300	170	300	170	300	180	300	180
Speed Changing	S.P.M	30-55	40-85	20-50	35-70	20-40	30-60	20-35	30-50	20-30 20-40		18-25	20-30	15-25	20-30
Max. Die, Hight	Mm	450	400	500	450	550	450	550	450	550	450	580	480	600	500
Slide Adjustment	Mm	00		120		20		20		120		120		120
Slide Area	Mm	1600×650		1850×750		2300×900		2300×900		A:2300×1000		3000X1000		3200X1100
										8:2500×1000
										C:2900×1000
Bohtrr Area	Mm	1800X760		2200×940		2500X1000		2500×1000		A:2500×1000		3300X1200		3500X1200
										B:2800×1000
										C:3200×1000
Side Opening	Mm	700×450		900×600		900×600		900×600		900X600		000X750		1100X750
Main Motor	KwxP	15×4		18.5×4		22×4		30×4		37X4		45X4		55X4
Slide Adjust Device	KwxP	1X 4		2×4		2X4		2×4		2X4		3X4		1X4
Air Pressure	Kg/Cm2	6		6		6		6			6	6			6
Presses Precision	GB(IS)1Dass
