358 Security Fence Panel Anti Climb High Security Perimeter Fence Clear View Welded Mesh Fence System for Prison Industrial
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
15-25days
Brand:
XMESH
Product Description
358 Security Fence Panel Anti Climb High Security Perimeter Fence Clear View Welded Mesh Fence System for Prison Industrial
Product Description
The Clear View Fencing panels are available in widths of 3 meters and heights ranging from 1.8 meters, 2.1 meters, 2.4 meters, to 3 meters, offering a selection of various finishing coating options.
Choose from 4 options: pre-galvanized, hot-dip galvanized, polyester powder (powder coated), plascoat / PVC.
Get your fencing panels directly from the manufacturer and achieve the perfect finish for your property. Contact us for clear view fence pricing.
Choose from 4 options: pre-galvanized, hot-dip galvanized, polyester powder (powder coated), plascoat / PVC.
Get your fencing panels directly from the manufacturer and achieve the perfect finish for your property. Contact us for clear view fence pricing.
| Aperture: 76mm x 12.7mm | Choose an option76mm x 12.7mm76mm x 25mm76mm x 50mm
|
|---|---|
| Panel Size: 3000mm x 1800mm | Choose an option3000mm x 1800mm3000mm x 2100mm3000mm x 2400mm3000mm x 3000mm
|
| Wire Size: 3mm x 4mm | Choose an option3mm x 4mm4mm x 4mm
|
| Finishing |
Choose an optionPlain GalvanisedDippedPowder CoatedPlascoatPlain GalvanisedDippedPowder CoatedPlascoat
|
Specification
| Horizontal Wire and Vertical Wire With V Fold 358 Security Fence | ||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | |
|
76.2*12.7mm (3''*0.5'') |
3.0mm or |
2.0m or 2.50m |
1830mm | 3 | Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm |
Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm |
| 1930mm | 3 | |||||
| 2030mm | 4 | |||||
| 2230mm | 4 | |||||
| 2430mm | 4 | |||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | ||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | ||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you | ||||||
| Horizontal Wire and Vertical Wire 358 Security Fence | |||||
| Mesh Opening | Wire Diameter | Height of Fence | Width of Fence | Post Type | |
| 12.7x76.2mm (0.5'' x 3'') |
3/3.5/4mm | 1.2-2.5m | 2.0-3.1m | Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm |
40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating | |||||
| Color: RAL 6005 green, RAL 7016 gray, All RAL color can be customized. | |||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you | |||||
Feature:
1.Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a
very good protection against climbing.
2.Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.
3.Beautiful appearance - the mesh surface is flat, and the perspective is higher.
very good protection against climbing.
2.Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.
3.Beautiful appearance - the mesh surface is flat, and the perspective is higher.
Advantages:
The aperture is 76.2mm horizontal x 12.7mm vertical and makes 358 security fencing extremely difficult to penetrate using
conventional hand tools.
• Mesh panels with wire welded at every intersection
• Overlapped by a minimum of 75mm at posts to maintain integrity of protection

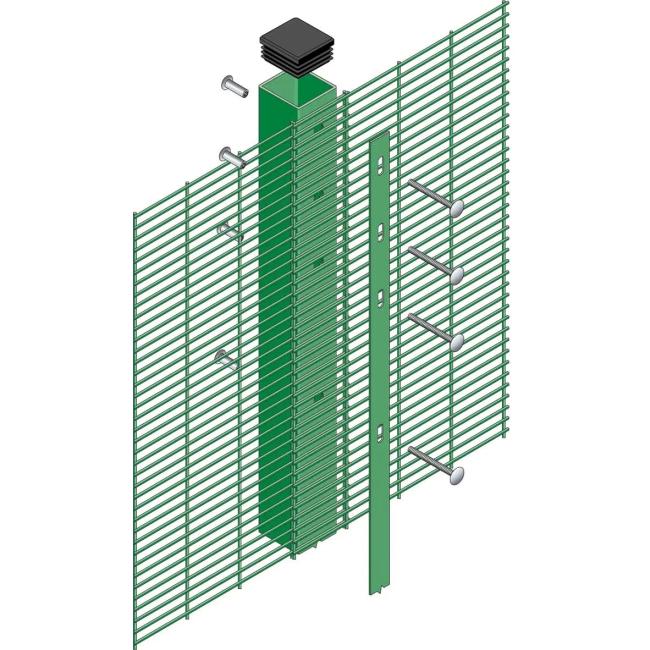

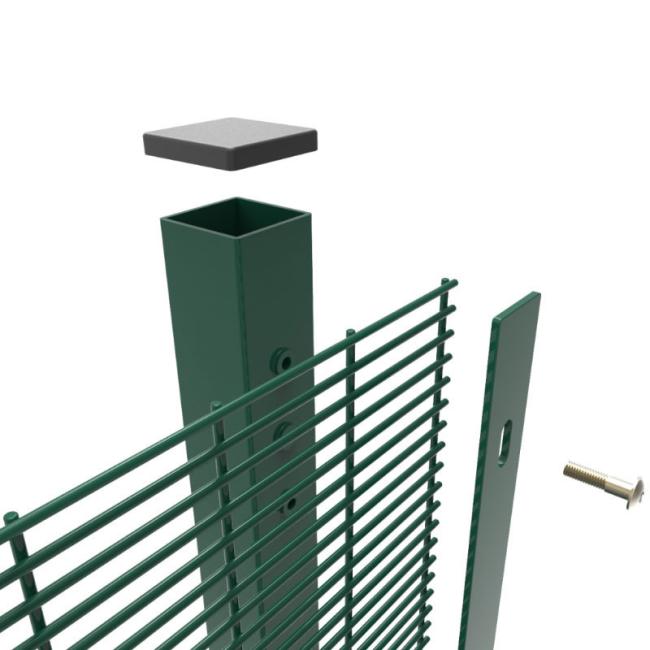

• Unique vandal and tamper-proof panel to post fixing
• Extremely strong
• Can be stepped to accommodate sloping ground
• Can be fixed to walls with cranked posts
• Post tops can be customised to carry barbed/razor wire, Rota-Spike, Alarm-aFence electric fence lines, CCTV cameras etc
• Matching swing and sliding gates available for pedestrian and vehicular access.
conventional hand tools.
• Mesh panels with wire welded at every intersection
• Overlapped by a minimum of 75mm at posts to maintain integrity of protection
• Unique vandal and tamper-proof panel to post fixing
• Extremely strong
• Can be stepped to accommodate sloping ground
• Can be fixed to walls with cranked posts
• Post tops can be customised to carry barbed/razor wire, Rota-Spike, Alarm-aFence electric fence lines, CCTV cameras etc
• Matching swing and sliding gates available for pedestrian and vehicular access.
PVC Coated

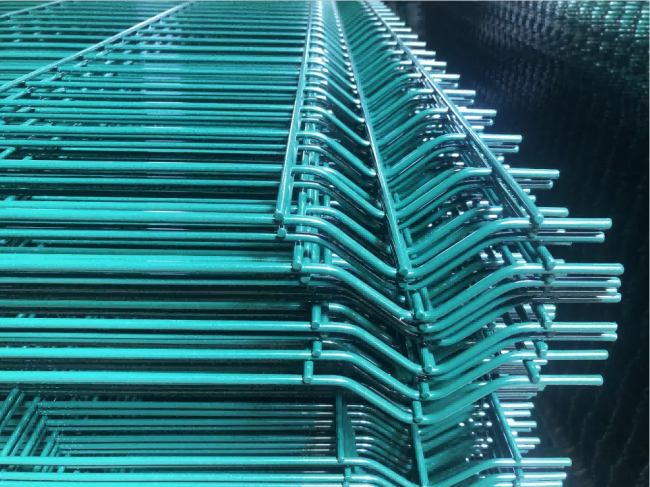

Powder Coated Galvanized

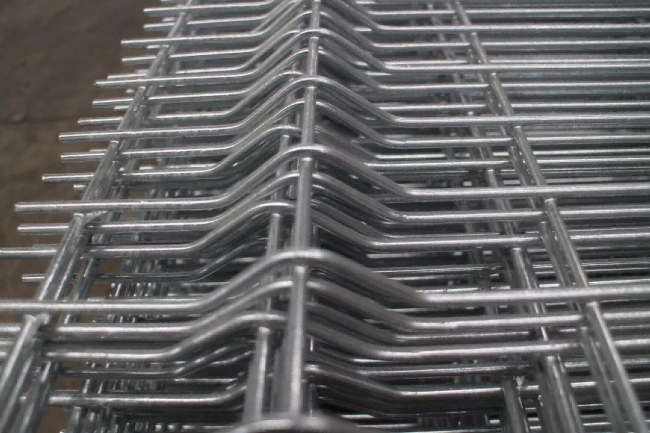

Hot Dipped Galvanized
Products Description

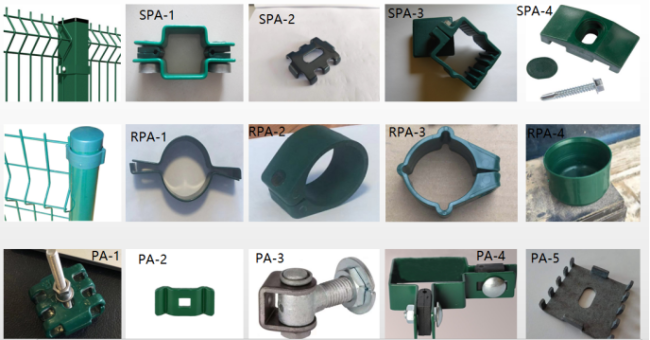

Accessories

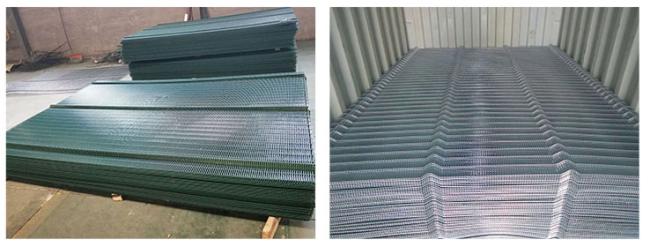

Packing & Delivery
