PVC Coated Chain Link Fence Fabric , Diamond Welded Wire Fence 5x5cm Openning
3/4mm 5x5cm Black Coated Galvanized Chain Link Fence 2 x 30 meters
1. Chain link fence also named diamond wire mesh, rhombic wire mesh, cyclone fence, is one of the most popular choices of fence for both light residential and heavy commercial fence applications.
2. chain link fence Material: Mainly galvanized iron wire, stainless steel wire, PVC wire and aluminium alloy wire.
3. Chiain link fence specifications:
| Mesh Opening | 1''- 4''(25mm-100mm), popular: 50x50mm |
| Wire Diameter | 18#-7#(1.2mm - 4.5mm), popular: 2.5mm, 3mm, 3.5mm |
| Roll Width | 0.5m - 5m, popular: 1.5m, 1.8m, 2m, 2.5m, 3.6m |
| Roll Length | 1m - 50m, popular: 10m, 15m, 25m |
| Specifications can be made according to your requirements |
4. chain link fence Surface Treatment: PVC coated, electro (zinc coating 15-20g/m2), or hot dipped galvanized (zinc coating 35-300g/m2).
black chain link fence

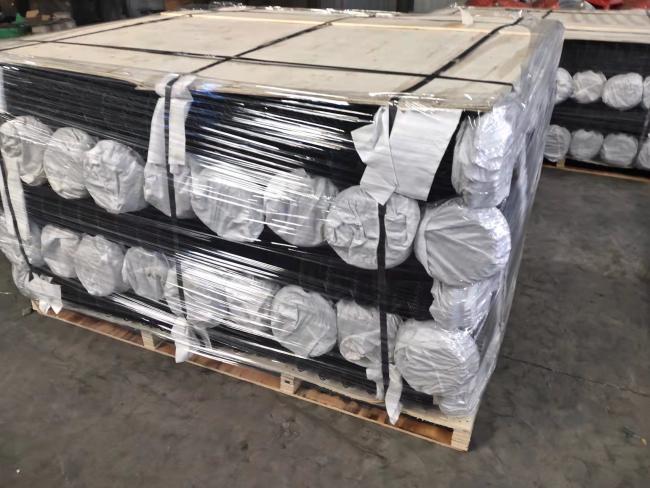

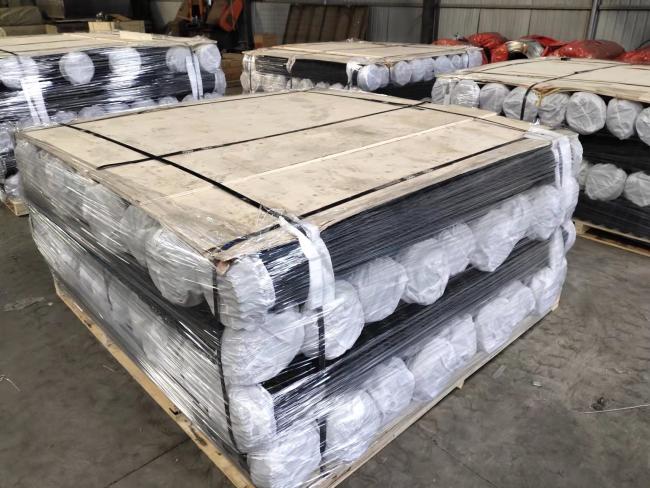

black chain link fence packing
5. Chain link Characteristics:
The mesh is even in size and smooth in surface; The weaving is simple, artistic and practical; The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.
| Opening | 1" | 1.5" | 2" | 2.25" | 2.4" | 2.5" | 3" | 4" |
| 25mm | 40mm | 50mm | 55mm | 60mm | 65mm | 76mm | 100mm | |
| Wire diameter | 18#-7# | |||||||
| 1.20mm-5.00mm | ||||||||
| Length of the roll | 1.0m-50m | |||||||
| Width of the roll | 0.5m-5.0m | |||||||
| Materials and specifications can be made according to customers specific requirements. | ||||||||
6. Galvanised Chain Link Features:
- 1.0m, 1.5m,1.8m, 2m high fence
- Made from 2.0mm to 4.0mm dia. galvanised steel wire
- 50mm diamond mesh structure is popular (2×2″ inch mesh holes)
- Length from 20m, 25m, 50m long roll
- Each roll is supplied with enough line wire for a top, middle and bottom tensioning line to be installed

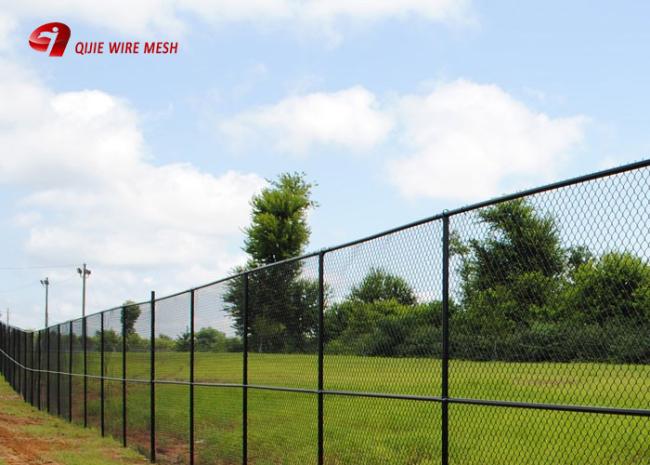

Galvanized chain link fence
black chain link fence

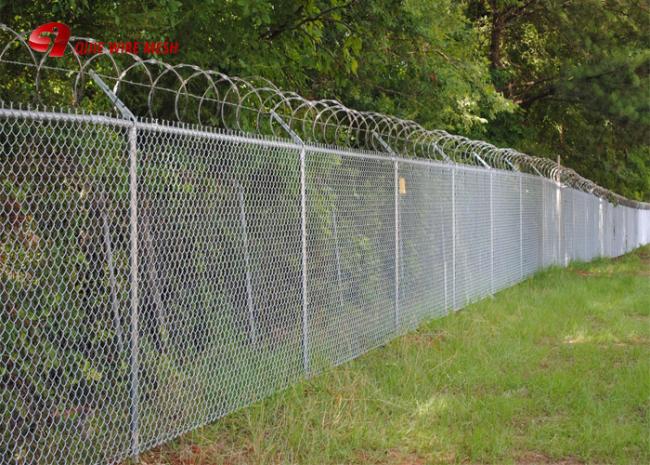

galvanized chain link fence
