4 Feet Hot Dipped Galvanized Chain Link Fence For Basketball Court A975 Standard
4 Feet Hot Dipped Galvanized Chain Link Fence for Basketball Court
Chain link fence also known by some as diamond wire mesh, rhombic wire mesh, cyclone fence,
is one of the most popular choices of fence for both light residential to heavy commercial fence applications. Chain link fence is one of the most practical styles of fence, relatively easy to install, and very cost effective.
Material: Made of quality low steel wire, stainless steel wire, aluminum alloy wire and PVC wire.
PVC coated wire, powder coated wire, stainless steel wire, (201,302,304,304L, 316, 316L),
high-quality low-carbon steel wire, galvanized steel wire, iron wire and so on.
The materials used to build your fence will affect its price. The type of wood, metal, or other material used for your fence will either decrease or increase the price of the fence you want to install.
Mesh Openning:1"(25mm) - 3"(76mm)
Hole shape: Diamond
Wire Dia: 1.6-4.2mm
Width: 1.5m, 1.8m, 2.14m etc
Material: Galvanzied wire, stainless steel wire, Galvanzied+PVC coated wire, Low carbon steel wire
Galvanzied Wire:
- 1) normal zinc coating(50-60g/m2)
- 2) heavy zinc coating(260g/m2)
- Stainless steel wire:Stainless steel 304,316 etc.
Mesh | Hot Dipped | PVC Coated | ||
Wire Dia. before/ after | Weight kg/m² | |||
1" (25mm) | 2.80 | 3.87 | 2.60/3.20 | 3.70 |
2.40 | 2.90 | 2.00/2.60 | 2.30 | |
2.10 | 2.30 | 1.40/2.00 | 1.20 | |
1.60 | 1.34 | 1.00/1.60 | 0.70 | |
1.5" (40mm) | 3.40 | 3.70 | 3.40/4.00 | 3.90 |
3.00 | 3.00 | 2.60/3.20 | 2.40 | |
2.80 | 2.40 | 2.00/2.60 | 1.40 | |
2.10 | 1.40 | 1.40/2.00 | 0.80 | |
2" (50mm) | 4.20 | 4.50 | 3.40/4.00 | 3.20 |
3.40 | 2.90 | 2.60/3.20 | 1.90 | |
2.80 | 1.90 | 2.00/2.60 | 1.20 | |
2.10 | 1.20 | 1.40/2.00 | 0.60 | |
2.25" (56mm) | 4.20 | 3.90 | 3.40/4.00 | 2.80 |
3.40 | 2.60 | 2.60/3.20 | 1.70 | |
2.80 | 1.70 | 2.00/2.60 | 1.00 | |
2.10 | 1.00 | 1.40/2.00 | 0.55 | |
2.4" (60mm) | 4.20 | 3.70 | 3.40/4.00 | 2.60 |
3.40 | 2.50 | 2.60/3.20 | 1.60 | |
2.80 | 1.63 | 2.00/2.60 | 1.00 | |
2.10 | 1.00 | 1.40/2.00 | 0.48 | |
2.5" (64mm) | 4.20 | 3.50 | 3.40/4.00 | 2.50 |
3.40 | 2.30 | 2.60/3.20 | 1.50 | |
2.80 | 1.60 | 2.00/2.60 | 0.90 | |
2.10 | 0.90 | / | / | |
3" (76mm) | 4.20 | 3.00 | 4.40/5.00 | 3.40 |
3.40 | 2.00 | 3.40/4.00 | 2.10 | |
2.80 | 1.30 | 2.60/3.20 | 1.30 | |
2.10 | 0.80 | / | ||

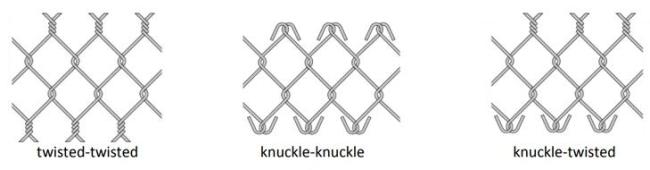

edge of chain link fence
Accessories of chain link fence:

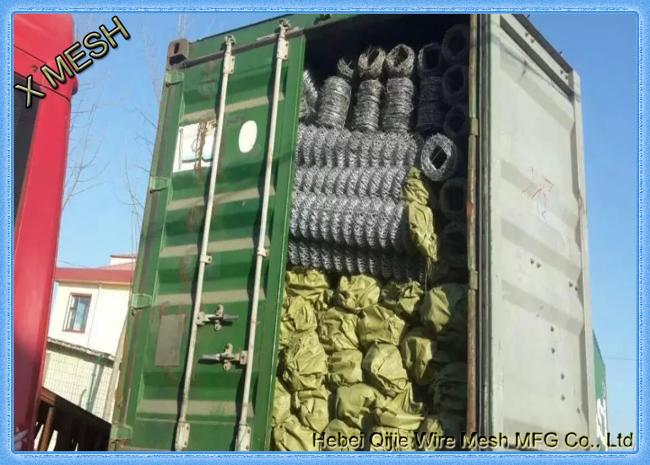

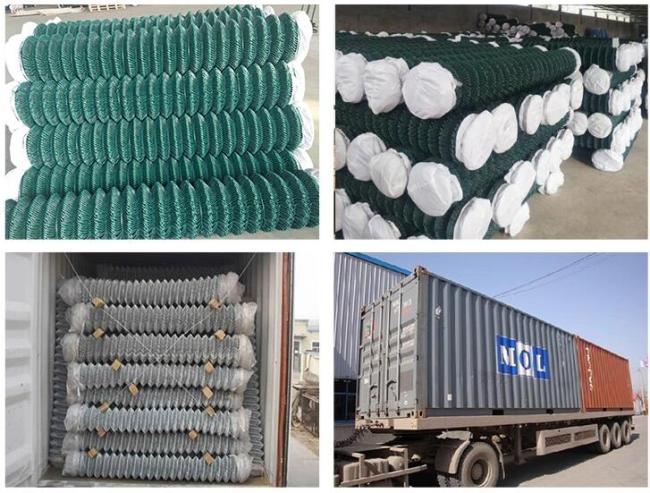

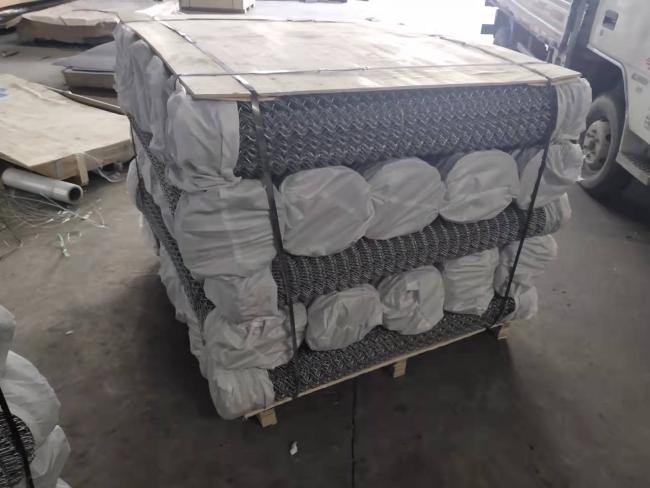

Packing & Loading of chain link fence:
