Commercial And Residential PVC Coated Chain Link Fencing 1.5 Inch ISO Listed
Commercial and Residential 1.5inch PVC Coated Chain Link Fencing for kenya market
Chain Link Fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control.
Chain link fence mesh, woven from steel wire, is probably the most widely used &
versatile of all fencing fabrics available in a variety of wire gauges & mesh sizes to suit specific applications. All rolls come complete with line wires and with knuckled edges.
Description:
1.Materials of chain link fence : low carbon iron wire
2.Surface treatment: PVC Coated / Hot-dipped galvanized / Electro-galvanized
3.Weaving type: Crocheting and weaving
4.Fence ends treatment: knuckles barb , twisted barb
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Height |
40X40mm | 2.0mm | Galvanized and | 10m | 1200mm |
| 1500mm | ||||
| 1800mm | ||||
| 2000mm | ||||
| 2100mm | ||||
| 2400mm | ||||
| 2500mm | ||||
| 3000mm | ||||
3600mm |
Application

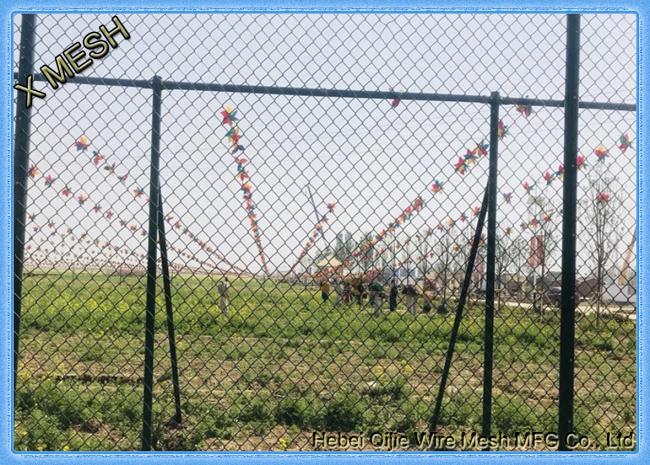

Chain Link Fence normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control.Here are some product actual installation rendering.
Standards:
ASTM A392 Type 1 – Zinc-Coated Steel Chain Link Fence Fabric ASTM F567 – Installation of Chain Link Fence
ASTM A817 – Metallic-Coated Wire for Use in Chain Link Fence ASTM B6 – Zinc (Slab Zinc)
Federal Specification RR-F-191K/1F Type 1 Fencing, Wire and Post Metal (Chain-Link Fence) AASHTO M-181 Chain Link Fence, Type 1
chain link fence Features:
Good materials, uniform mesh, flat surface, simple weaving, elegant, practical, and flexible installation.
chain link fence Applications:
Playground ( tennis ground ,football ground, basketball ground )
Building site.
Courtyard, park, lwan, forest protecting
chain link fence Standard Colors :
Only Galvanized
moss green RAL 6005
Packaging & Shipping
Chain Link FAQ :
1. Are all chain-link fences the same?
Chain-link has four elements: fabric ( chain link mesh ), framework, fittings and gates. How you combine them makes all the difference. Each of these components are available in a range of weights (gauges) and types of protective coatings. Providers can mix and match components in an effort to shave costs or differentiate their product. Our minimum recommendations will typically follow the minimum practices defined by the American Society for Testing and Materials (ASTM). The most common coating is zinc (galvanized), but you’ll also find chain-link components with vinyl or polyester color coatings in addition to zinc. These color treatments enhance landscaping and blend naturally with trees, shrubs and bushes. They’ll also give you even more protection against corrosion or rust.
2.What do I look for in residential chain link fabric?
Select your chain-link fence fabric based on these three criteria: gauge of wire, size of mesh and type of protective coating.
3.How do I select my residential fence framework?
Start with the gauge and the outside diameter. Below is a helpful table that you may use in selecting your fence framework. “Terminal Posts” is a generic term for end, corner and gate posts. Gate posts will vary based on the size of the gate.
| Application | Light Duty | Medium Duty | Heavy Duty | |
| 3’-4’ high | Toprail | 1-3/8” 17 ga. | 1-3/8” 16 ga. | 1-3/8” 15 ga. |
| Line Posts | 1-5/8” 17 ga. | 1-5/8” 16 ga. | 1-5/8” 15 ga. | |
| Terminal Posts | 1-7/8” 17 ga. | 1-7/8” 16 ga. | 1-7/8” 15 ga. | |
| 5’-6’ high | Toprail | 1-3/8” 17 ga. | 1-3/8” 16 ga. | 1-5/8” 15 ga. |
| Line Posts | 1-7/8” 17 ga. | 1-7/8” 16 ga. | 1-7/8” 15 ga. | |
| Terminal Posts | 2-3/8” 17 ga | 2-3/8” 16 ga. | 2-3/8” 15 ga. |
