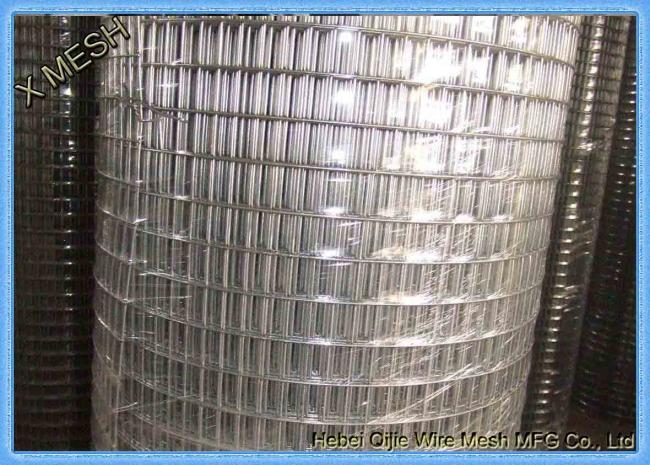

Building Material Square Hot-Dipped Galvanized Stainless Steel Welded Wire Mesh
Building Material Square Hot-Dipped Galvanized Stainless Steel Welded WireMesh
Material:low carbon steel wire, black iron wire,electro galvanized wire, hot dipped galvanized wire,stainless steel wire, aluminum wire
Width: 0.5m-2.0m
Surface treatment:
* Hot dipped galvanized before welding
* Hot dipped galvanized after welding
* Electro galvanized before welding
* Electro galvanized after welding
* PVC coating after welding
Features:
Galvanized welded wire mesh has the features of excellent anti-corrosion resistance, acid resistance, anti-alkali property, oxidation-resistance and excellent flexibility.
Applications:
It is widely used in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction, etc.
Galvanized Welded Wire Mesh Panel
| Specification List of Welded Mesh Panel : | |||
| Opining | Wire Diameter | ||
| Inch | mm | BWG | mm |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
| 2"x1" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
| Note: Special specifications can be customized. | |||
PVC Coated Welded Wire Mesh Panel
| PVC Coated Welded Mesh Panel : | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4"x1/4" | 6.35mx6.35mm | 21,22,23,24,24,25 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
|
|
||
