60x150mm Wire Mesh Fence Panels
Pre-School Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.
Fittings: Nuts, clips and bolts supplied with panels and posts.
Size Range Available:
| DESCRIPTION | HEIGHT (MM) | LENGTH (MM) | DIAMETER (MM) |
|---|---|---|---|
| Panels | 1500 | 2400 | |
| Posts - no base | 2200 | 65mm square | |
| Posts - with base | 1600 | 65mm square | |
| Gate Pack (includes posts & lockable magna latch). 930mm opening between posts. | |||
| VERTICAL WIRE SPACING (MM) | WIRE DIAMETER - HORIZONTAL (MM) | WIRE DIAMETER - VERTICAL (MM |
|---|---|---|
| 70 | 6.3 | 7.5 |

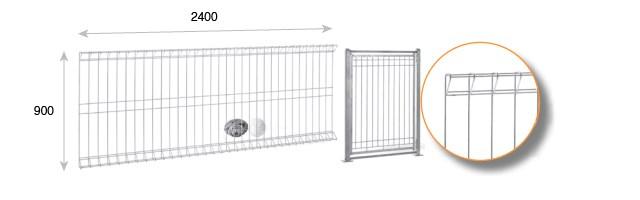

Triangle Residential Panel (Top & Bottom)
MADE TO ORDER
Cyclone Residential Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.
Fittings: Nuts, clips and bolts supplied with panels and posts.
Size Range Available:
| DESCRIPTION | HEIGHT (MM) | LENGTH (MM) | DIAMETER (MM) |
|---|---|---|---|
| Panels | 900 | 2400 | |
| Posts - no base | 1600 | 50mm | |
| Posts - with base | 1000 | 50mm square | |
| Gate Pack (includes posts & D latch). 930mm opening between posts. | |||
| VERTICAL WIRE SPACING (MM) | WIRE DIAMETER - HORIZONTAL (MM) | WIRE DIAMETER - VERTICAL (MM) |
|---|---|---|
| 75 | 5.3 | 5.3 |

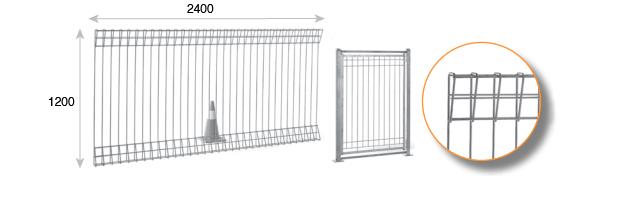

Triangle Motorway Panel (Top & Bottom)
Cyclone Motorway Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.
Fittings: Nuts, clips and bolts supplied with panels and posts
| DESCRIPTION | HEIGHT (MM) | LENGTH (MM) | DIAMETER (MM) |
|---|---|---|---|
| Panels | 1200 | 2400 | |
| Posts - no base | 2000 | 50mm square | |
| Posts - with base | 1300 | 50mm square | |
| Gate Pack to suit | |||
| VERTICAL WIRE SPACING (MM) | WIRE DIAMETER - HORIZONTAL (MM) | WIRE DIAMETER - VERTICAL (MM) |
|---|---|---|
| 75 | 6.3 | 7.5 |
Triangle Security Panel (Top & Bottom)
Cyclone Security Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.
Fittings: Nuts, clips and bolts supplied with panels and posts
Size Range Available:
| DESCRIPTION | HEIGHT (MM) | LENGTH (MM) | DIAMETER (MM) |
|---|---|---|---|
| Panels | 1800 | 2400 | |
| Posts - no base | 2665 | 65mm square | |
| Posts - with base | 1900 | 65mm square |
| VERTICAL WIRE SPACING (MM) | WIRE DIAMETER - HORIZONTAL (MM) | WIRE DIAMETER - VERTICAL (MM) |
|---|---|---|
| 75 | 6.3 | 7.5 |
