Concertina Barbed Wire with Galvanized Zinc Coated Chain Link Fence for High Security
Concertina Barbed Wire with Galvanized Zinc Coated Chain Link Fence for High Security

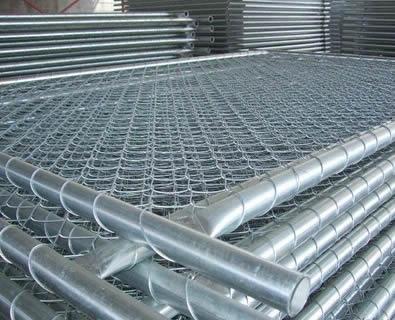

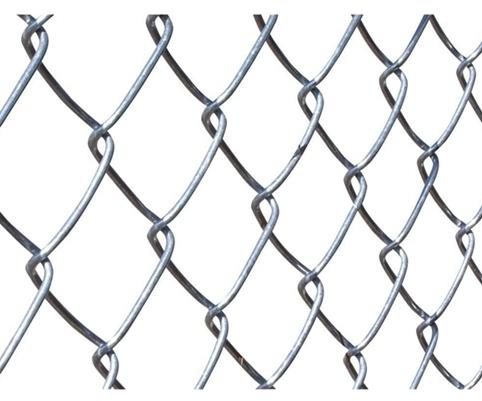

Chain link fencing, also known as cyclone wire fencing is a cost effective, secure and durable choice in permanent fencing that serves a wide range of applications.chain link fence is made of high quality hot-dip galvanized (or PVC coated) low carbon steel wire, and woven by advanced automatic equipment. It has fine rust-resistant, mainly used as safety fence for house, building, breeding of poultry and so on.
Excellent Security - provides constant security against intruders, pilferers and animals
Long Term Durability - stands up to rugged conditions and requires minimal maintenance.
Easily extended - additional fencing can be matched with the original for future extensions.
Readily relocated - chain wire fences have a high recovery rate, and can be relocated as the extension of premises demands.
Highly flexible - can be easily fitted around building columns, roof trusses, air conditioning ducts and hot water services.
Galvanised & Life - ensures long life and low maintenance.
PVC coating - chain wire is available in black or green to blend with the environment.
Table 1 – Zinc Coated Wire Characteristics
| Nomi al Coated Wire Dia. | Allowable Variance | Zinc Coated Weight(Mini) | Breaking Strength(Mini) | |||||||
| Class 1 | Class 2 | |||||||||
| Gauge | Inch | mm | Inch | mm | Oz/ft² | g/m² | Oz/ft² | g/m² | Ibf | Newtons |
| 6 | 0.192 | 4.88 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 2,170 | 9,650 |
| 9 | 0.148 | 3.76 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 1,290 | 5,740 |
| 11 | 0.120 | 3.05 | ±0.005 | ±0.13 | 1.2 | 366 | --- | --- | 850 | 3,780 |
Table 2 – Zinc Coated Chain Link Mesh Selection
Table 3 – Chain Link Fence Post Selection
| Line Post Description/Outside Dia. | Terminal Post Description/Outside Dia. |
| Pipe 2.375Inch | Pipe 2.875Inch |
| C-Setion 2.25by1.70Inch | Pipe 2.875Inch |
| Pipe 2.875Inch | Pipe 4.000Inch |
| C-Setion 3.25by2.50Inch | Pipe 4.000Inch |
| Pipe 4.000Inch | Pipe 6.625Inch |
| Pipe 4.500Inch | Pipe 6.625Inch |
| Pipe 6.625Inch | Pipe 6.625Inch |
| Pipe 8.625Inch | Pipe 8.625Inch |
Chain link fence applications:
Chain link fence is widely used in highway, railway and other fence facilities. Also be used for interior decoration, breeding chickens, ducks, geese, rabbits and zoo fence.
1. Utility extensive rearing chickens, ducks, geese, rabbits and zoo fence.
2. Mechanical protection, highway divider, sports venues fence and the road network of green belt protection.
3. Protect and support the seawall, hillsides, highways and Bridges.
4. Reservoirs and other flood control and flood Civil Engineering.
5. Manufacture products, machinery and equipment in the distribution network.
Application
