10 ft Commercial 2"x9 Gauge Galvanized Chain link Fence Package Kits Complete

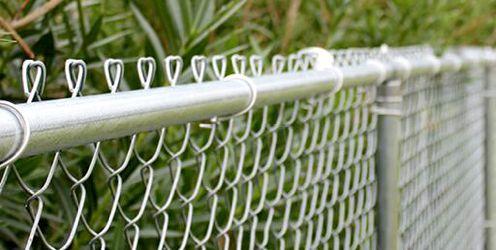

Chain link fence is also called diamond mesh or rhombic wire mesh fence. Our fence enjoys quality materials and uniform openings, smooth surface and nice appearance and good corrosion resistance. It is widely used in sports field, playground, stadium, airport and private building fencing. Galvanized chain link fence is made of galvanized wires which has features of good ductility and elasticity. However, plastic coating chain link fence is available as well.
Compared with common chain link fabric, QIJIE chain link fencing has following advantages:
- Enhance the configuration of chain link mesh size and wire gauge.
- Strenghten the bottom of the fence by means of bottom rail.
- Conbine with barbed wire on the top, side or bottom of the fence.
- Stronger framework.
- Adding anti-ram cable systems to resist vehicle penetration into a protected zone.
Table 1 – Zinc Coated Wire Characteristics
| Nomi al Coated Wire Dia. | Allowable Tolerance | Zinc Coated Weight(Mini) | Breaking Strength(Mini) | |||||||
| Class 1 | Class 2 | |||||||||
| Gauge | Inch | mm | Inch | mm | Oz/ft² | g/m² | Oz/ft² | g/m² | Ibf | Newtons |
| 6 | 0.192 | 4.88 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 2,170 | 9,650 |
| 9 | 0.148 | 3.76 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 1,290 | 5,740 |
| 11 | 0.120 | 3.05 | ±0.005 | ±0.13 | 1.2 | 366 | --- | --- | 850 | 3,780 |
Table 2 – Zinc Coated Chain Link Mesh Selection
| Recommended Use | Mesh Sizes Available/inch | Wire Gauge | Fence Height/inch |
| Industrial/Commercial | 2" | 6 | 36''-144" |
| 9 | 36''-144" | ||
| 11 | 36''-144" | ||
| Industrial/Commercial | 1" | 6 | 36''-144" |
| 9 | 36''-144" | ||
| Security | 1" | 9 | 36''-144" |
| 1" | 11 | 36''-144" | |
| 3/4" | 9 | 36''-144" | |
| 3/4" | 11 | 36''-144" | |
| 5/8" | 9 | 36''-144" | |
| 5/8" | 11 | 36''-144" | |
| 1/2" | 9 | 36''-144" | |
| 1/2" | 11 | 36''-144" | |
| 3/8" | 11 | 36''-144" | |
| Tennis Court | 1-3/4" | 9 | 36''-144" |
| 11 | 36''-144" |
Table 3 – Chain Link Fence Post Selection
| Line Post Description/Outside Dia. | Terminal Post Description/Outside Dia. |
| Pipe 2.375Inch | Pipe 2.875Inch |
| C-Setion 2.25by1.70Inch | Pipe 2.875Inch |
| Pipe 2.875Inch | Pipe 4.000Inch |
| C-Setion 3.25by2.50Inch | Pipe 4.000Inch |
| Pipe 4.000Inch | Pipe 6.625Inch |
| Pipe 4.500Inch | Pipe 6.625Inch |
| Pipe 6.625Inch | Pipe 6.625Inch |
| Pipe 8.625Inch | Pipe 8.625Inch |
Specifications of Barbed Wire
Strand structure
Single strand barbed wire with single line wire and the twisted barbs fastened to the line wire.
Material: steel wire or stainless steel wire.
Wire diameter: 3.0 mm ± 0.05 mm.
Tensile strength: 1235 N/m2.
Galvanization: 275 g/m2.
Barb
Material: iron wire.
Wire diameter: 2.0 mm ± 0.05 mm.
Tensile strength: 350 N/m2.
Length of barbs: 13 mm – 20 mm.
Distance between barbs: 60 mm ± 16 mm.
Galvanization: 240 g/m2.

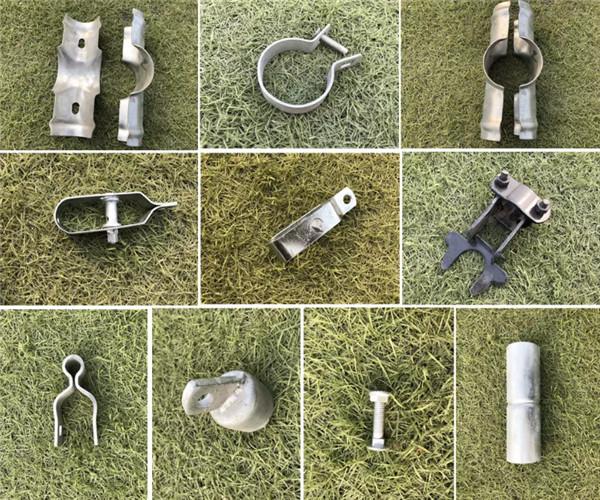

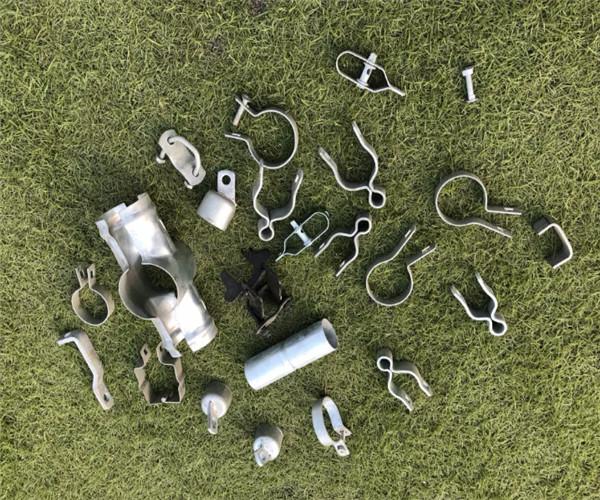

Chain Link Fence Kits:
| Flat iron | supporting chain link fence |
| Brace band | connected with tensioner and post |
| Tension band | connected with flat iron and post |
| Tensioner | secure line wire |
| Line wire | folding chain link mesh |
| Tie wire | secure the line wire,post and mesh |
| All kits could be pvc vinyl coated or galvanized coated. | |
