Machinery Welding Equipment Welding Wire Machines

Iso9001 2.5mm Diameter Concertina Razor Wire For Fencing

Price Negotiable
Price: discuss
MOQ: 100 rolls
Delivery Time: 15-20 days
Brand: Qijie
Product Description



2.5mm Wire Diameter Galvanized Razor Barbed Binding Wire Used For Fencing



Material: Good-quality low- and medium-carbon steel strips and stainless steel strips
Type: Linear razor barbed wire, spiral razor barbed wire and flat razor barbed wire
Process: Punching and rolling
Feature: Good protecting performance, elegant appearance, diversified shapes, quick construction and good deterring effect
Purpose: Separation and protection in military borders, jails, national defense organizations and facilities, national key facilities, communities, residential buildings, etc.



Linear razor barbed wire
In the linear razor barbed wire, razor barbed wires are welded to from diamond-shaped holes or rectangular holes. If someone wants to climb over it, netty razors are quite sharp, nobody can hold it by hands and climb over it on feet, so that it definitely is a protection wall which nobody can climb over it and has quite good deterrence and prevention effect. Furthermore, it has elegant appearance and obvious actual effects and is widely applied to jail, military and governmental facilities.

Spiral razor barbed wire
In the spiral razor barbed wire, two razor barbed wires are highly clamped by stainless steel sheets and hot galvanized sheets. It shows a cross shape when it is unfolded, and is beautiful and practical.
Product features: Corrosion resistance, ageing resistance, sunscreen, etc. The anti-corrosion type includes electroplating and hot dip.



Flat razor barbed wire
The flat razor barbed wire, flat plate razor barbed wire or knife-type barbed wire is a kind of effective protective net.



Outside Diameter No.of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type


Concertina Specification For Razor Barbed Wire

Reference No. Thickness Wire Dia Barb Length Barb Width Barb spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
BTO-30 0.5±0.05 2.5 30 18 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±1

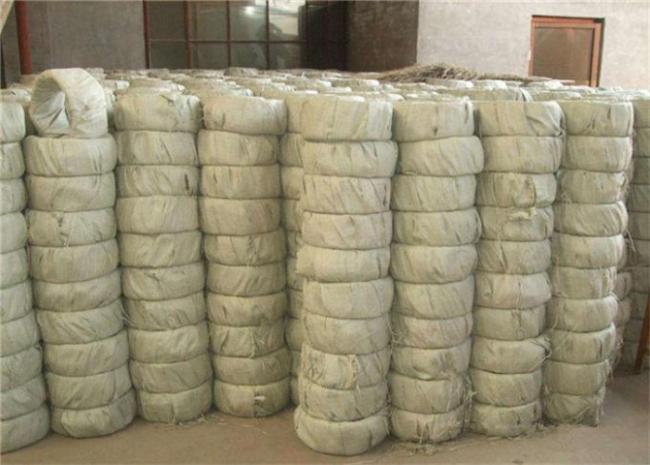

Package:

⇒Packed as your special require

⇒Packed with pallet

⇒Packed with paper box

⇒Packed with waterproof paper inner, woven bag outer
