ARC Garden Galvanised Welded Wire Fence Panels 2400w X 1200h
ARC Garden Weldmesh Roll Top Wire Fence Panel (Galvanised) 2400(W) X 1200(H)
|
Height
|
Width
|
Line wire x cross wire
|
Mesh opening
|
Post length 60*60*1.5mm
|
Accessary
|
|
|
I
|
II
|
|||||
|
1286
|
2135
|
6/5/6-8/6/8
|
50x200
|
55x200
|
1320
|
3
|
|
1886
|
2135
|
6./5/6-8/6/8
|
50x200
|
55x200
|
1920
|
4
|
| Material | 5mm lifewire |
|---|---|
| Colour | Galvanised |
| Weight | 9.9kg |
| Gauge | 5mm wire |
| Item Package Type | Panel |
| Shape | 2400mm wide x 900mm high |
| Recommended Use | Fencing |
We can design different Gate for your reference:Deco for double gate, single decofor swing gate, double leaf swing gates, single Leaf gate.
Double mesh fence also called double wire fence, double cross wire fence, double weft wire fence, double fence, grid structure concise, beautiful and practical, versatile. With the feature of security, long lifetime, fast installation easy to master, complete system.
| Double Wire Fence | |||||
| Height*WidthPanel | Mesh Size. | Wire Diameter | Post of Height | ||
| Wire Diamm | Wire Diamm | Wire Diamm | |||
| 630 * 2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1100 |
| 830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1300 |
| 1030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1500 |
| 1230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1700 |
| 1430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1900 |
| 1630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2100 |
| 1830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2400 |
| 2030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2600 |
| 2230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2800 |
| 2430*2500 | 50*200 | 8*2 + 6 | 6**2 + 5 | 6*2 + 4 | 3000 |
Fastenings&Installation
The Panels and posts are joined together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.
This also can be designed as special clients requests.
This system usually chooses Square Post, Rectangular Post as follows, With plastic caps or Roofing rain hat. The finished surface usually
is Galvanized and Powder coating, or alternatively.

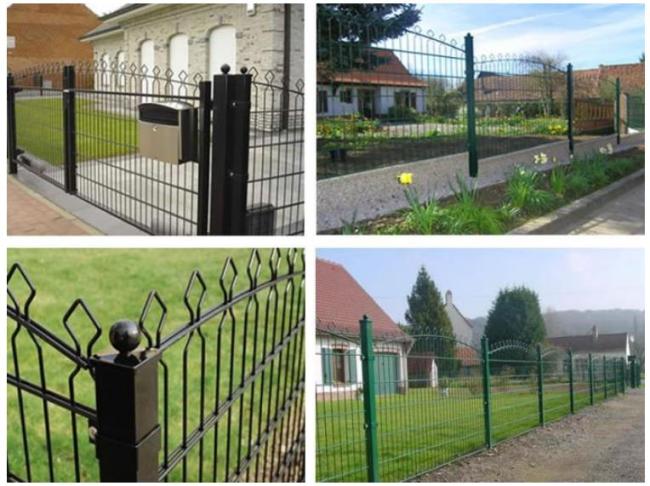

arc steel fence-1

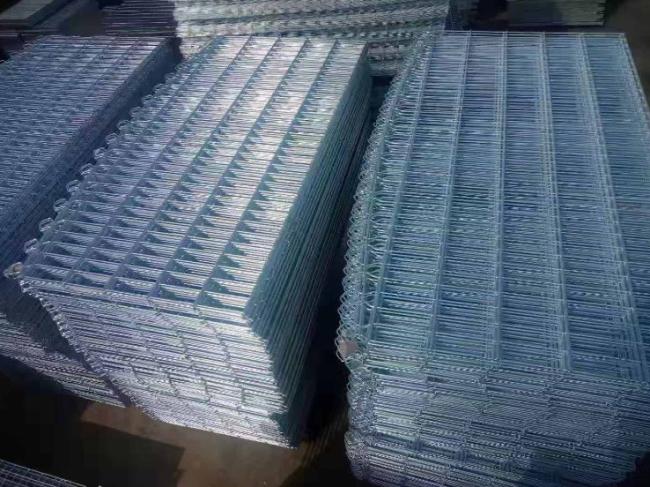

arc steel fence-2

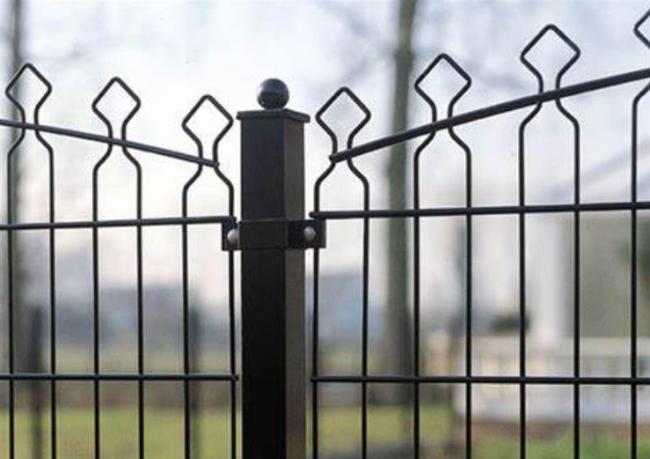

arc steel fence-3
