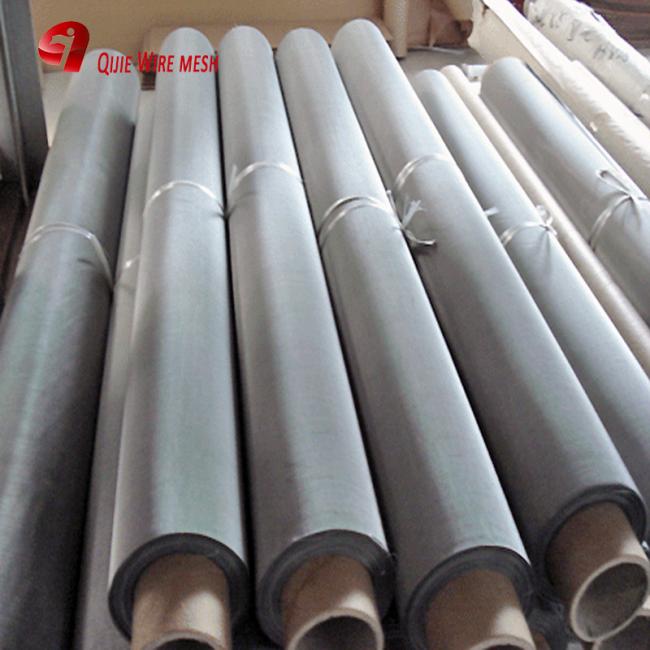

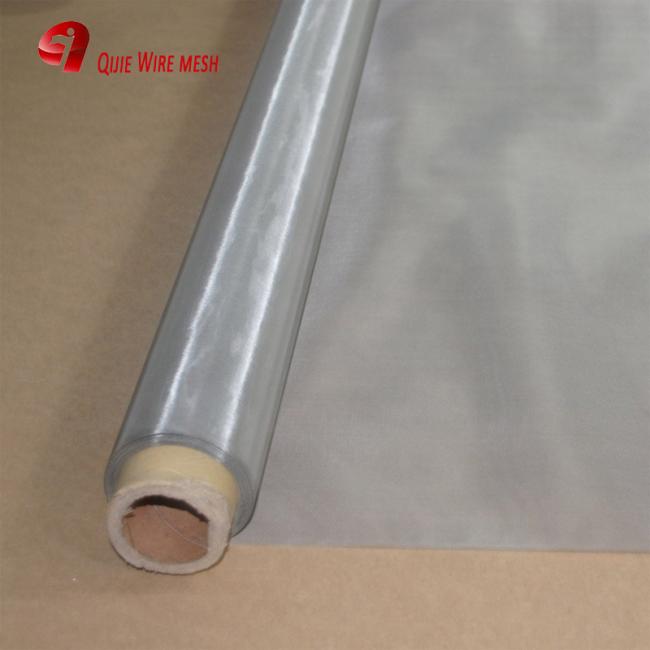

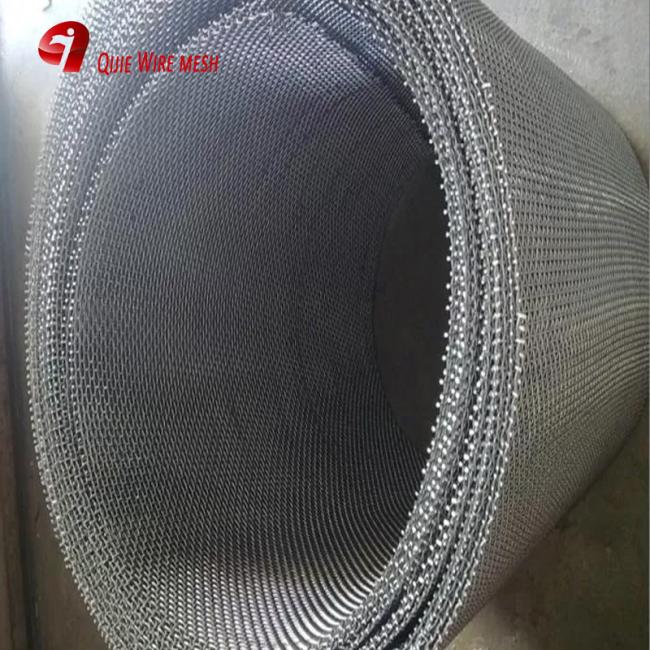

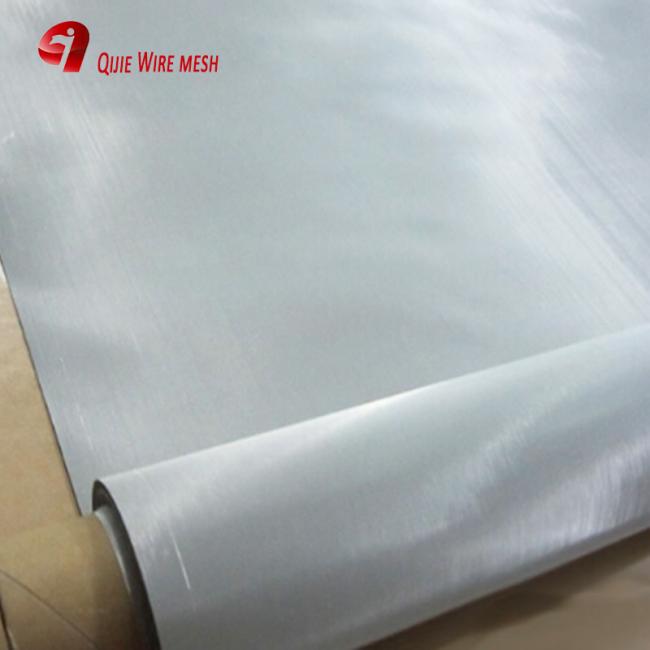

5 Micron Aisi 0.25mm Stainless Steel Woven Wire Mesh

Price Negotiable

Price: Negotiable

MOQ: 200pcs

Delivery Time: 15-25days

Brand: Xmesh

Product Description

AISI 304, 304L, 316, 316L. Stainless Steel Mesh And Processed Filter Products

Description:

Stainless steel slip mesh could be produced as finished products. we can produce high and stable quality stainless steel strip mesh as per customer's requirement. Customzied size should be known as mesh size, wire thickness, strip width& length, packing etc.

Material: SS304, SS314L, SS316, SS316L,

Applications:

Stainless steel strip mesh products are good at suitable for various of adaptation, including medical equipment, food industry, construction material, kitchenware, electric equipment.

Other applications are as following:

Automotive exhausts, manifolds and high temperature engine components
Medical instruments and devices
Petro-chemical applications

Material: SS 302, SS 304, SS 304L, SS 316, SS316L, etc.

Size: The below is our general size, we can produce according to customers' size requirements.

Diameter: 0.1-0.25mm

Mesh: 14-24 mesh

Width: 0.3-2m

Length: 15-50m

Packaging: Plastic inside, then carton box, then pallet or wooden box. The packaing is suitable for exporting transport.

Specification list of Stainless Steel Wire Mesh
Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5
