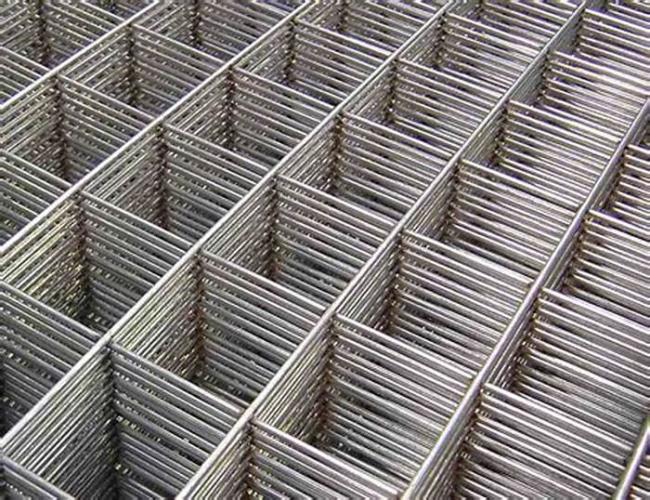

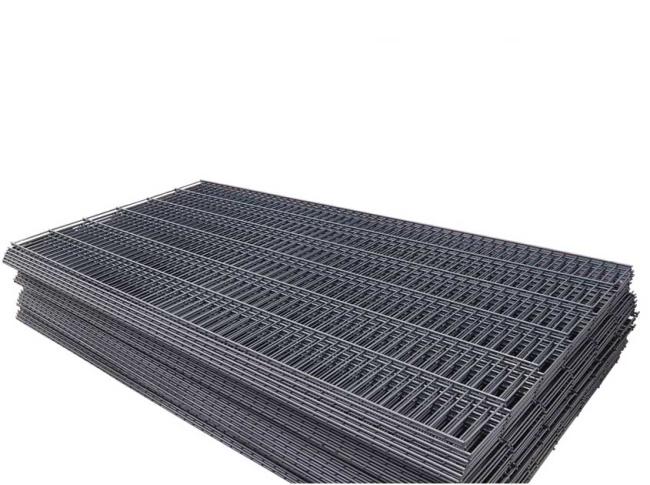

50mmx50mm 4x8 Galvanized Wire Mesh Panels
50mm X 50mm Galvanized 4x8 Welded Wire Mesh Panel For Garden Fencing, Plaster Mesh
As all know, the welded wire mesh can be divided into welded mesh rolls and welded wire mesh panels. The welded wire mesh rolls are widely used for garden fencing, plaster mesh.
The welded wire mesh panel has thicker wire diameter and larger opening sizes for high security applications, such as prison fencing, factory fencing and other site security fencing.
The welded wire mesh panel is made of low carbon steel with galvanized or PVC coating surface and stainless steel wires. Both of them has excellent corrosion resistance performance and durable life.
The welded wire mesh can be divided into welded mesh rolls and welded wire mesh panels. The welded wire mesh rolls are widely used for garden fencing, plaster mesh.
The welded wire mesh panel has thicker wire diameter and larger opening sizes for high security applications, such as prison fencing, factory fencing and other site security fencing.
The welded wire mesh panel is made of low carbon steel with galvanized or PVC coating surface and stainless steel wires. All of them has excellent corrosion resistance performance and durable life.
Stainless steel wire, Low carbon steel wire, Galvanized wire
Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
Electric galvanizing after weaving
Weaving with electric galvanized iron wire
PVC coated welded wire mesh
Welded wire mesh panel is used in industry and agriculture, building, transportation and mining for all such purposes as Poultry houses, Egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence.
It is made through the process of automation and sophisticated welding technique. The end product is level and flat, with sturdy structure and even strength throughout, the netting shows no wear and tear when cutting off a part or under a stress.
| Item | Mesh | Wire Diameter | ||
|---|---|---|---|---|
| inch | mm | gauge | mm | |
| GWMPS-01 | 1 × 1 | 25 × 25 | 14–11 | 2.0–3.0 |
| GWMPS-02 | 2 × 1 | 50 × 25 | 14–8 | 2.0–4.0 |
| GWMPS-03 | 2 × 2 | 50 × 50 | 14–8 | 2.0–4.0 |
| GWMPS-04 | 3 × 2 | 75 × 50 | 14–6 | 2.0–5.0 |
| GWMPS-05 | 3 × 3 | 75 × 75 | 14–6 | 2.0–5.0 |
| GWMPS-06 | 4 × 2 | 100 × 50 | 14–4 | 2.0–6.0 |
| GWMPS-07 | 4 × 4 | 100 × 100 | 14–4 | 2.0–6.0 |
| GWMPS-08 | 5 × 5 | 125 × 125 | 14–4 | 2.0–6.0 |
| GWMPS-09 | 6 × 6 | 150 × 150 | 14–4 | 2.0–6.0 |
| Note: Special specifications can be customized. | ||||
Packaging:
Standard length: 1-8m;
Standard width: 0.5-3m
Special sizes available at request
Packing: in pallet. Custom packing available at request.
We ship the welded wire mesh, welded wire mesh panel, galvanized welded wire mesh panel, welded wire mesh fence products about 80 containers each month.
