3/4" Opening Aluminum Alloy Woven Crimped Wire Mesh For Screen & Walls
Aluminum Alloy Crimped Wire Mesh Woven for Screen & Walls
Crimped wire mesh is also called weave wire mesh. We manufacture varieties of crimped wire mesh, such as steel wire crimped wire mesh, low carbon steel wire crimped wire mesh, high carbon steel wire crimped wire mesh, medium carbon steel wire crimped wire mesh and stainless steel wire crimped wire mesh.
|
Materials
|
Black iron wire,Low carbon wire,High carbon wire, stainless steel wire, etc. .
|
|
Weaving and characteristics
|
weaving after crimped and the structure is very strong and durable.
|
|
Mesh
|
0.7-20mesh
|
Products Specifications
| Wire dia.(mm) | Mesh | Hole size(mm) | Weight: kg/m2 |
| 4.8 | 0.7 | 3 | 14 |
| 4.8 | 1 | 2 | 20 |
| 4.8 | 1.2 | 2 | 20 |
| 1.2 | 2 | 11.5 | 1.44 |
| 1.5 | 2 | 12.2 | 2.25 |
| 1.6 | 2 | 11.1 | 1.93 |
| 2 | 2.1 | 1 | 2.5 |
| 1 | 2.3 | 0.18 | 1.45 |
| 3 | 2.3 | 8 | 10.35 |
| 1.6 | 3 | 6.87 | 2.73 |
| 1.2 | 3 | 7.26 | 2.1 |
| 2 | 3.6 | 1.5 | 1.9 |
| 0.7 | 4 | 5.65 | 0.98 |
| 1.2 | 4 | 5.15 | 2.6 |
| 2 | 4.2 | 4 | 8.4 |
| 0.9 | 5 | 4.18 | 2.02 |
| 1 | 5 | 4.08 | 2.13 |
| 2 | 5 | 0.3 | 12 |
| 0.9 | 6 | 3.33 | 2.16 |
| 0.5 | 8 | 2.675 | 1 |
| 0.6 | 8 | 2.575 | 1.44 |
| 0.8 | 8 | 2.375 | 2.16 |
| 0.7 | 8 | 2.475 | 1.83 |
| 0.5 | 9 | 2.32 | 1.1 |
| 0.5 | 10 | 2.04 | 1.25 |
| 0.6 | 10 | 1.94 | 1.8 |
| 0.7 | 10 | 1.84 | 2.43 |
| 0.5 | 12 | 1.62 | 1.5 |
| 0.71 | 12 | 0.14 | 2.94 |
| 0.9 | 12 | 1.22 | 4.66 |
| 0.8 | 12 | 1.32 | 3.83 |
| 1 | 12 | 1.12 | 6 |
| 0.4 | 14 | 1.41 | 1.12 |
| 0.55 | 14 | 0.12 | 4 |
| 0.6 | 14 | 1.21 | 2.5 |
| 0.55 | 16 | 0.1 | 2.5 |
| 0.6 | 16 | 0.987 | 2.87 |
| 0.4 | 18 | 1 | 2.23 |
| 0.61 | 18 | 0.8 | 3.4 |
| 0.5 | 20 | 0.61 | 2.6 |
Application:
The Crimped Wire Mesh is widely used in pig-breeding net, petroleum, glass factory, mine, mine factory and hardware products.
Meantime this kind of product is usually used as barbecue grill wire netting. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Production Flow
In order to ensure that the customers obtain the finest quality goods from China,we firmly try our best to carry out the quality control and production process control.

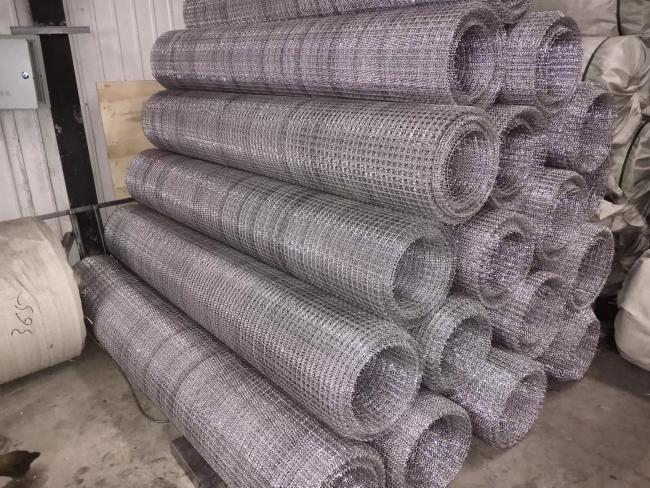

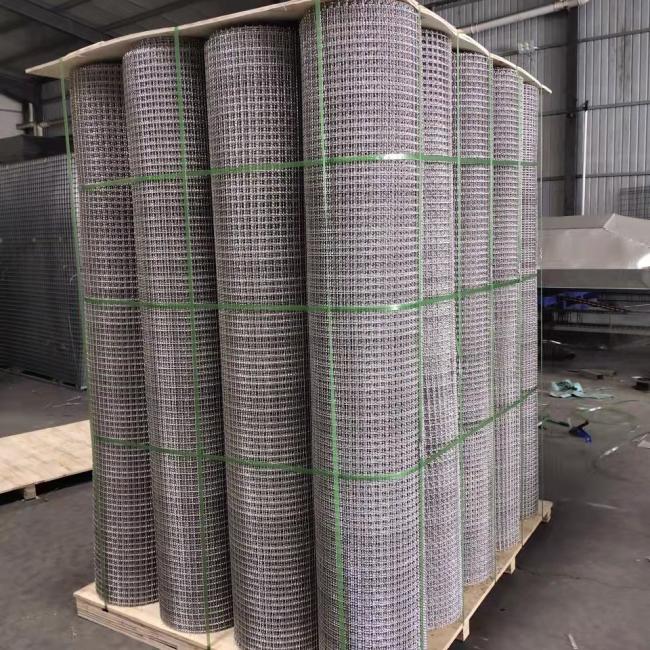

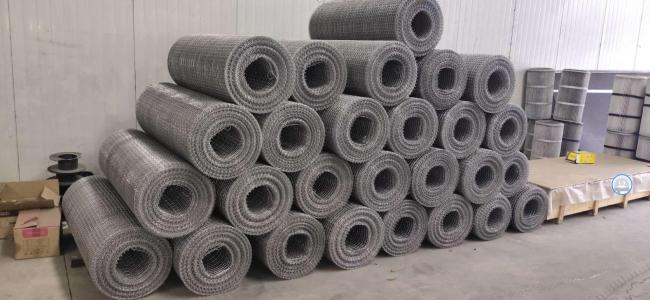

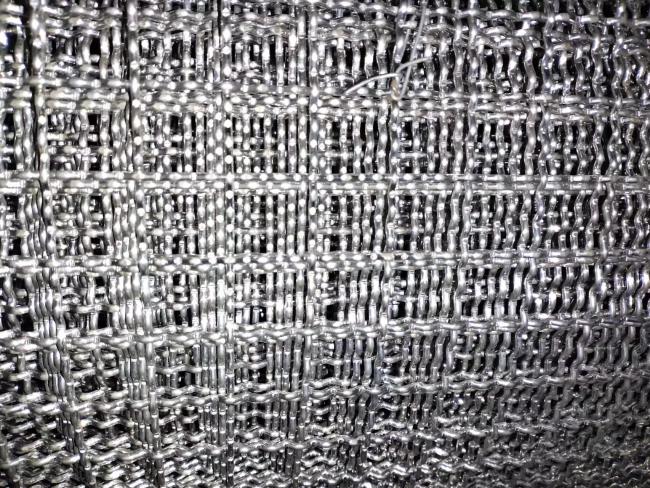

Aluminum crimped wire mesh

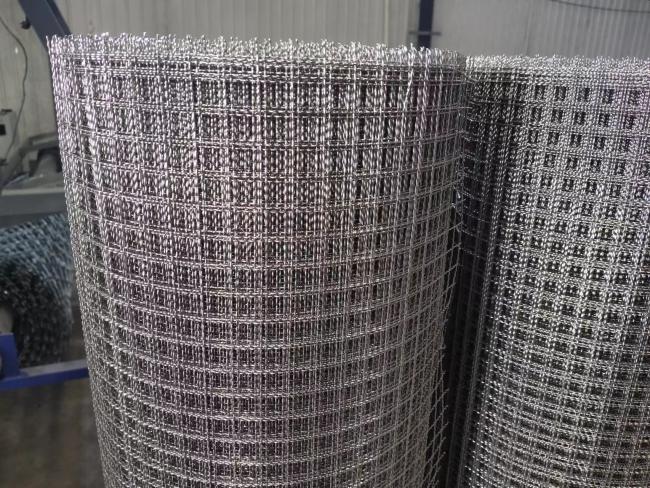

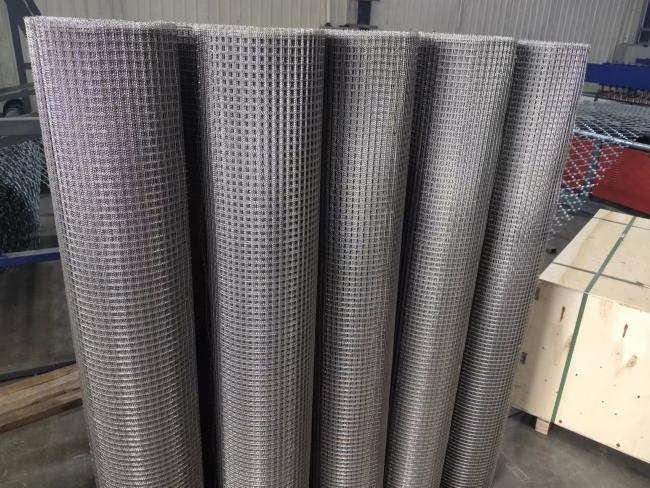

stainless steel crimped wire mesh

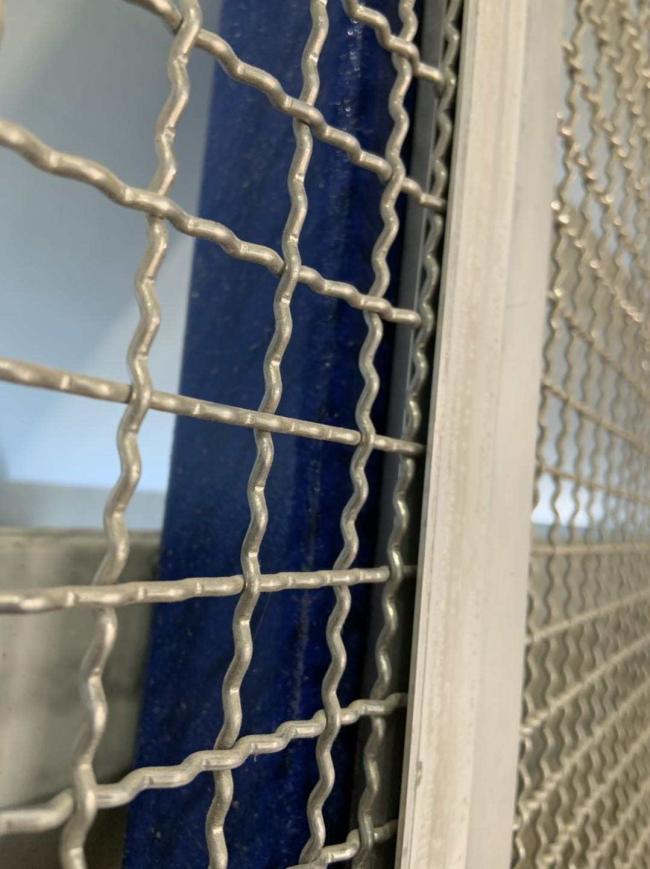

Aluminum Crimped wire Mesh
