500mm Diameter Bto-30 Flat Wrap Razor Wire Barrier Form

Price Negotiable
Price: Discuss
MOQ: 1 set
Delivery Time: within 30 days
Brand: QiJie
Product Description

500mm Diameter Flat Wrap Razor Wire Provides Neat And Unobtrusive Barrier Form



Flat wrap razor wire is fabricated by using single strand razor wire which is then clipped to create flat sheet in vertical direction. The flat wrap coil can be used to upgrade any existing fence or brick wall, which is an ideal alternative to common concertina razor wire where high security is required but with space restriction.



Flat razor wire

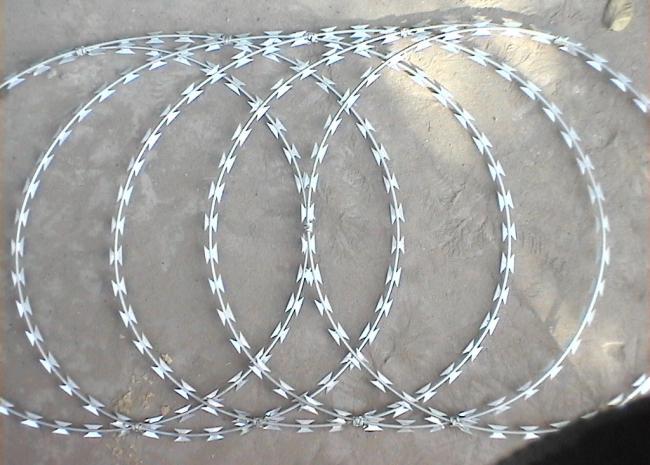

Flat razor wire is made of carbon steel or stainless steel, which has good hardness, rigidity, and longer service life. It is transformed from the single coil concertina wire. We can also intersect various rolls of flattened single coil concertina wire and then fasten them with clips or tie wires. It can be used individually or combined with other fences to form an security wall for various sites fencing.

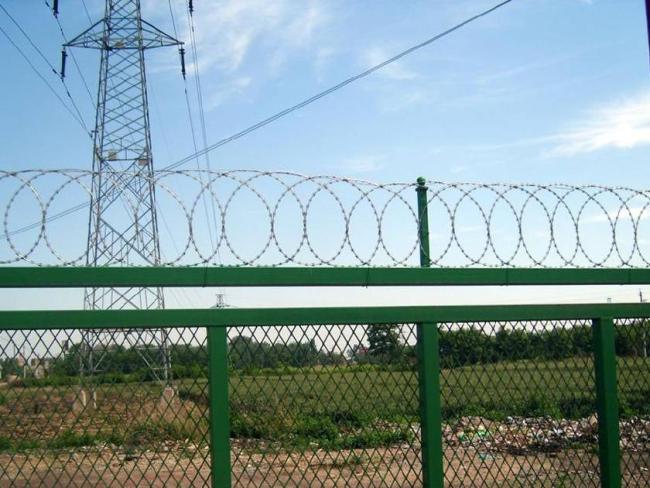

The razor wire flatwrap is a flat spiral coil formed by clipping the concertina razor wire loops. This flattened wire is mainly used as fencing/ barrier lines mounted on existing metal fence tops. Standard height is 450mm, 730mm and 980mm, or 500mm, 700mm, 900mm. Various sizes available.



The flat razor wire strips or ribbons stay within the overall dimensions of the fencing and looks less aggressive. It is preferable for most public places security fencing applications.



features:

  • Difficult to cut with standard tools.
  • Neat and unobtrusive mesh form.
  • Constructed from corrosion resistant galvanized steel or stainless steel for long service life.
  • No maintenance cost.

Specification

  • Blade Type:BTO-10, BTO-22, BTO-30.

  • Overall Diameter:450 mm, 600 mm, 700 mm, 900 mm, 1000 mm.

  • Length:15 meters.

 Details:
Core Wire Diameter : Ø 2,50 mm
Blade Type : BTO 12
Tape Thickness: 0,50 mm
Galvanization Rate : 200 gr / m² ( min. )
Tensile Strenght : 160 kg / mm² ( min. )
Loops : 55 Loops

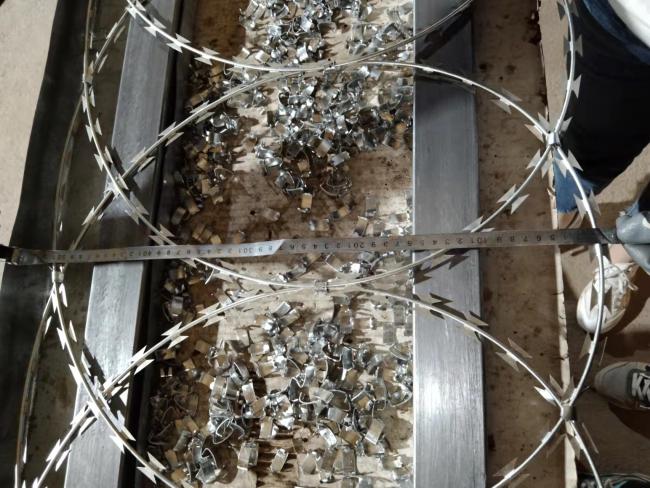

Clips : 5 Clips / Loop



Standard Flatwrap Razor Barb Wire Coil Sizes

Height Length Weight
500 mm (20 in) 15 m (50 ft) 9.5 kg (21 lbs)
700 mm (28 in) 15 m (50 ft) 13 kg (29 lbs)
900 mm (36 in) 15 m (50 ft) 14.5 kg (32 lbs)

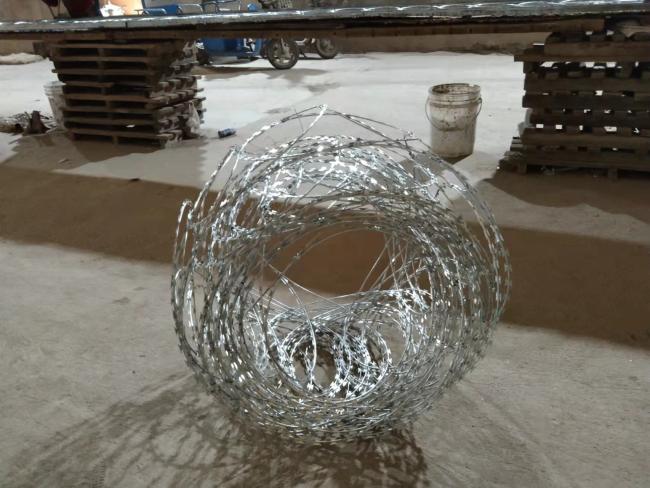

flat wrape razor wire



flat wrape razor wire



flat wrape razor wire



flat wrape razor wire
